Danfoss vlt aqua Instruction

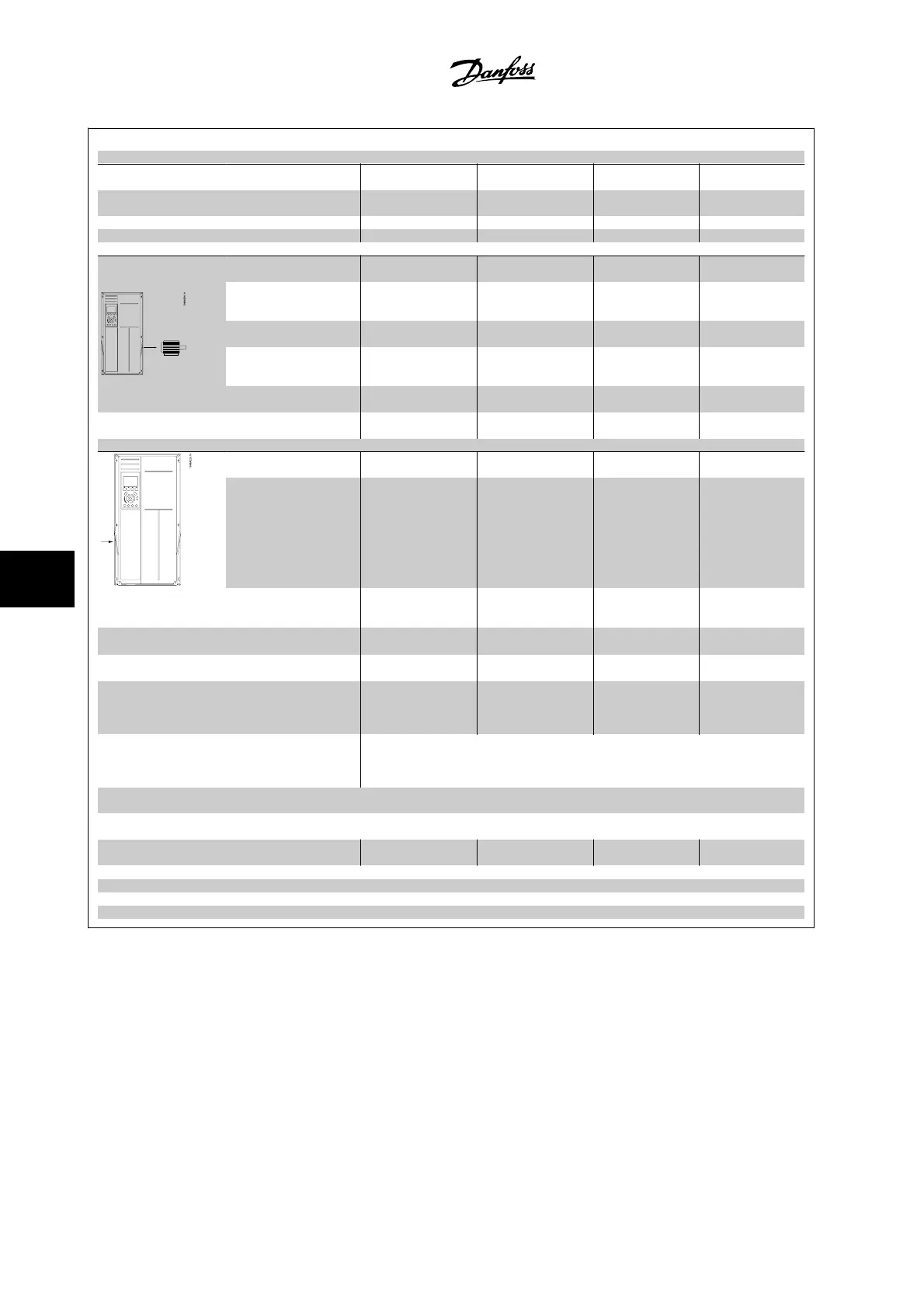

Line Power Supply 3 x 380–480 V AC
P315 P355 P400 P450
Typical Shaft output at 400
V [kW]
315 355 400 450
Typical Shaft output at 460
V [HP]
450 500 600 600
Enclosure IP21 E7 E7 E7 E7
EnclosureIP54 E7 E7 E7 E7
Output current
Continuous
(at 400 V) [A]
600 658 745 800
Intermittent (60 sec over-
load)
(at 400 V) [A]
660 724 820 880
Continuous
(at 460/ 480 V) [A]
540 590 678 730
Intermittent (60 sec over-
load)
(at 460/480 V) [A]
594 649 746 803
Continuous KVA
(at 400 V) [KVA]
416 456 516 554
Continuous KVA
(at 460 V) [KVA]
430 470 540 582
Max. input current
Continuous
(at 400 V) [A]
590 647 733 787
Continuous
(at 460/ 480 V) [A]
531 580 667 718
Max. cable size, line pow-
er, motor and load share
[mm
2
(AWG
2)
)]
4x240
(4x500 mcm)
4x240
(4x500 mcm)
4x240
(4x500 mcm)
4x240
(4x500 mcm)
Max. cable size, brake
[mm
2
(AWG
2)
)
2 x 185
(2 x 350 mcm)
2 x 185
(2 x 350 mcm)
2 x 185
(2 x 350 mcm)
2 x 185
(2 x 350 mcm)
Max. external pre-fuses
[A]
1
700 900 900 900
Estimated motor power
loss
at rated max. load [W]
4)
,
400 V
6704 7528 8671 9469
Estimated motor power
loss
at rated max. load [W]
4)
,
460 V
5930 6724 7820 8527
Estimated filter losses, 400
V
6607 7049 7725 8234
Estimated filter losses, 460
V
6670 7023 7697 8099
Weight,
enclosure IP21, IP 54 [kg]
596 623 646 646
Efficiency
4)
0.96
Output frequency 0–600 Hz
Heatsink overtemp. trip
230°F [110°C]
Power card ambient trip 154.4°F [68°C]
8 General Specifications
VLT AQUA Low Harmonic Drive Instruction
Manual
8-6 MG.20.T1.22 - VLT
®
is a registered Danfoss trademark
8

Danfoss vlt aqua Specifications

General

Supply Voltage	200-240V, 380-500V, 525-600V
Enclosure	IP20
Features	Energy optimization
Approvals	CE, UL, cUL
Input Voltage Range	200-240V, 380-500V, 525-600V
Output Voltage Range	0 to supply voltage
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short circuit, Ground fault
Communication Interfaces	PROFIBUS
Cooling Method	Air-cooled
