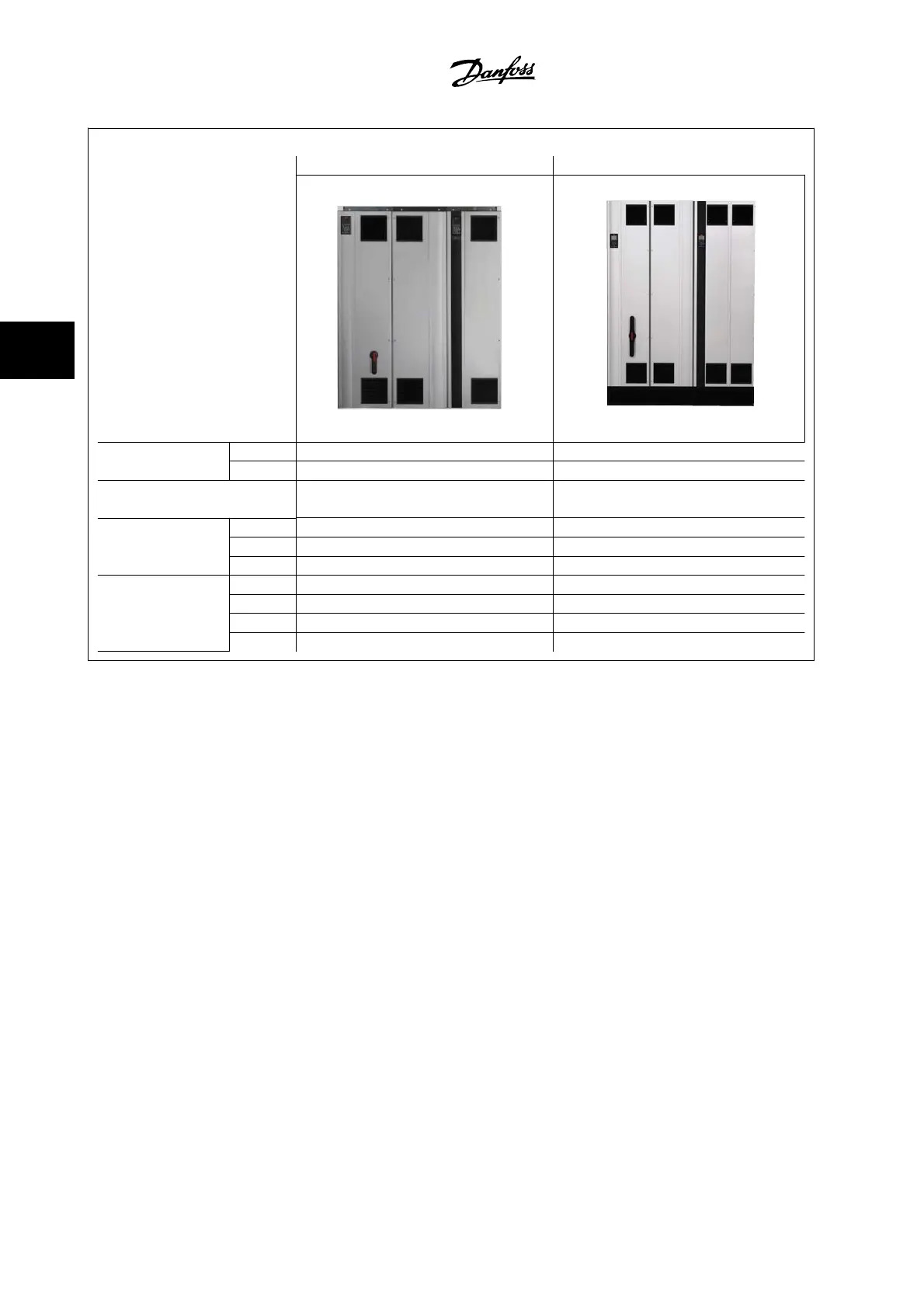

Mechanical Dimensions and Rated Power
Frame size D11 E7
130BB403.10
Enclosure protection
IP 21/54* 21/54*
NEMA Type 1 Type 1
Normal overload rated power -
110% overload torque
250–350 HP [160–250 kW] at 400 V
(380–480 V)
450–600 HP [315–450 kW] at 400 V
(380–480 V)
Shipping Dimensions Height 67.4 in [1712 mm] 76.5 in [1942 mm]
Width 49.7 in [1261 mm] 56.7 in [1440 mm]
Depth 40 in [1016 mm] 40 in [1016 mm]
Drive Dimensions Height 68.9 in [1750 mm] 2000
Width 49.6 in [1260 mm] 1440
Depth 14.96 in [380 mm] 494
Max Weight 895 lbs [406 kg] 1424 lbs [646 kg]
4 How to Install
VLT AQUA Low Harmonic Drive Instruction
Manual
4-10 MG.20.T1.22 - VLT
®
is a registered Danfoss trademark
4
