Ref
MAX
and Ref
MIN
. Afterwards, the value is added to Ref
MIN

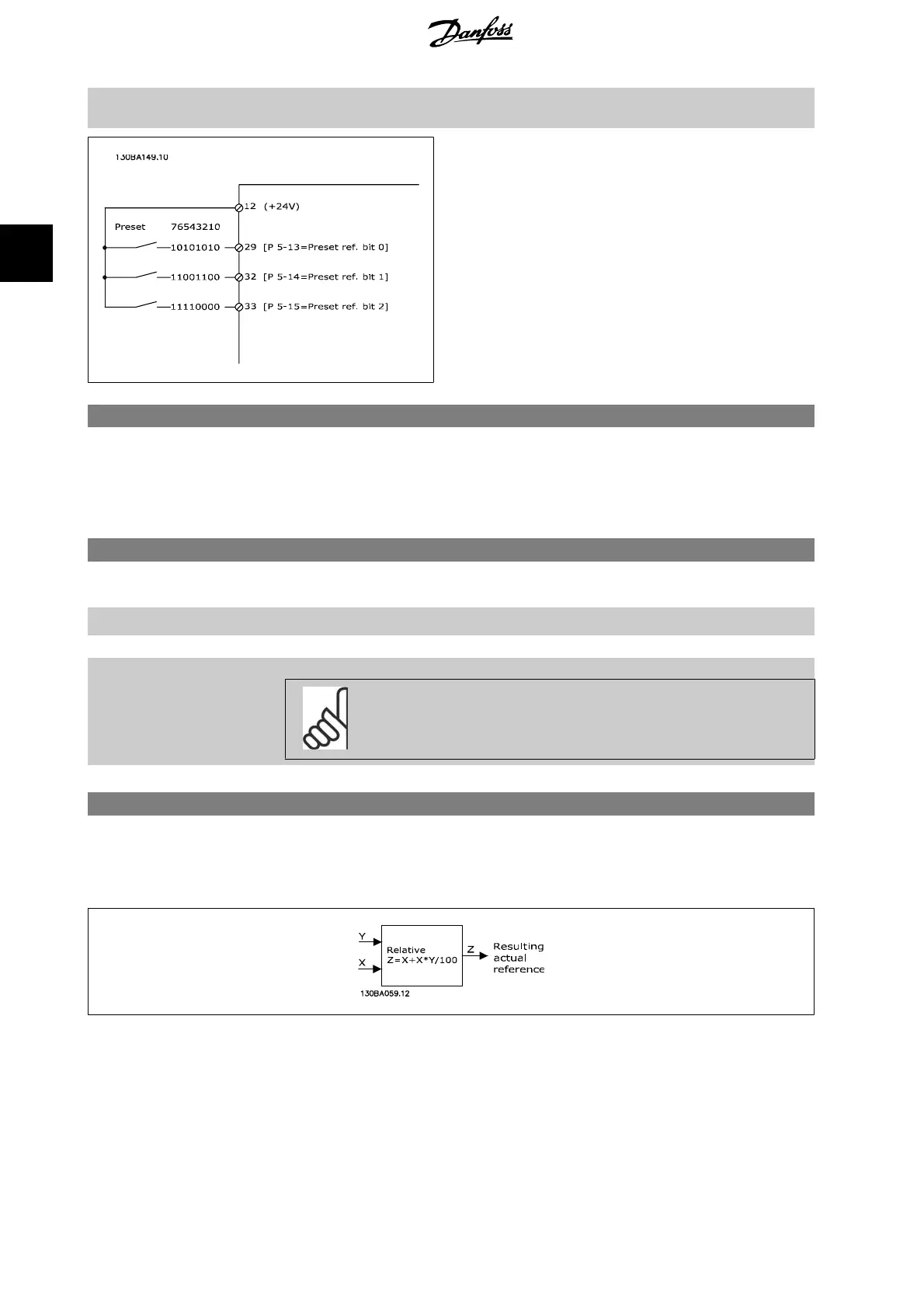

. When using preset references, select Preset ref. bit
0 / 1 / 2 [16], [17] or [18] for the corresponding digital inputs in parameter group 5.1* Digital Inputs.
3-11 Jog Speed [Hz]
Range: Function:
Size related * [0 - 1000 Hz]
The jog speed is a fixed output speed at which the frequency converter is running when the jog function is
activated.
See also par. 3-80.
3-13 Reference Site
Option: Function:
Select which reference site to activate.
[0]
*
Linked to Hand / Auto Use local reference when in Hand mode; or remote reference when in Auto mode.
[1] Remote Use remote reference in both Hand mode and Auto mode.
[2] Local Use local reference in both Hand mode and Auto mode.
NB!
When set to Local [2], the frequency converter will start with this setting again following a
'power down'.
3-14 Preset Relative Reference
Range: Function:
0% * [-200 to +200 %]
The actual reference, X, is increased or decreased with the percentage Y, set in par. 3-14. This results in the
actual reference Z. Actual reference (X) is the sum of the inputs selected in par.3-15,
Reference Source 1 , par.
3-16
Reference Source 2 , par. 3-17 Reference Source 3 , and par. 8-02 Control Word Source .
3. Parameter Description VLT
®
HVAC Drive Programming Guide
54 MG.11.C5.02 - VLT
®
is a registered Danfoss trademark
3
