[31] Ext. Closed Loop 2
[32] Ext. Closed Loop 3
3-17 Reference 3 Source
Option: Function:
Select the reference input to be used for the third reference signal. Par. 3-15, 3-16 and 3-17 define up to three
different reference signals. The sum of these reference signals defines the actual reference.
This parameter cannot be adjusted while the motor is running.
[0]
*
No function
[1] Analog input 53
[2] Analog input 54
[7] Frequency input 29
[8] Frequency input 33
[20] Digital pot.meter
[21] Analog input X30-11
[22] Analog input X30-12
[23] Analog Input X42/1
[24] Analog Input X42/3
[25] Analog Input X42/5
[30] Ext. Closed Loop 1
[31] Ext. Closed Loop 2
[32] Ext. Closed Loop 3
3-19 Jog Speed [RPM]
Range: Function:
300 RPM
*
[0 - 60000 RPM]
Enter a value for the jog speed n
JOG
, which is a fixed output speed. The frequency converter runs at this speed
when the jog function is activated. The maximum limit is defined in par. 4-13
Motor Speed High Limit (RPM
).
See also par. 3-80.

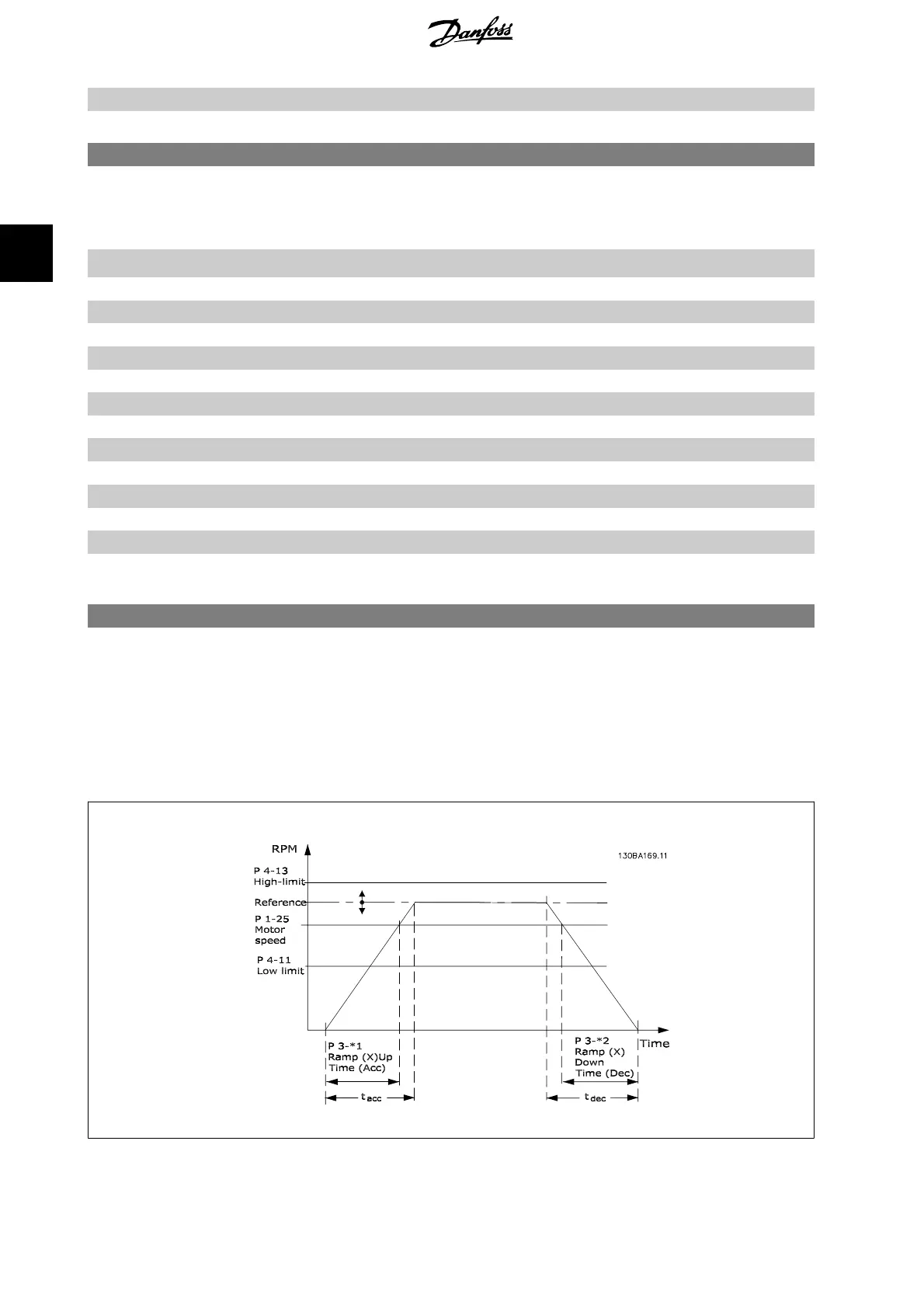

3.5.3. 3-4* Ramp 1
Configure the ramp parameter, ramping times, for each of the two ramps (par. 3-4* and 3-5*).
3. Parameter Description VLT
®
HVAC Drive Programming Guide
56
