7.8.3 DC Bus Dimensions
130BE751.10
105.5
(4.15)
236
(9.3)
126
(4.9)
95
(3.7)

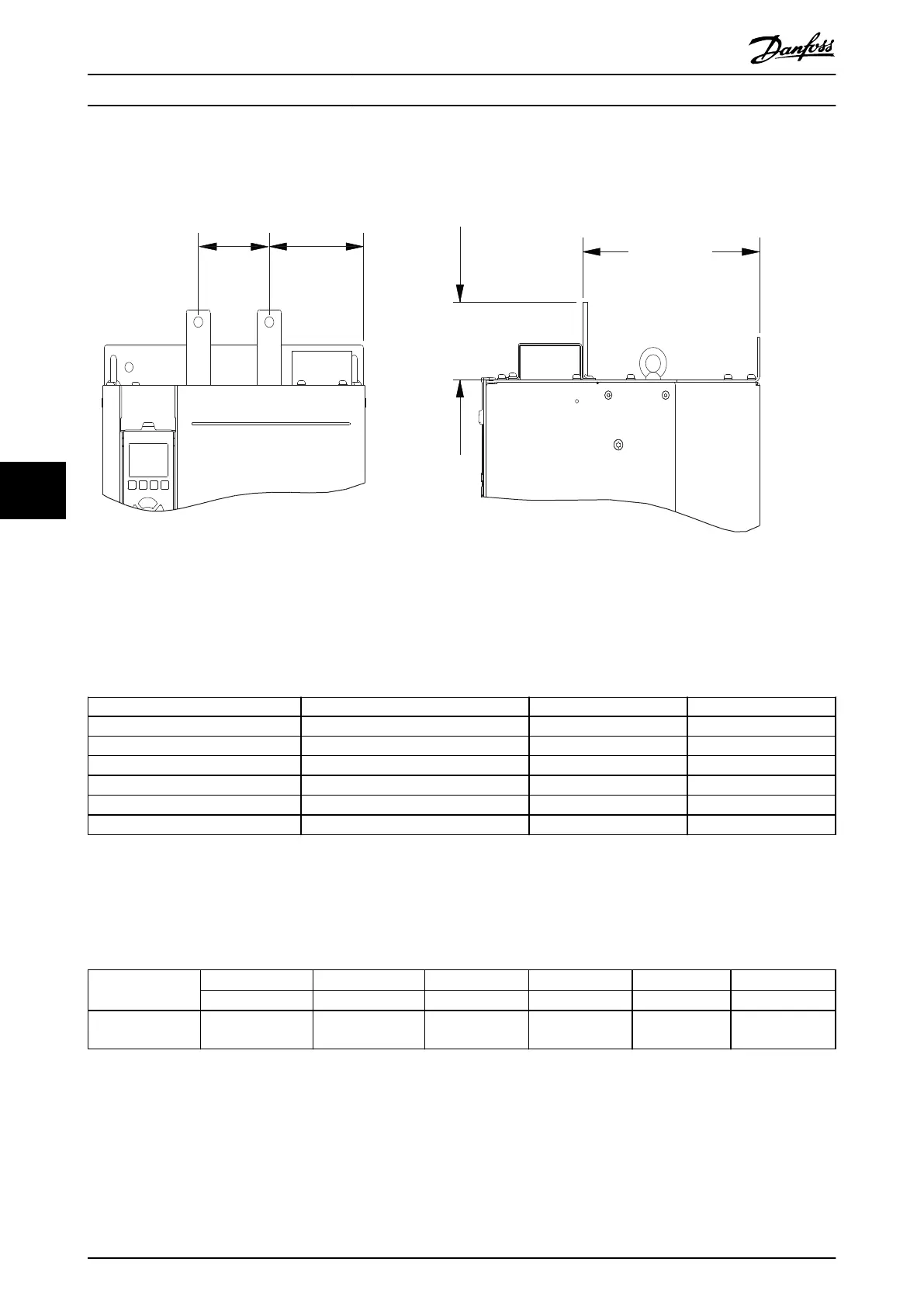

Illustration 7.5 DC Bus Dimensions (Front and Side Views)
7.9 Fastener Tightening Torques
For fastening hardware described in this manual, use the torque values in Table 7.16. These torque values are not intended
for fastening IGBTs. See the instructions included with those replacement parts for the correct torque values.
Shaft size Driver size Torx/hex Torque (N · m) Torque (in-lb)
M4 T20 Torx/7 mm hex 1.0 9
M5 T25 Torx/8 mm hex 2.3 20
M6 T30 Torx/10 mm hex 4.0 35
M8 T40 Torx/13 mm hex 9.6 85
M10 T50 Torx/17 mm hex 19.1 169
M12 (hex bolts only) 18 mm or 19 mm hex 19.1 169
Table 7.16 General Tightening Torques of Fasteners
7.9.1 Tightening Torques for Terminals
For fastening terminals, use the torque values in Table 7.17.
Mains Motor Regen Load sharing Ground Brake
Bolt size
M10 M10 M10 M10 M8 M8
Torque [N · m
(in-lb)]
19–40 (168–354) 19–40 (168–354) 19–40 (168–354) 19–40 (168–354)
8.5–20.5
(75–181)
8.5–20.5 (75–181)
Table 7.17 Tightening of Terminals
Specications
VLT
®
Parallel Drive Modules
66 Danfoss A/S © 08/2017 All rights reserved. MG37K302
77

Danfoss vlt FC 102 Specifications

General

Category	DC Drives
Model	Danfoss VLT FC 102
Output voltage range	0 to rated motor voltage
Power range	0.37 kW to 200 kW
Communication interfaces	RS-485
Protection features	Overvoltage, undervoltage, overcurrent, short circuit, earth fault, overtemperature, motor thermal protection
Cooling method	Air-cooled
Enclosure rating	IP20, IP21, IP55 (depending on model)
Approvals	CE, UL, cUL
