5.1.5. How to Connect a PC to the FC 100
To control or program the adjustable frequency drive from a PC, install the MCT 10 Set-up soft-
ware.

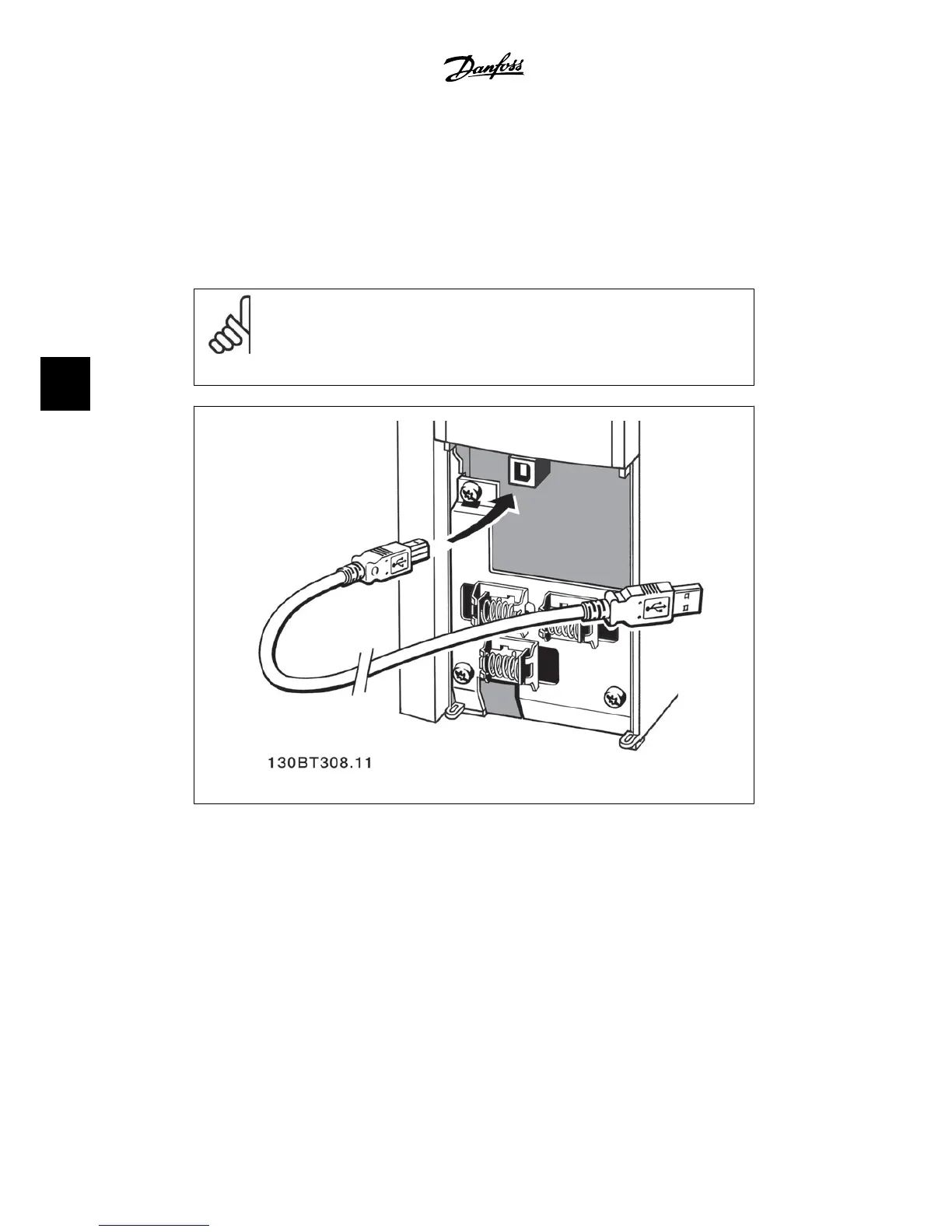

The PC is connected via a standard (host/device) USB cable, or via the RS-485 interface as shown
in the
VLT
®
HVAC Drive Design Guide, chapter How to Install > Installation of misc. connec-
tions
.
NOTE
The USB connection is galvanically isolated from the supply voltage (PELV) and other
high-voltage terminals. The USB connection is connected to protection ground on
the adjustable frequency drive. Only use an isolated laptop as the PC connection to
the USB connector on the VLT HVAC Drive.
5.1.6. PC Software tools
PC Software - MCT 10
All adjustable frequency drives are equipped with a serial communication port. Danfoss provides
a PC tool for communication between the PC and the adjustable frequency drive, VLT Motion
Control Tool MCT 10 Set-up software.
MCT 10 Set-up Software
MCT 10 has been designed as an easy-to-use interactive tool for setting parameters in our ad-
justable frequency drives. The software can be downloaded from the Danfoss internet site
http: //www.vlt-software.com .
The MCT 10 Set-up software will be useful for:
5. How to operate the adjustable frequency
drive
VLT
®
HVAC Drive Instruction Manual
58 MG.11.A4.22 - VLT
®
is a registered Danfoss trademark
5

Danfoss VLT HVAC Drive Specifications

General

Type	VLT HVAC Drive
STO (Safe Torque Off)	Yes
Enclosure	IP20
Output Frequency	0-500 Hz
Brake Chopper	Built-in (depending on frame size)
EMC Filter	Built-in (depending on frame size)
Communication	Ethernet
Power Range	0.37 kW to 630 kW
Input Voltage	200-240V, 380-480V, 525-600V
Protection Features	Overload, Overvoltage, Undervoltage, Short Circuit, Ground Fault
Ambient Temperature	-10°C to +50°C (with derating above +40°C)
Storage Temperature	-25°C to +70°C
Relative Humidity	5-95% (non-condensing)
Cooling Method	Air-cooled
