VLT
®
2800 Series

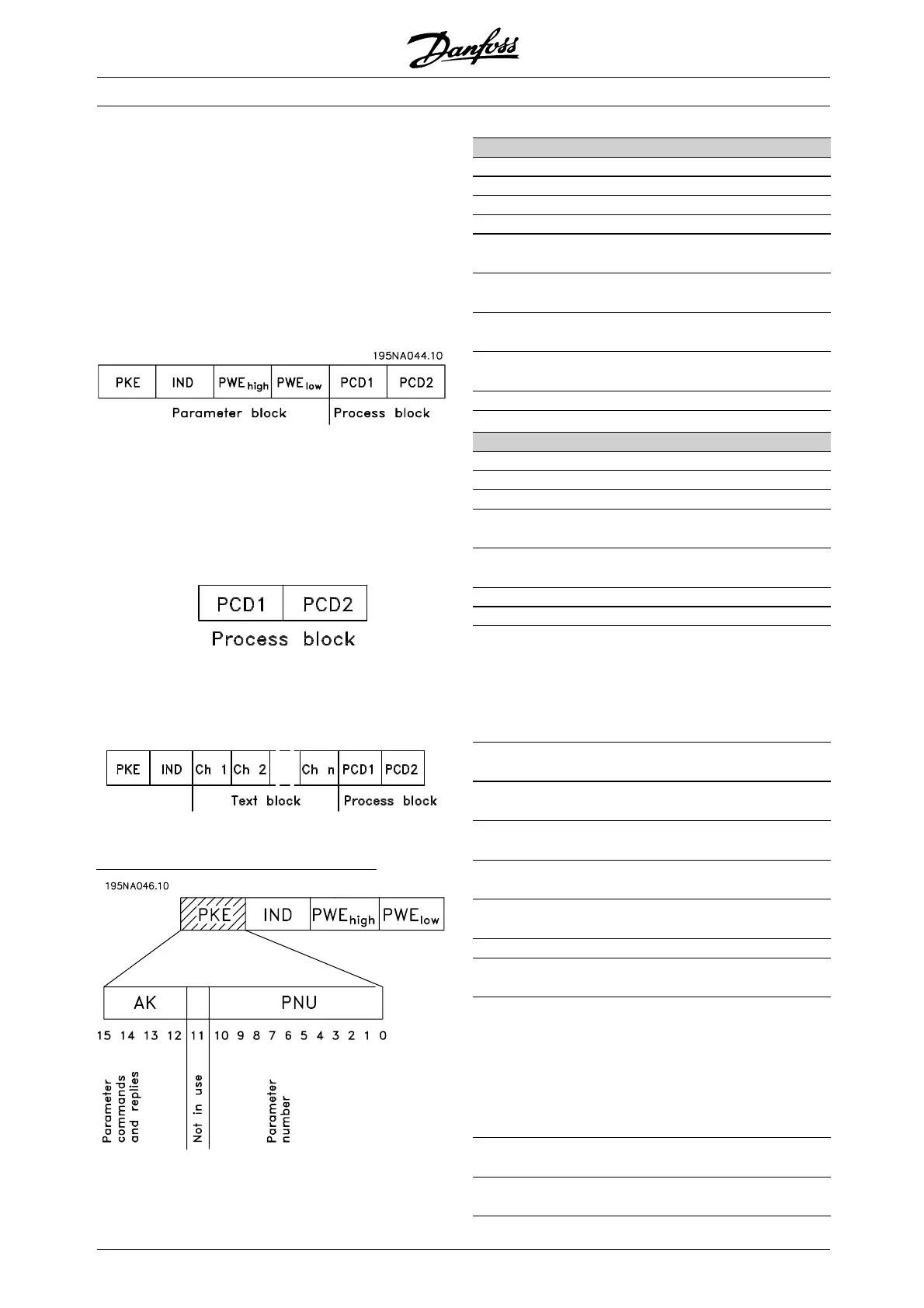

Data Character (byte)
The structure of data blocks depends on the type
of telegram. There are three types of telegram,
and the type of telegram applies for both control
telegrams ( ma sterslave) and response telegrams
(slavemaster). The three types of telegram a re:
- Parameter block, used to transfer parameters
between master and slave. The data block
is made up of 12 bytes (6 words) and also
contains the process block.
- The process block is made up of a data block
of four bytes (2 words) and co ntains:
- C ontrol word and reference value
- Status word and present output frequency
(from slave to master)
- Text block, which is used to read or write
textsviathedatablock.
Parameter commands a nd responses (AK).
Bits no. 12-15 are used to transfer parameter
commands from master to slave and the slaves
processed responses back to the master.
Parameter commands masterslave
Bit no.
15 14 13 12 Parameter comm and
0 0 0 0 No command
0 0 0 1 Read parameter value
0 0 1 0 Write parame ter value in RAM
(word)
0 0 1 1 Write parame ter value in RAM
(double word)
1 1 0 1 Write parame ter value in RAM
and EEprom (double word)
1 1 1 0 Write parame ter value in RAM
and EEprom (word)
1111Read/writetext
Response slavemaster
Bit no. Response
15 14 13 12
0000Noresponse
0 0 0 1 Parameter value transferred
(word)
0 0 1 0 Parameter valu e transferred
(double word)
0 1 1 1 Command cannot be performed
1111Texttransferred
If the command cannot be performed the slave
sends this response: 0111 Command cannot
be performed and gives the following fault report
in the parameter value (PWE):
Response
(0111)
Fault report
0Theparameternumberused
does not exist
1 There is no write access to the
defined parameter
2 Data value exceeds
the param eterslimits
3 The sub index used
does not exist
4 The parameter is not the array type
5 The data type does not match the
defined parameter
17 Data change in the defined para-
meter is not possible in the
frequency
converterspresentmode.
Certain parame ters ca n only be
changed
when the motor is turned off
130 There is no bus access to the
defined parameter
131 Data change is not possible because
factory S etup is selected
MG.28.E9.02 - VLT is a registered Danfoss trademark
110
