VLT
®
2800 Series

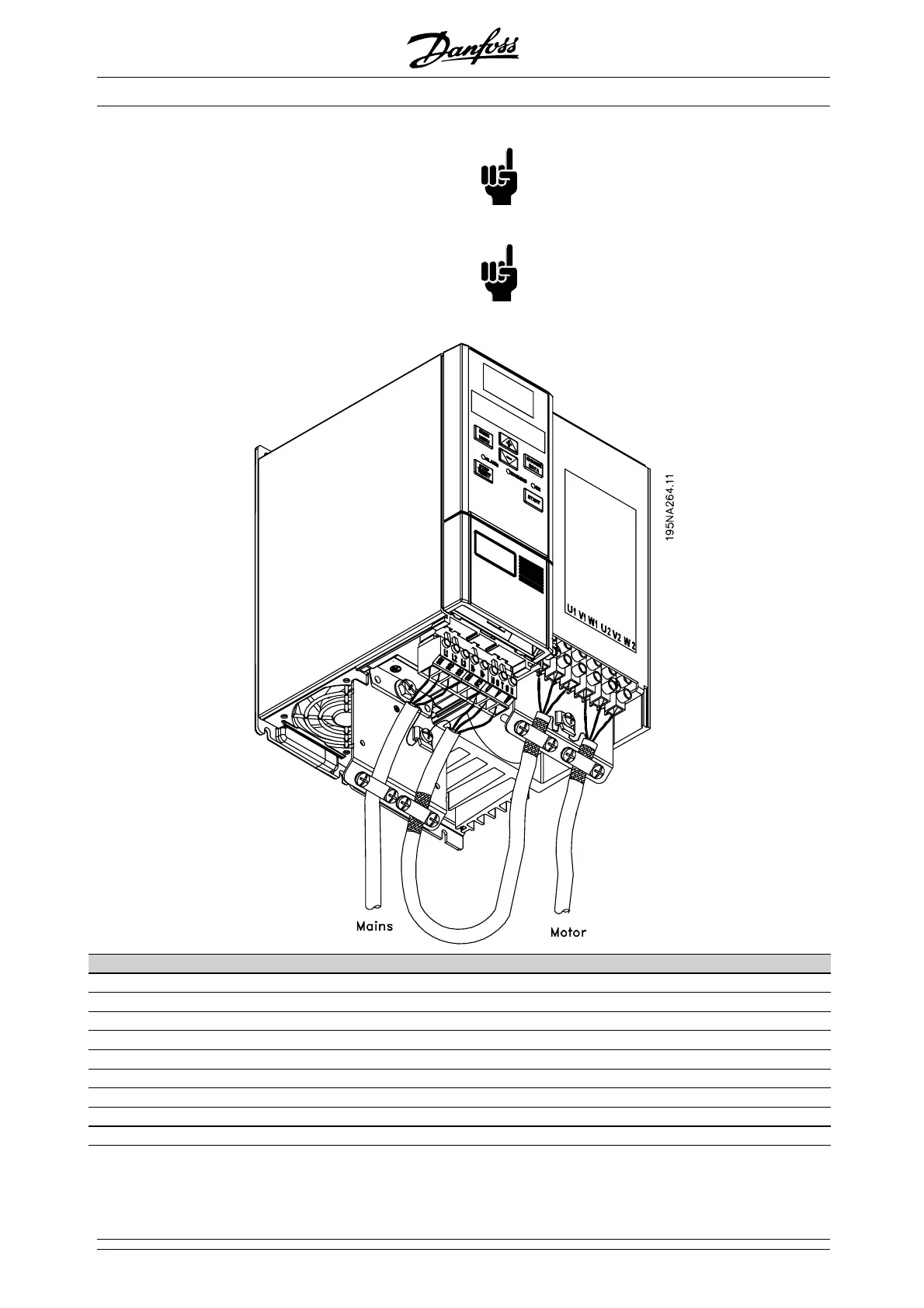

Motor coils
By fitt ing the motor coil module between the frequency
converter and the motor it is possible to use up
to 200 metres of unscreened/unarmoured motor
cable or 100 metres of screened/armoured motor
cable. The motor c oil m odule has an enc losure of
IP 20 and can be installed side-by-side.
NB!:
To have long motor cables and still comp ly
with EN55011-1A, motor coil and EMC filter
for long motor cables are needed.
NB!:
To comply with EN55011-1A the EMC filter for
long motor cables can only be fitted to a VLT
2800 with integral 1A filter (R1 opt ion).
See also the section EMC Emission.
Technical data for VLT 2803-2875 Motor coils
M ax. cable leng th (unscree ned/unarmoured)
1)
200 m
Max. cable length ( screened/armoured)
1)
100 m
Enclosure IP 20
Max. rated current
1)
16 A
Max. voltage
1)
480 V AC
Min. distance between VLT and motor coil Side-by-side
Min. distance above and below motor coil 100 mm
Dimensions H x W x D (mm)
2)
200 x 90 x 152
Weight 3.8 kg
1)
Parameter 411 Switching frequency =4500Hz.
2)
For mechanical dimensions see under
Mechanical d im e nsions.
See ordering number for motor coil module
under Accessories for VLT 2800.
MG.28.E9.02 - VLT is a registered Danfoss trademark
12
