VLT
®
2800 Series

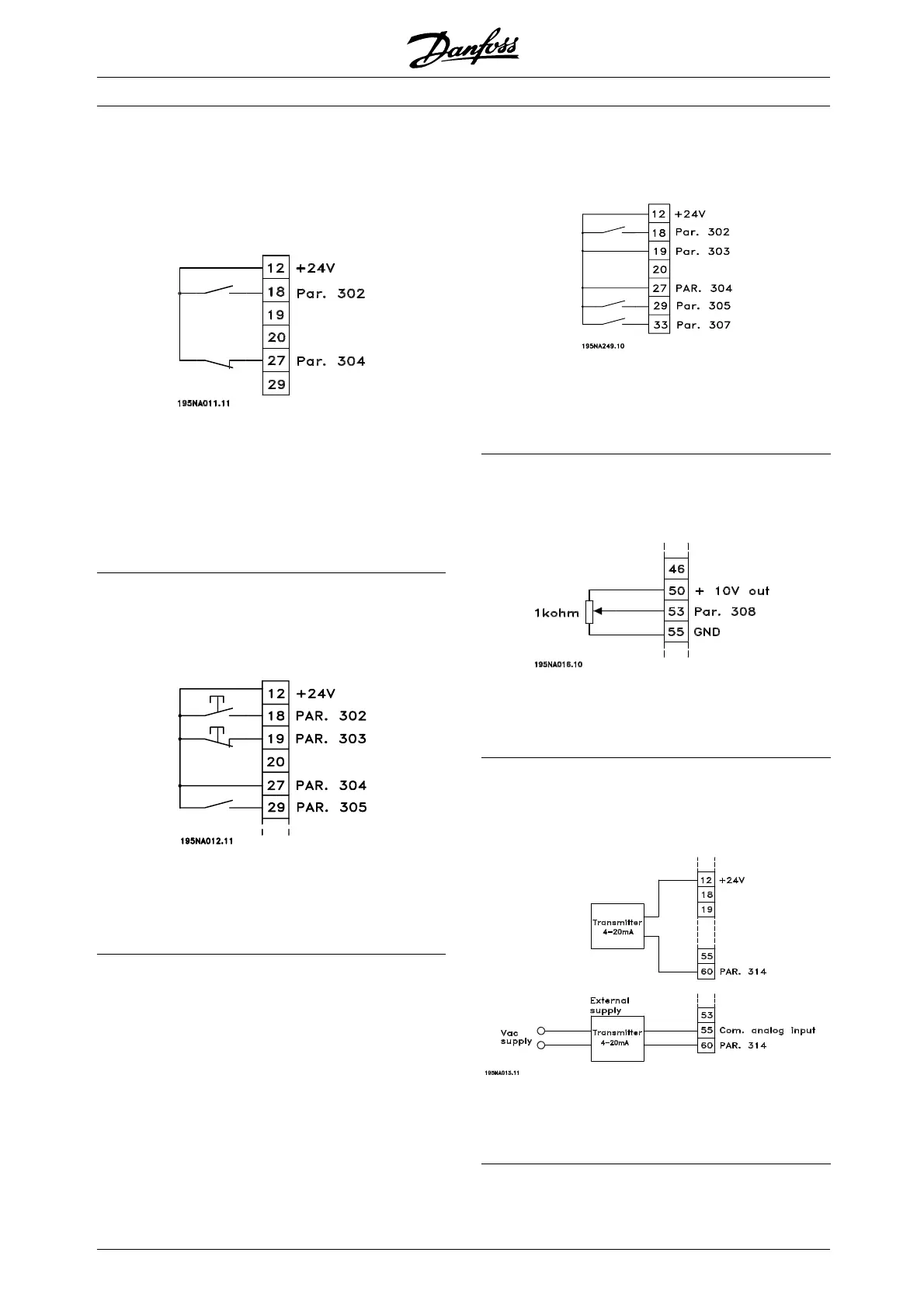

■ Connection examples
■ Start/stop
Start/stop using terminal 18 and coasting
stop using terminal 27.
Par. 302 Digital input = Start [7]
Par. 304 Digital input = Coast ing stop inverted [2]
For Precise start/stop the following settings are made:
Par. 302 Digital input = Preci s e start/stop [27]
Par. 304 Digital input = Coast ing stop inverted [2]
■ Pulse start/stop
Pulse start using terminal 18 and pulse stop
using terminal 19. In addition, the jog frequency
is act ivated via terminal 29.
Par. 302 Digital input = Pulse start [8]
Par. 303 Digital input = Stop inverted [6]
Par. 304 Digital input = Coast ing stop inverted [2]
Par. 305 Digital input = Jog [13]
■ Speed up/down
Speed up/down using terminals 29/33.
Par. 302 Digital input = Start [7]
Par. 303 Digital input = Freeze reference [14]
Par. 305 Digital input = Speed up [16]
Par. 307 Digital input = Speed down [1 7]
■ Potentiometer reference
Voltage reference via a potentiometer.
Par. 308 Analog input = Reference [1]
Par. 309 Terminal 53, min. scaling =0Volt
Par. 310 Terminal 53, max. scaling =10Volt
■ Connection of a 2-wire transmitter
Connection of a 2-w ire transmitter as feedback
to terminal 60.
Par. 314 Analog input = Feedback [2]
Par. 315 Terminal 60, min. scaling =4mA
Par. 316 Terminal 6 0 , max. scaling =20mA
■ 4-20 mA reference
4-20 mA reference on terminal 60 and speed
feedback signal on terminal 53.
MG.28.E9.02 - VLT is a registered Danfoss trademark
56
