Danfoss VT2800 Series User Manual

VLT
®
2800 Series
Installation

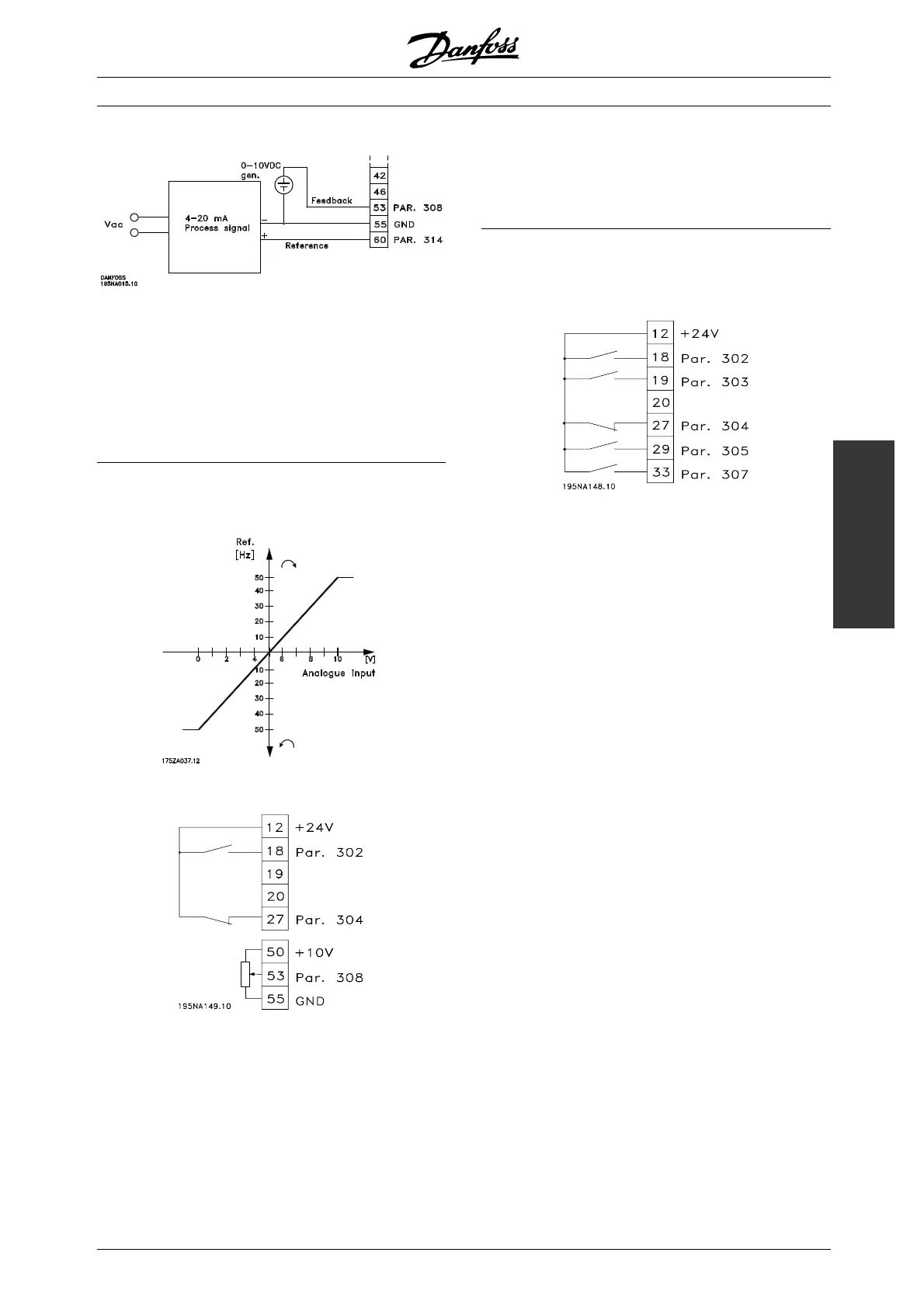

Par. 100 Configuration = Speedclosedloop[1]
Par. 308 Analog input = Feedback [2]
Par. 309 Terminal 53, min. scaling =0Volt
Par. 310 Terminal 53, max. scaling =10Volt
Par. 314 Analog input = Reference [1]
Par. 309 Termina l 60, min. scaling =4mA
Par. 310 Teminal 60, max. scaling =20mA
■ 50 Hz anti-clockwise to 50 Hz clockwise
Par. 100 Configuration = Speed regulation
open loop [0]
Par. 200 Output frequency range = Both
directions, 0-132 Hz [1]
Par. 203 Reference range = Min. ref. - Max. ref. [0]
Par. 204 Min. reference =-50Hz
Par. 205 Max. reference =50Hz
Par. 302 Digital input = Start [7]
Par. 304 Digital input = Coast ing stop inverted [2]
Par. 308 Analogue input = Reference [1]
Par. 309 Terminal 53, min. scaling =0Volt
Par. 310 Terminal 53, max. scaling =10Volt
■ Preset references
Switch between 8 preset references via two digital
inputs and Setup 1 and Setup 2.
Par. 004 Active Setup = Multisetup 1 [5]
Par. 204 Min. reference =0Hz
Par. 205 Max. reference =50Hz
Par. 302 Digital input = Start [7]
Par. 303 Digital input = Choice of Setup, lsb [31]
Par. 304 Digital input = Coast ing stop inverted [2]
Par. 305 Digital input = Preset ref., lsb [22]
Par. 307 Digital input = Preset ref., msb [23]
Setup 1 contains the following preset references:
Par. 215 Preset reference 1 = 5.00%
Par. 216 Preset reference 2 = 10.00%
Par. 217 Preset reference 3 = 25.00%
Par. 218 Preset reference 4 = 35.00%
Setup 2 contains the following preset references:
Par. 215 Preset reference 1 = 40.00%
Par. 216 Preset reference 2 = 50.00%
Par. 217 Preset reference 3 = 70.00%
Par. 218 Preset reference 4 = 100.00%
MG.28.E9.02 - VLT is a registered Danfoss trademark
57
