Danfoss VZH Series - Page 31

Application guidelines
31FRCC.PC.023.A7.22
Single compressorsDimensions

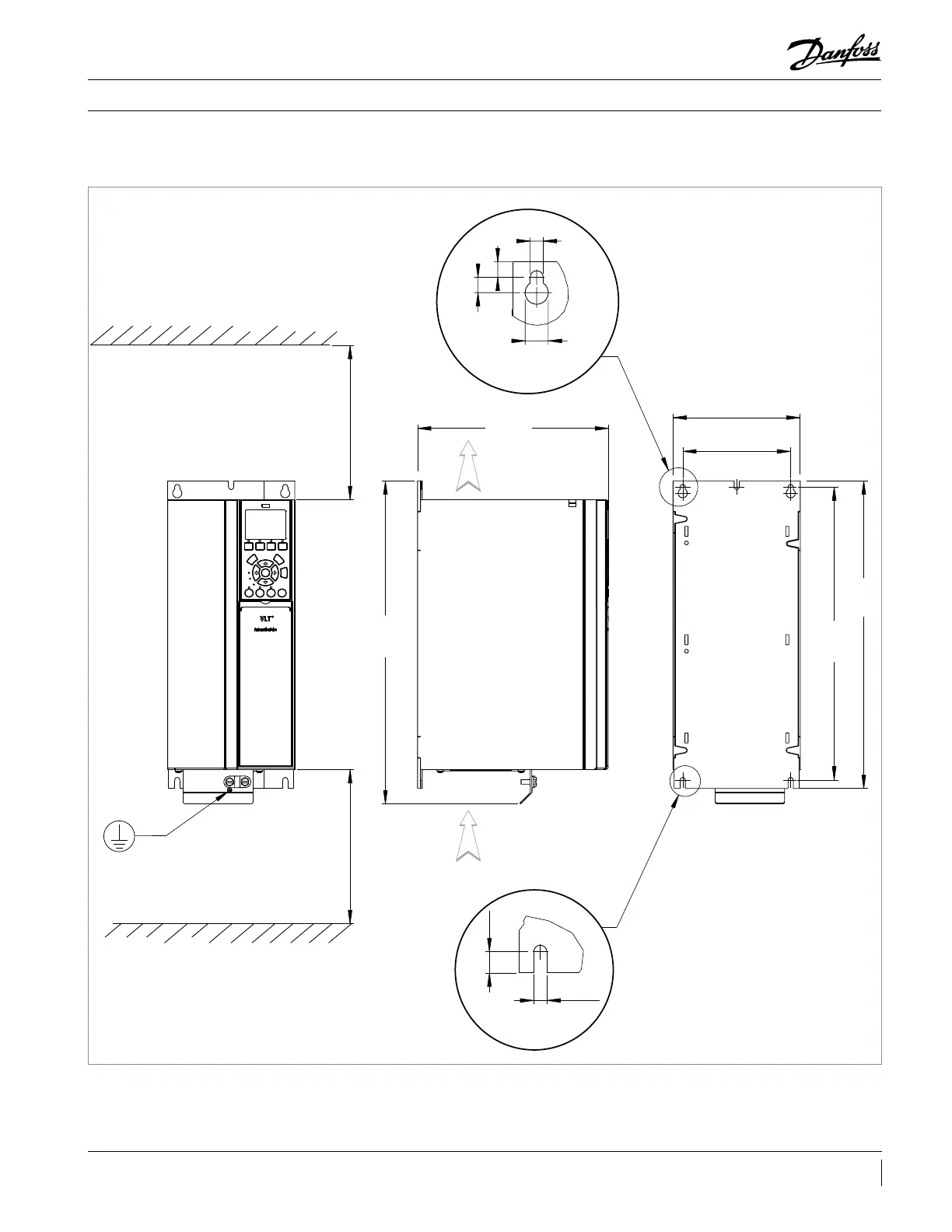

CDS303 frequency converter - enclosure B3
380-480 volts - 15 kW - IP20 housing
Scale 1:2
6.8
(0.27)
6.8
(0.27)
7.9
(0.31)
8
(0.31)
Ø12
(0.47)
Scale 1:2
165 (65)
140 (5.51)
399
(15.71)
380
(14.96)
Mounting base
249
(9.80)
420
(16.53)
Air outlet
Air inlet
Dimensions in mm (inch)
Min 100 (3.94)
Air inlet
Min 100 (3.94)
Air space outlet
