Application guidelines
92 FRCC.PC.023.A7.22

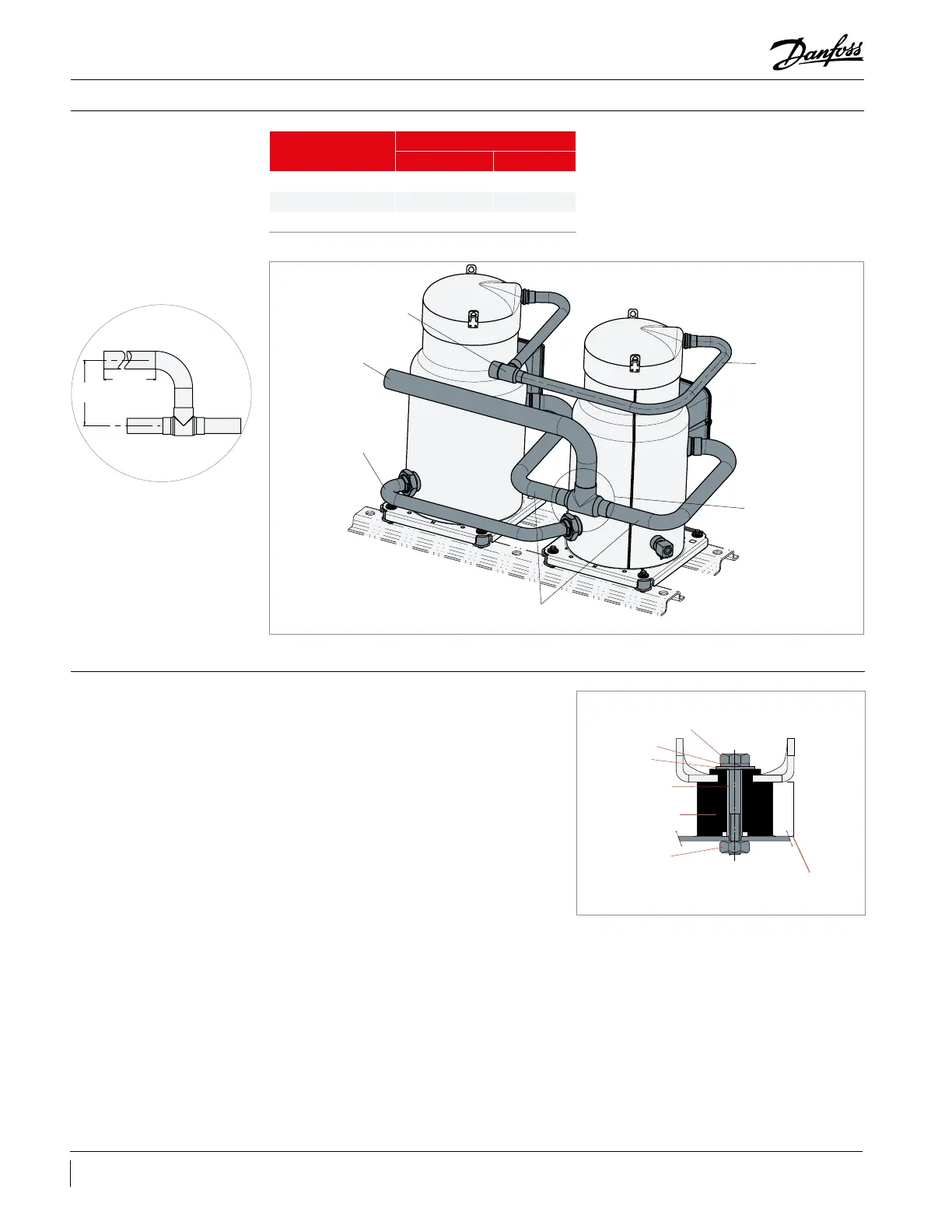

Manifold compressorsVZH170
The tandem is xed on the frame by using rubber
grommets, mounting sleeves, washers(delivered
together with VZH compressor, for SH, to be
ordered from mounting kit 8156138).
Compressor mounting
Tandem model
Composition
Variable speed Fixed speed
VZH170 + SH180 VZH170 SH180
VZH170 + SH240 VZH170 SH240
VZH170 + SH295 VZH170 SH295
Detail A
211
Mini
319 Mini
Composition of VZH170
tandem
1”1/8 (2x)
See
detail A
1”5/8
Oil equalisation
1”3/8
Suction
right 2”1/8
Discharge
right 1”5/8
SH180/
240/295
VZH170
VZH170
0.59 inch
HM 8 bolt
Lock washer
Flat washer
Steel mounting
sleeve
Rubber grommet
Nut
Base plate, rails, etc. with enough rigidity
