Danfoss VZH Series - Vzh088

Application guidelines
87FRCC.PC.023.A7.22
Manifold compressors
VZH088
152
Mini
240 Mini
Detail A

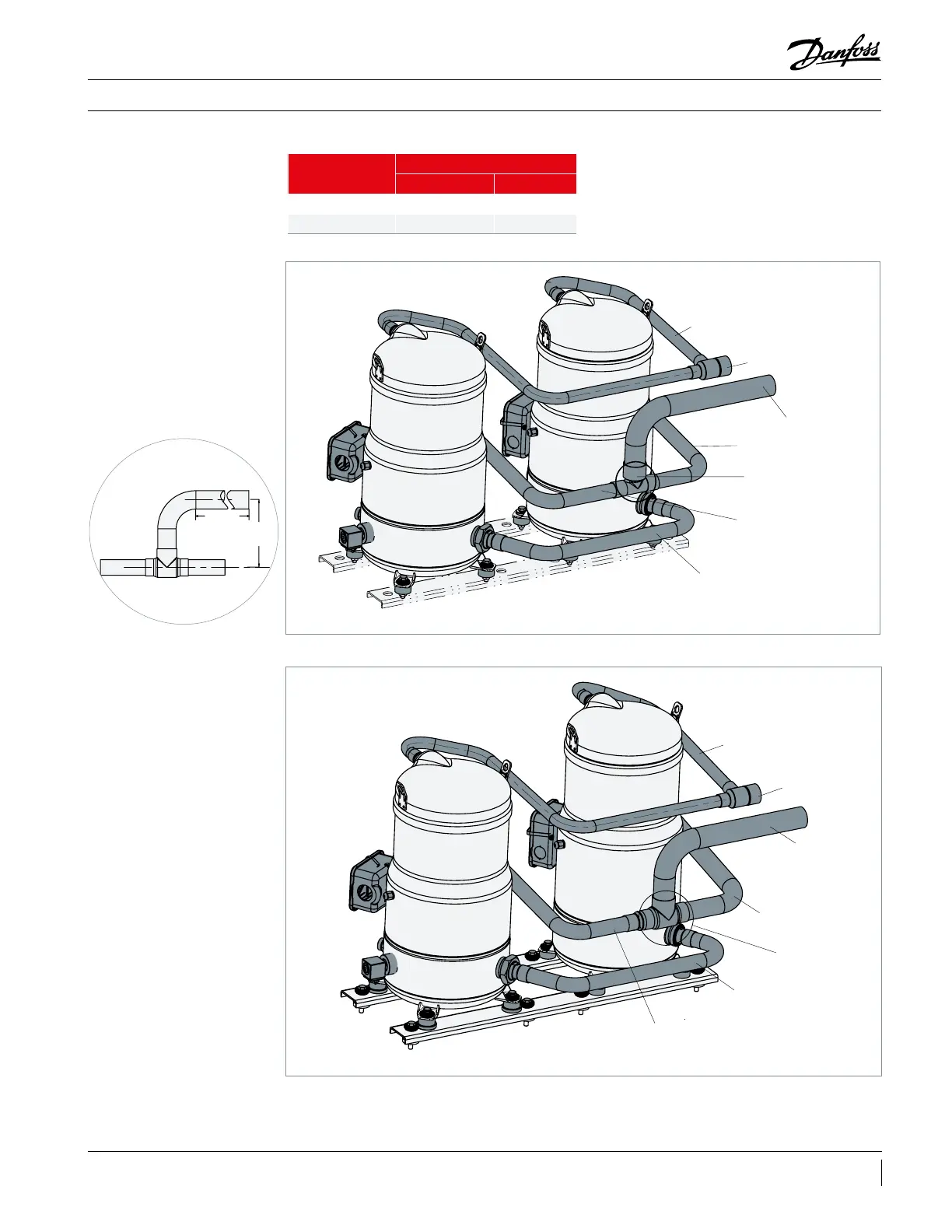

Composition of VZH088
tandem
Tandem model
Composition
Variable speed Fixed speed
VZH088 + SH090 VZH088 SH090
VZH088 + SH120 VZH088 SH120
VZH
SH
Oil equalization
1"1/8
VZH088 + SH090
Suction left
1"5/8
Discharge left
1"3/8
1"1/8
1"1/8
7/8"
See detail A
VZH
SH
1"5/8
1"3/8
1"3/8
See detail A
7/8"
Oil equalization
1"1/8
1"1/8
VZH088 + SH120
