DataCard CD800 Installation And Administrator's Guide

A-8 SD460 Laminating System

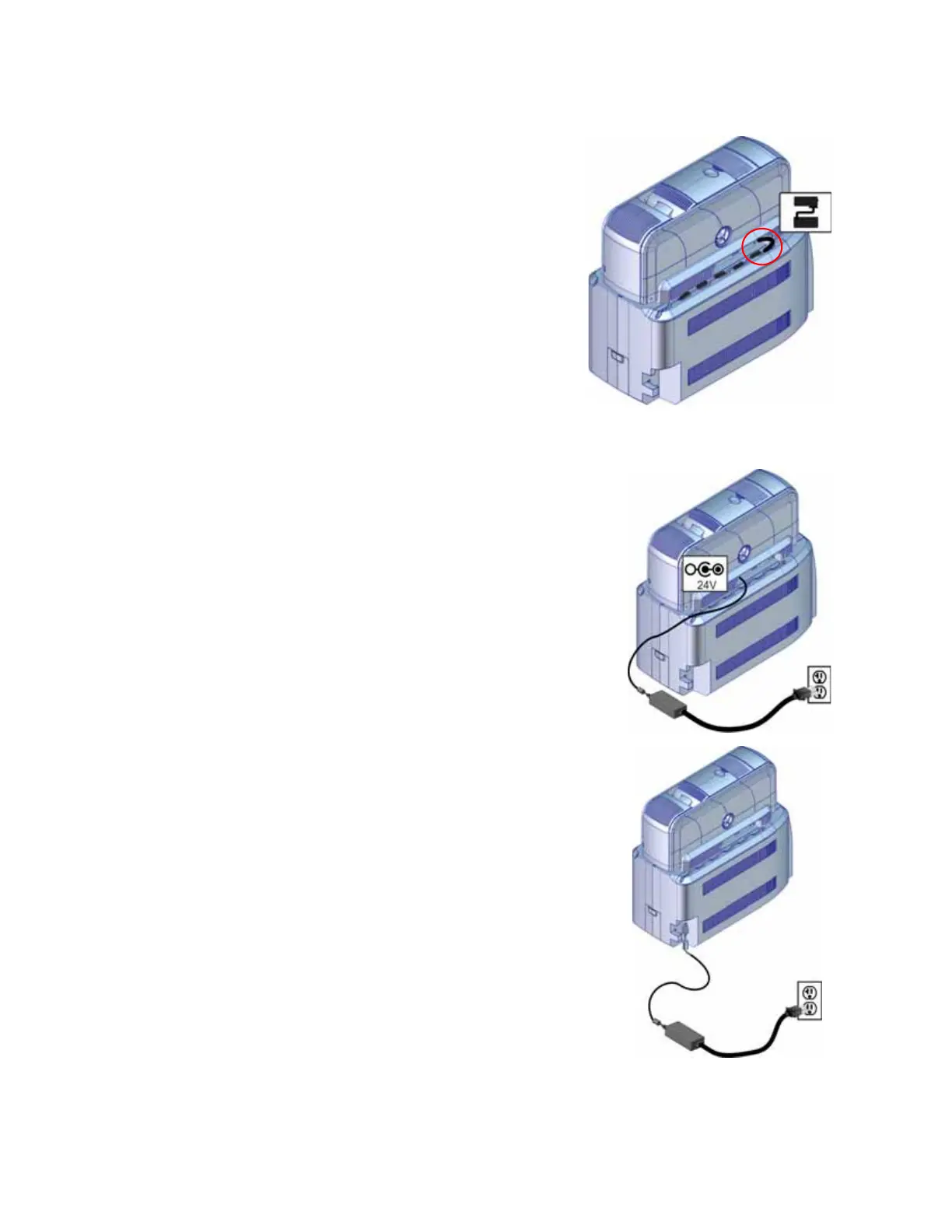

8. Connect the interconnect cable from the laminator to
the lower port on the printer.
Connect the Power Cords
1. Connect the printer power cord to the printer.
2. Plug the power supply cord into the power outlet.
3. Connect the laminator power cord to the laminator and to
the power supply.
4. Plug the power supply cord into the power outlet.

DataCard CD800 Specifications

General

Print Resolution	300 dpi
Weight	12 lbs (5.4 kg)
Power Requirements	100-240 VAC, 50/60 Hz
Print Technology	Dye-sublimation
Card Capacity	100 cards (standard hopper)
Connectivity	USB
Card Size	CR80 (85.6 mm x 54 mm)
Operating System Compatibility	Windows
Card Thickness	0.020" - 0.040" (0.51 mm - 1.02 mm)
