CE870 Instant Issuance System Installation and Administrator’s Guide 11
3. Bolt the embosser to the work surface.
You need the following supplies:
Two 1/4-inch (6 mm) bolts.
The length of the bolts depends on the thickness of the mounting surface. Bolt length
minimum is surface thickness + ¾ inch (20 mm). Bolt length maximum is surface
thickness +1¼ inch (30 mm).
Two 5/8-inch (18 mm) outer diameter
washers.
Two 1/4-inch (6 mm) nuts. Lock nuts
are recommended.
a. Drill holes in the mounting surface
following the dimensions and
requirements shown on the following
page.
b. Insert the bolts.
Note: Make sure that you insert the
bolts inside the embosser pointing
down through the mounting surface.
i. Insert the bolts into the mounting
holes inside the embosser.
ii. Align the bolts with the holes in the table or mounting surface.
iii. Place a flat washer on each of the bolts, under the mounting surface.
c. Secure the embosser using washers and nuts under the mounting surface.

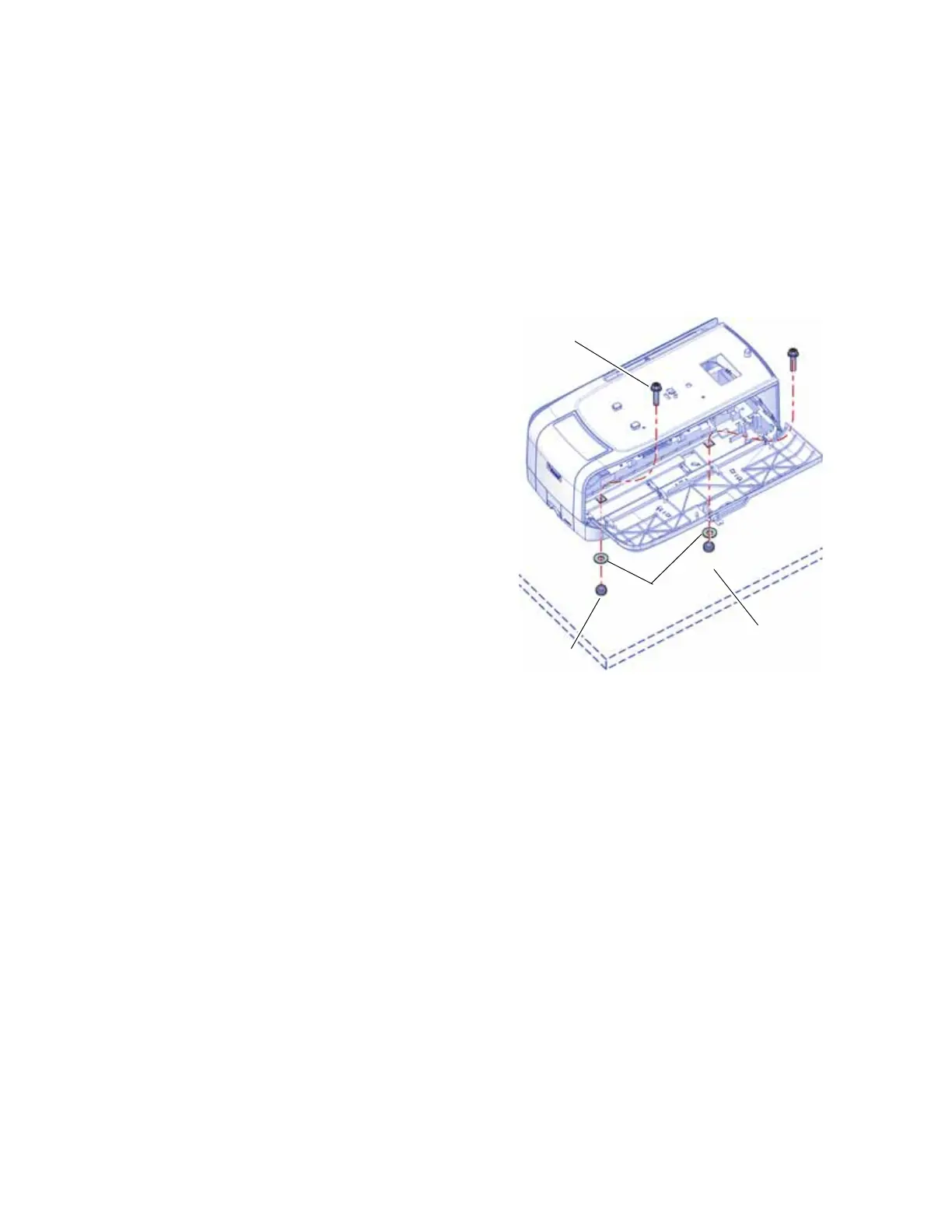

Work
Surface
Lock Nut
Bolt
Washer
To Next Page
