5. If the card is inside the turnover unit, use the jog dials to move it to the reject
tray for removal.
a. Place one jog dial on the lower sha of the card cleaning unit.
b. Place the second jog dial on the sha of the turnover unit.
5a
5b
6. Rotate the turnover unit to the 3 o’clock home posion.
Cauon: Do not force the jog dials when turning them to clear a jam.
7. Rotate the jog dials.
a. Turn the card cleaning unit jog dial counter-clockwise unl the card is
inside the turnover unit and the edge of the card is just clear of the card
cleaning roller.
b. If necessary, push the card toward the print unit while turning the jog
dial.
c. Rotate the turnover unit clockwise to the 4 o’clock posion to angle the
card toward the card reject tray.
8. Turn the card cleaning unit jog dial clockwise unl the card drops into the card
reject tray.
9. When the card jam is cleared, rotate the turnover unit jog dial back to the
3 o’clock posion.
10. Remove both jog dials and return them to their storage locaon inside the
print unit.
11. Return the cards and card weights to the mul-hopper.
12. Close the print unit door.
13. Power on the printer.
14. Close the security enclosure door to lock the printer.
15. On the touch screen, press the User buon to clear the error message.
7a
7b
7c
8
6

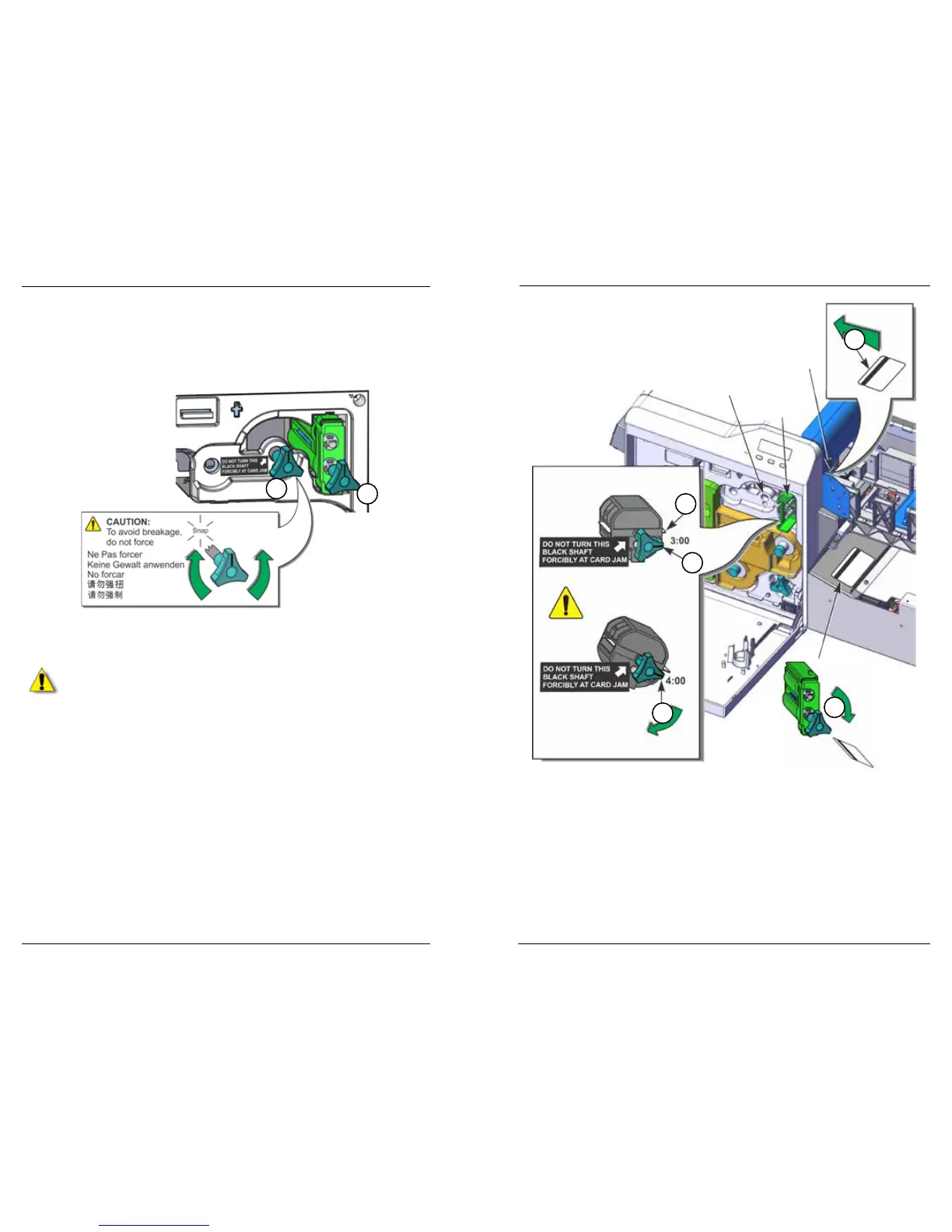

Turnover
Sha
Cleaning
Unit
Card
Input
Turnover Unit
Cleaning
Roller
Card Reject
Tray
To Reject
Tray
