DataCard SD460 User Manual

108 Card Design Tasks

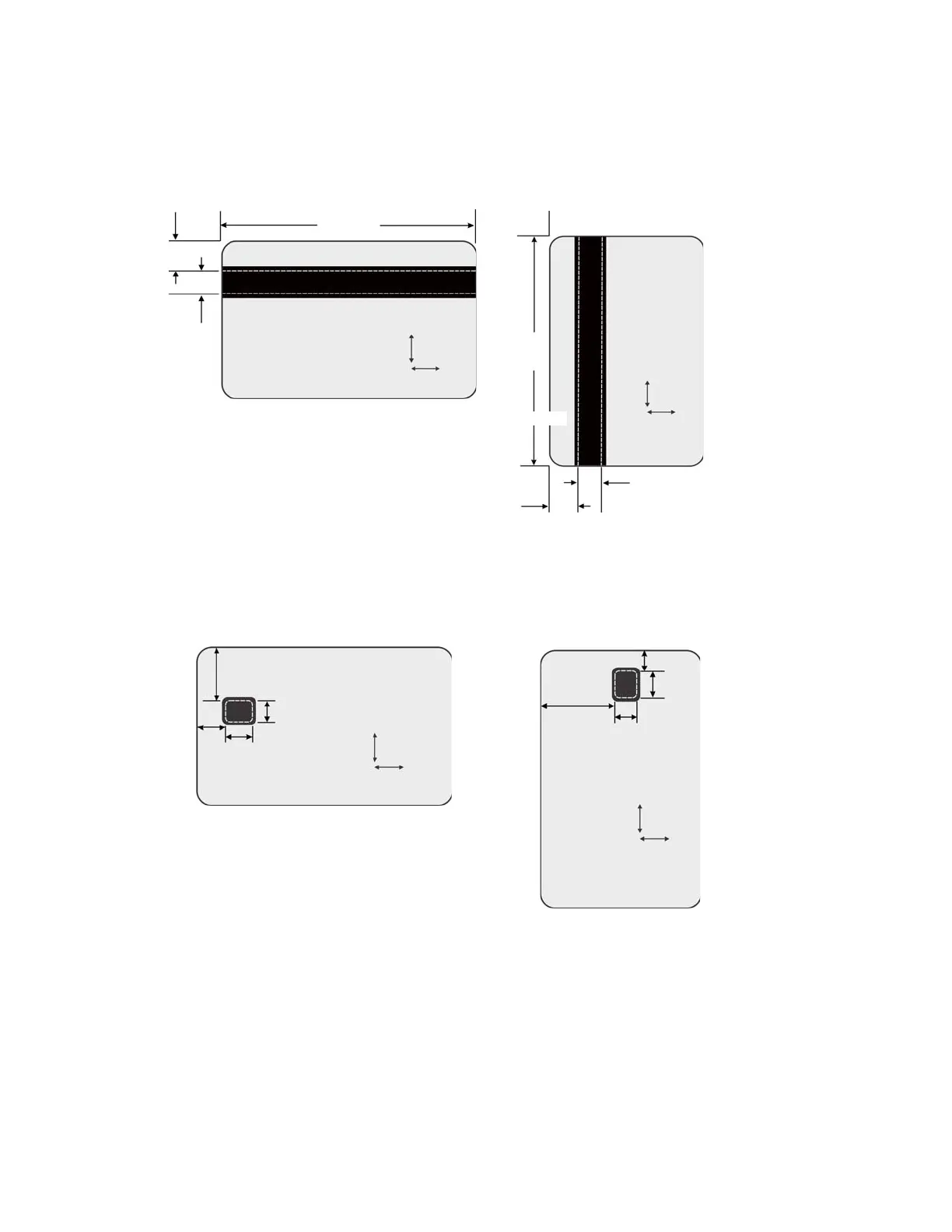

The following example shows retransfer printer print blocking dimensions, and the escape values
to enter, for a three-track magnetic stripe area.
The following illustration shows sample retransfer printer print blocking dimensions, and the
escape values to enter, for a smart card chip. The actual measurements can vary depending on
the size and location of the chip.
n1
n2
n3
n4
n1
n2
n3
n4
Top of card
Left edge
Top of card
Left edge
H
W
H
W
Landscape
n1 = 5.2 mm
n2 = 0
n3 = 86 mm
n4 = 11.3 mm
Portrait
n1 = 0
n2 = 5.2 mm
n3 = 11.3 mm
n4 = 86 mm
Portrait
n1 = 9.5 mm
n2 = 25.5 mm
n3 = 9.5 mm
n4 = 10.5 mm
Landscape
n1 = 19 mm
n2 = 9.5 mm
n3 = 10.5 mm
n4 = 10 mm
n1
n2
Left edge
Top of card
n3
n4
H
W
Left edge
Top of card
n1
n2
n3
n4
H
W

DataCard SD460 Specifications

General

Color	Yes
Card size	85.6 x 53.98 mm
Card types	Magnetic stripe (ISO 7811), PVC, Smart card
Print technology	Dye-sublimation/Resin Thermal transfer
Duplex print speed (color)	200 card/h
Display	LCD
Certification	cULus, FCC, I.C., CE, Ctick, VCCI, RoHS, WEEE, CCC, KCC
Product color	Black, Blue
Internal memory	128 MB
Built-in barcodes	1D, 2D
Total input capacity	100 sheets
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Wi-Fi	No
USB version	2.0
Ethernet interface type	Fast Ethernet
Storage temperature (T-T)	-15 - 60 °C
Operating temperature (T-T)	15 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Weight	13600 g
Dimensions (WxDxH)	589 x 270 x 513 mm
