DataCard SD460 User Manual

XPS Card Printer Driver User’s Guide C-1
Appendix C: Tactile Identifier
Mark Conversion
Embosser font 11 allows you to emboss up to three braille (Tactile Identifier Mark or TIM)
characters on a card. Braille uses a 6-dot format to represent letters, numbers, and combinations
of sounds.

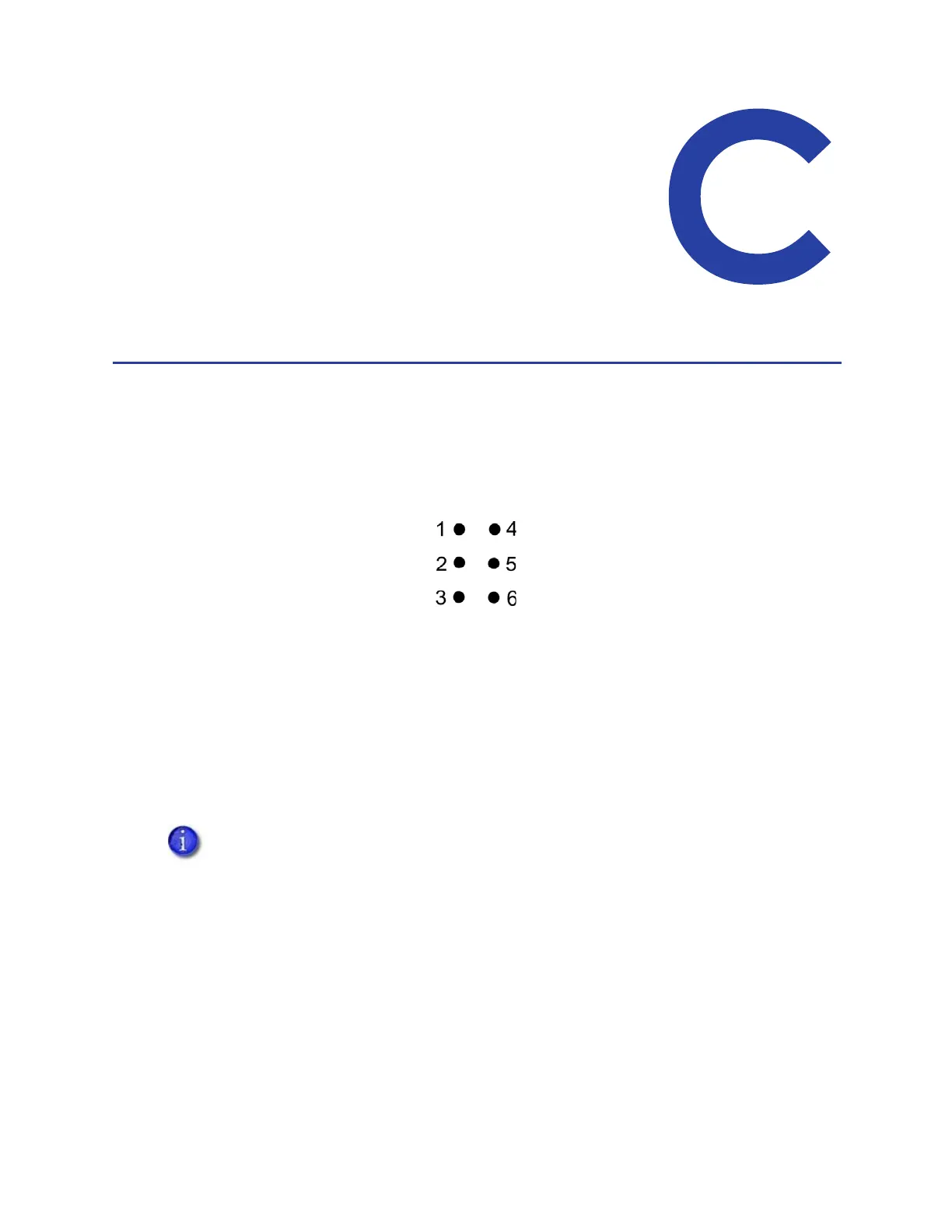

The braille characters are expressed as a sequence of numbers that indicate the position of the
dots, with dots 1–3 in the left column, and dots 4–6 in the right column.
The CE system uses a single emboss character to form each dot. Up to three 6-dot characters can
be embossed in any allowed location on the card.
The vertical and horizontal spacing between the embossed dots is 0.091 in (2.3 mm). The
distance between characters is 0.240 in (6.1 mm).
Because there is not a one-to-one correlation between the ASCII value and the braille character,
use the following conversion table to map your ASCII data to the braille characters. The table
includes the dot sequence for each character and its binary representation.
Some characters must be sent as an ASCII sequence because they are reserved XML
characters. In addition, some characters have more than one valid value. All are
shown in the following table.

DataCard SD460 Specifications

General

Color	Yes
Card size	85.6 x 53.98 mm
Card types	Magnetic stripe (ISO 7811), PVC, Smart card
Print technology	Dye-sublimation/Resin Thermal transfer
Duplex print speed (color)	200 card/h
Display	LCD
Certification	cULus, FCC, I.C., CE, Ctick, VCCI, RoHS, WEEE, CCC, KCC
Product color	Black, Blue
Internal memory	128 MB
Built-in barcodes	1D, 2D
Total input capacity	100 sheets
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Wi-Fi	No
USB version	2.0
Ethernet interface type	Fast Ethernet
Storage temperature (T-T)	-15 - 60 °C
Operating temperature (T-T)	15 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Weight	13600 g
Dimensions (WxDxH)	589 x 270 x 513 mm
