DataCard SD460 User Manual

86 Card Design Tasks
Select an Erase Pattern
When a printer is configured to print to rewritable cards, you use the Print Area tab to specify the
erase option to use. The Print Area tab erase options display only when the Print Mode tab
Rewrite option has been selected. Refer to “Select the Rewrite Option” on page 93.
The options for erase patterns include entire card, which erases the whole card, or a user-defined
bitmap, which erases a portion of the card.
The user-defined erase patterns use bitmap files that are installed as part of the Card Printer
Driver installation. The following files are installed in the C:\CardPrinter folder:
You can modify the bitmap files to erase just a portion of the card, based on your card design. The
bitmap files are black-and-white, one-bit-per-pixel files that allow you to specify the erase area.
The white areas of the bitmap represent the part of the card that will not be erased, and the
black area represents the area to erase. Use a graphics editing program, such as Microsoft Paint,
to modify the driver-provided bitmap.

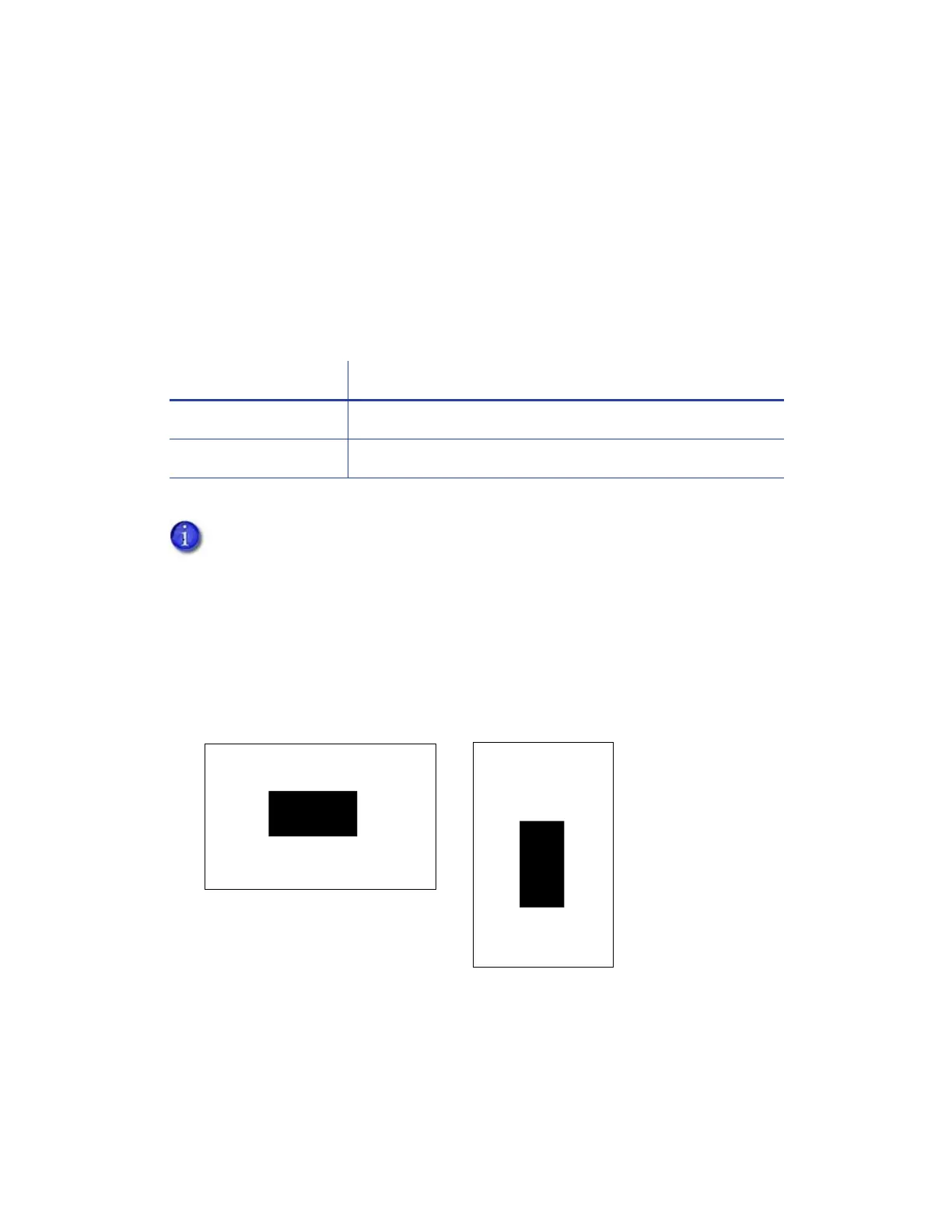

1. Open the driver-provided bitmap that describes the orientation of your card design.
Orientation Bitmap file
Portrait CRDPortEraseFront.bmp
Landscape CRDLandEraseFront.bmp
Rewritable cards are erased and printed only on the front side of the card.

DataCard SD460 Specifications

General

Color	Yes
Card size	85.6 x 53.98 mm
Card types	Magnetic stripe (ISO 7811), PVC, Smart card
Print technology	Dye-sublimation/Resin Thermal transfer
Duplex print speed (color)	200 card/h
Display	LCD
Certification	cULus, FCC, I.C., CE, Ctick, VCCI, RoHS, WEEE, CCC, KCC
Product color	Black, Blue
Internal memory	128 MB
Built-in barcodes	1D, 2D
Total input capacity	100 sheets
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Wi-Fi	No
USB version	2.0
Ethernet interface type	Fast Ethernet
Storage temperature (T-T)	-15 - 60 °C
Operating temperature (T-T)	15 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Weight	13600 g
Dimensions (WxDxH)	589 x 270 x 513 mm
