DataCard SD460 User Manual

XPS Card Printer Driver User’s Guide B-5

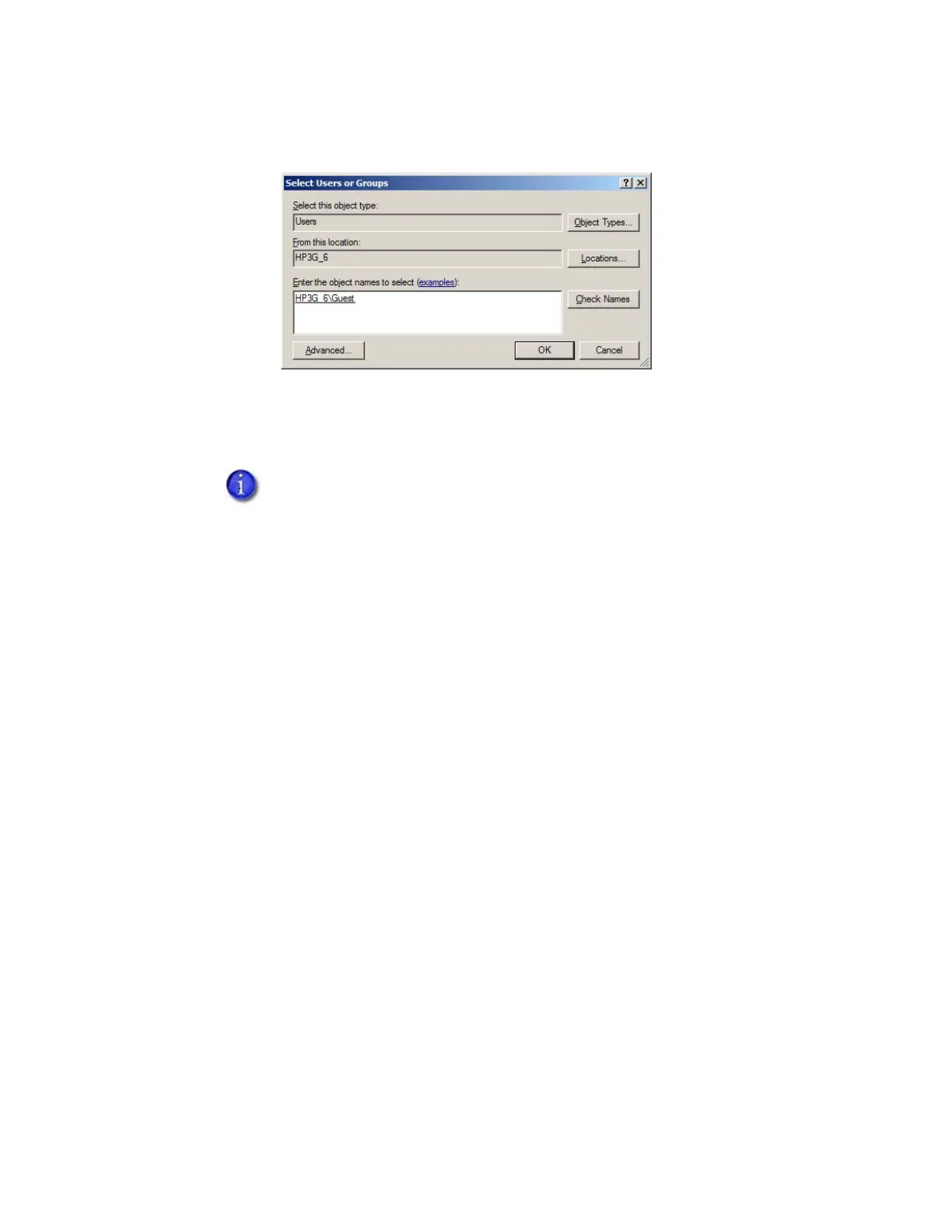

– Click OK. The Select Users or Groups window displays the names you selected.
iv. When you finish adding names, click OK to close the Users and Groups dialog box.
c. In the Names list, select the name or group to set up.
i. Select Allow for permissions you want to apply to the user or group.
ii. Clear the Allow check box for permissions you want to deny the user or group.
iii. Click Apply to save your changes. Make sure that you save changes for each name.
6. Configure the host PC printing preferences.
a. On the Devices and Printers window, right-click the card printer icon and select Printing
preferences. The Printing Preferences window displays.
b. Specify your printing preferences. Refer to “Design Tasks in Windows Printing
Preferences” on page 65.
c. Click OK to close the Printing Preferences window.
Do not select the Manage documents or the Deny check boxes for any user
or group. Select Allow for Manage Printer if you want a user or group to
view messages.

DataCard SD460 Specifications

General

Color	Yes
Card size	85.6 x 53.98 mm
Card types	Magnetic stripe (ISO 7811), PVC, Smart card
Print technology	Dye-sublimation/Resin Thermal transfer
Duplex print speed (color)	200 card/h
Display	LCD
Certification	cULus, FCC, I.C., CE, Ctick, VCCI, RoHS, WEEE, CCC, KCC
Product color	Black, Blue
Internal memory	128 MB
Built-in barcodes	1D, 2D
Total input capacity	100 sheets
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Wi-Fi	No
USB version	2.0
Ethernet interface type	Fast Ethernet
Storage temperature (T-T)	-15 - 60 °C
Operating temperature (T-T)	15 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Weight	13600 g
Dimensions (WxDxH)	589 x 270 x 513 mm
