DataCard SD460 User Manual

XPS Card Printer Driver User’s Guide 13

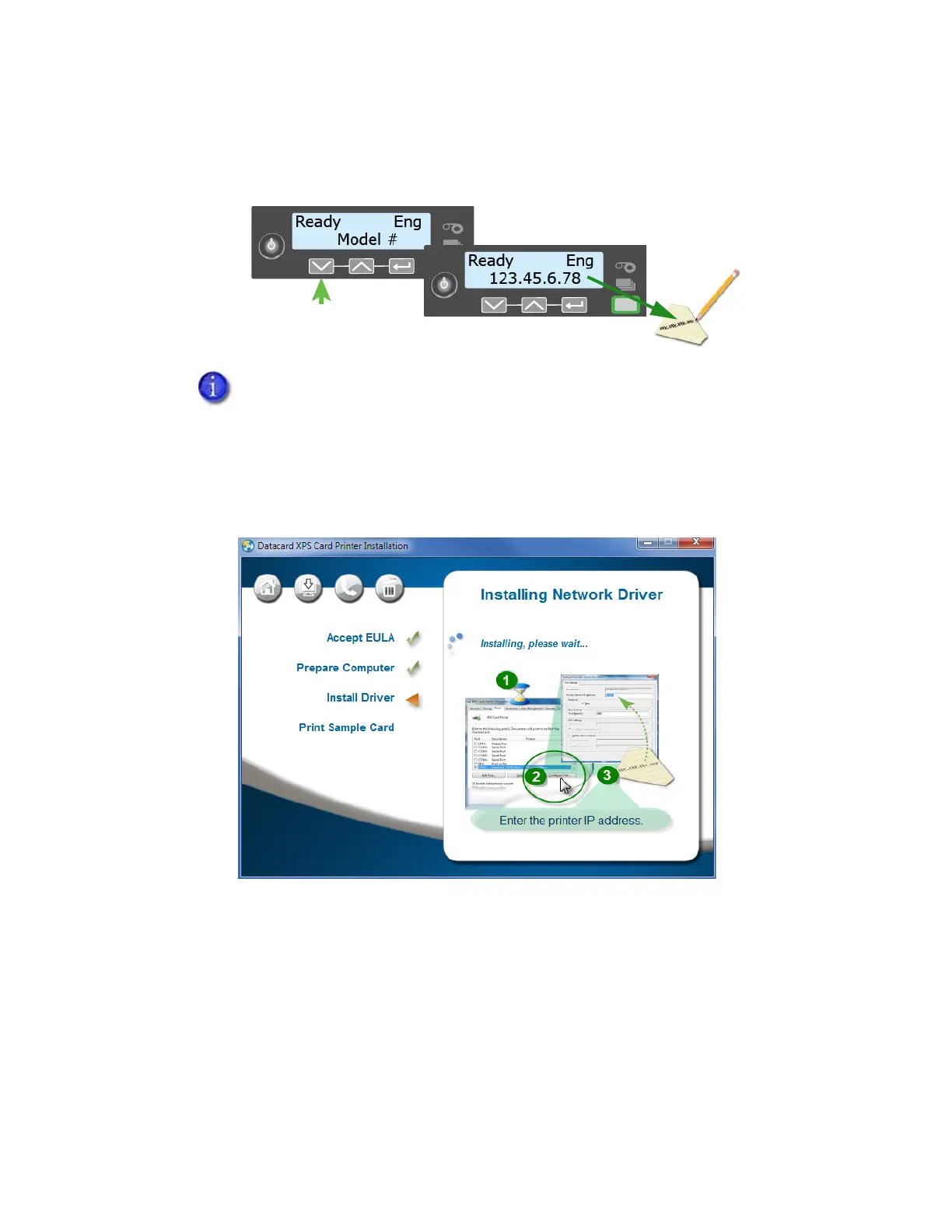

6. Use the printer LCD screen menu system to retrieve the printer’s IP address. Press the down
arrow until the IP address displays and write down the address.
7. Enter the IP address.
The Installing Network Driver window displays on your PC.
The Card Printer Driver supports both IPv4 and IPv6 addresses for network-
connected printers. Refer to your printer’s User’s Guide for complete information
about obtaining an IPv6 address.

DataCard SD460 Specifications

General

Color	Yes
Card size	85.6 x 53.98 mm
Card types	Magnetic stripe (ISO 7811), PVC, Smart card
Print technology	Dye-sublimation/Resin Thermal transfer
Duplex print speed (color)	200 card/h
Display	LCD
Certification	cULus, FCC, I.C., CE, Ctick, VCCI, RoHS, WEEE, CCC, KCC
Product color	Black, Blue
Internal memory	128 MB
Built-in barcodes	1D, 2D
Total input capacity	100 sheets
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Wi-Fi	No
USB version	2.0
Ethernet interface type	Fast Ethernet
Storage temperature (T-T)	-15 - 60 °C
Operating temperature (T-T)	15 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Weight	13600 g
Dimensions (WxDxH)	589 x 270 x 513 mm
