DK-40 USER MANUAL V2.6 (02.08.2011)
K13D01-E - 18 -

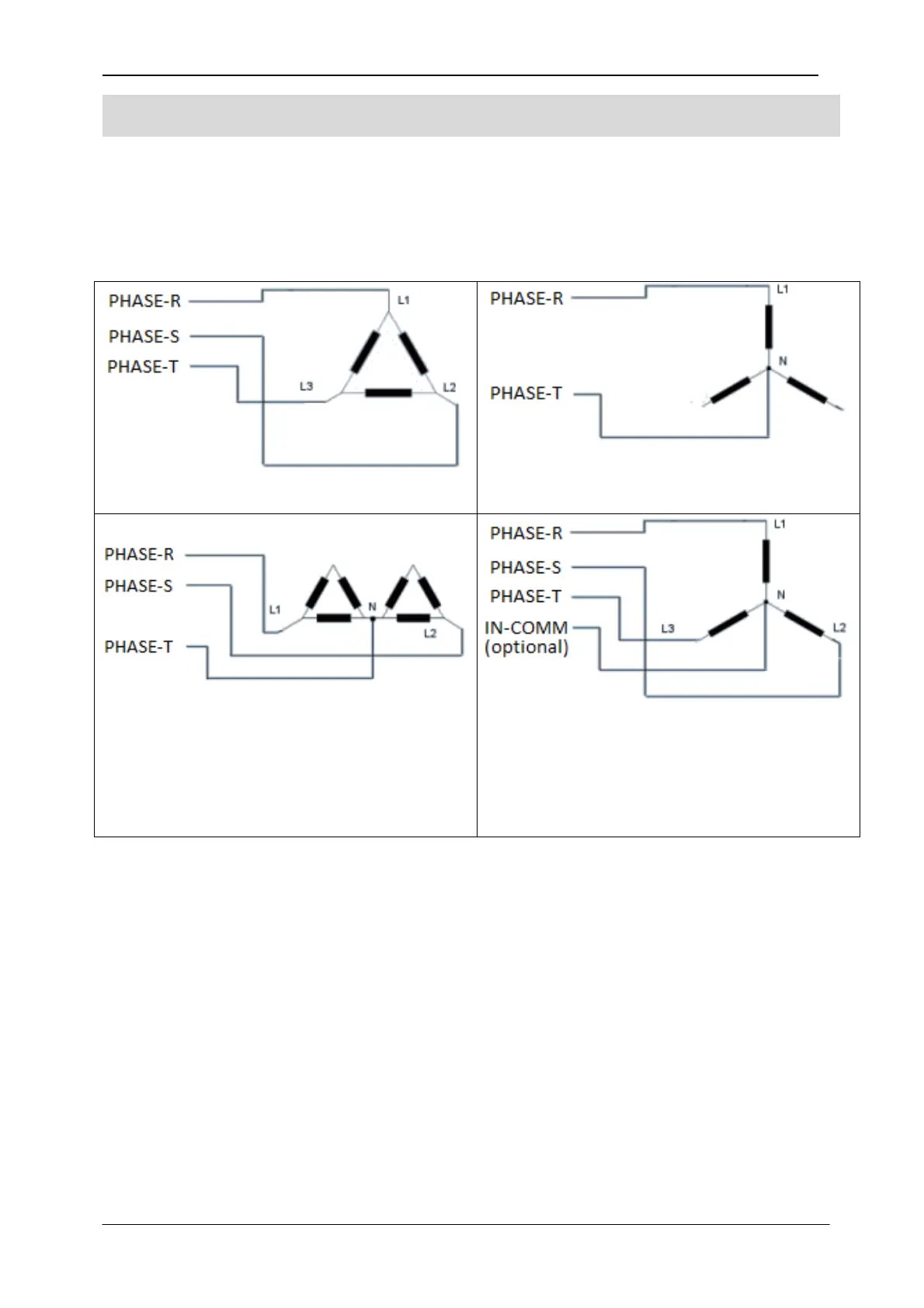

6.4. CONNECTION TOPOLOGIES
The unit supports various connection topologies. The topology is selected through
parameter P48.
Different topologies and terminal connections are as below:
P48 = 3
P48 = 1
P48 = 2
P48 = 3
The power supply and measuring terminals
of the unit are isolated. In order to enable
above topology, the unit must be specially
manufactured.
