Datakom DK-40 User Manual

DK-40 USER MANUAL V2.6 (02.08.2011)
K13D01-E - 8 -

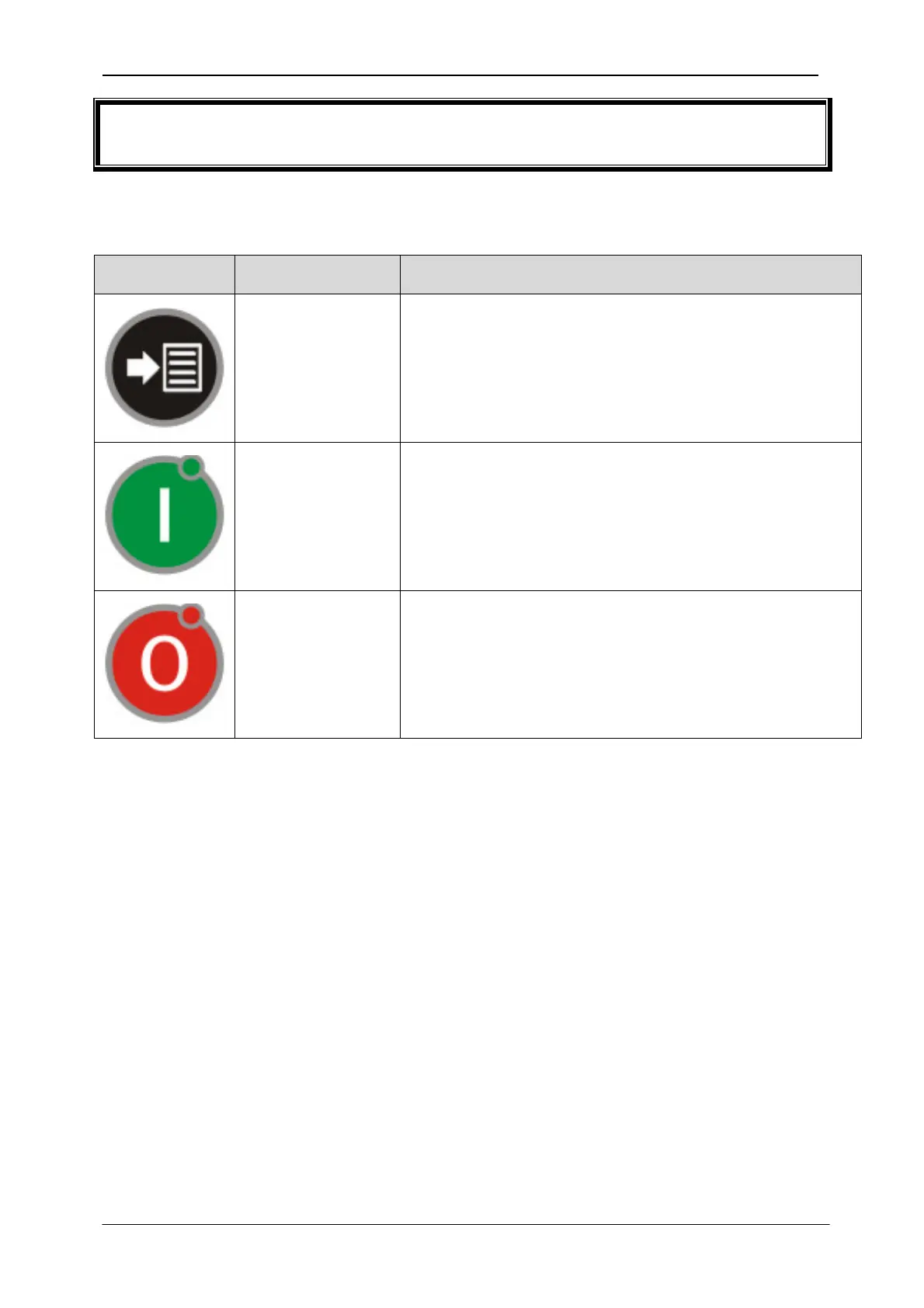

2. PUSHBUTTON FUNCTIONS
Programming and measurement displays are visualized using below buttons:
BUTTON DESCRIPTION FUNCTION
MENU
Displays next parameter.
Resets faults.
Saves adjusted value.
RUN
Run the compressor and reset existing
alarms.
Increase value.
STOP
Stop the compressor and reset existing
alarms.
Decrease value.

Datakom DK-40 Specifications

Power

supply voltage (IN-COMM to IN-400V)	305 – 460 VAC
supply voltage (IN-COMM to IN-230V)	175 - 275 VAC
supply frequency	50 - 60 Hz nominal
power consumption	< 4 VA

Measurement Inputs

voltage input range (L-L)	20 - 520 V AC
voltage input range (L-N)	10 - 300 V AC
frequency input range	30 - 100 Hz

Accuracy

voltage accuracy	0.5% + 1 digit
frequency accuracy	0.5% + 1 digit
voltage burden	< 0.1 VA per phase

Relay Outputs

relay output current	5 A
relay output voltage	250 V AC
external switch resistance	< 3 K-ohms

Inputs

pressure input range	4-20 mA (optional 0-10 V)
temperature input range	1000-5000 ohms
motor PTC input alarm threshold	2000 ohms

Operating Environment

operating temperature	-30°C to +80°C (-22°F to +176°F)
storage temperature	-40°C to +80°C (-40°F to +176°F)
maximum humidity	95% non-condensing

Physical Characteristics

degree of protection (front panel)	IP 54
degree of protection (back panel)	IP 30
dimensions	134x107x54 mm (WxHxD)
