CBX800 INSTALLATION MANUAL
30

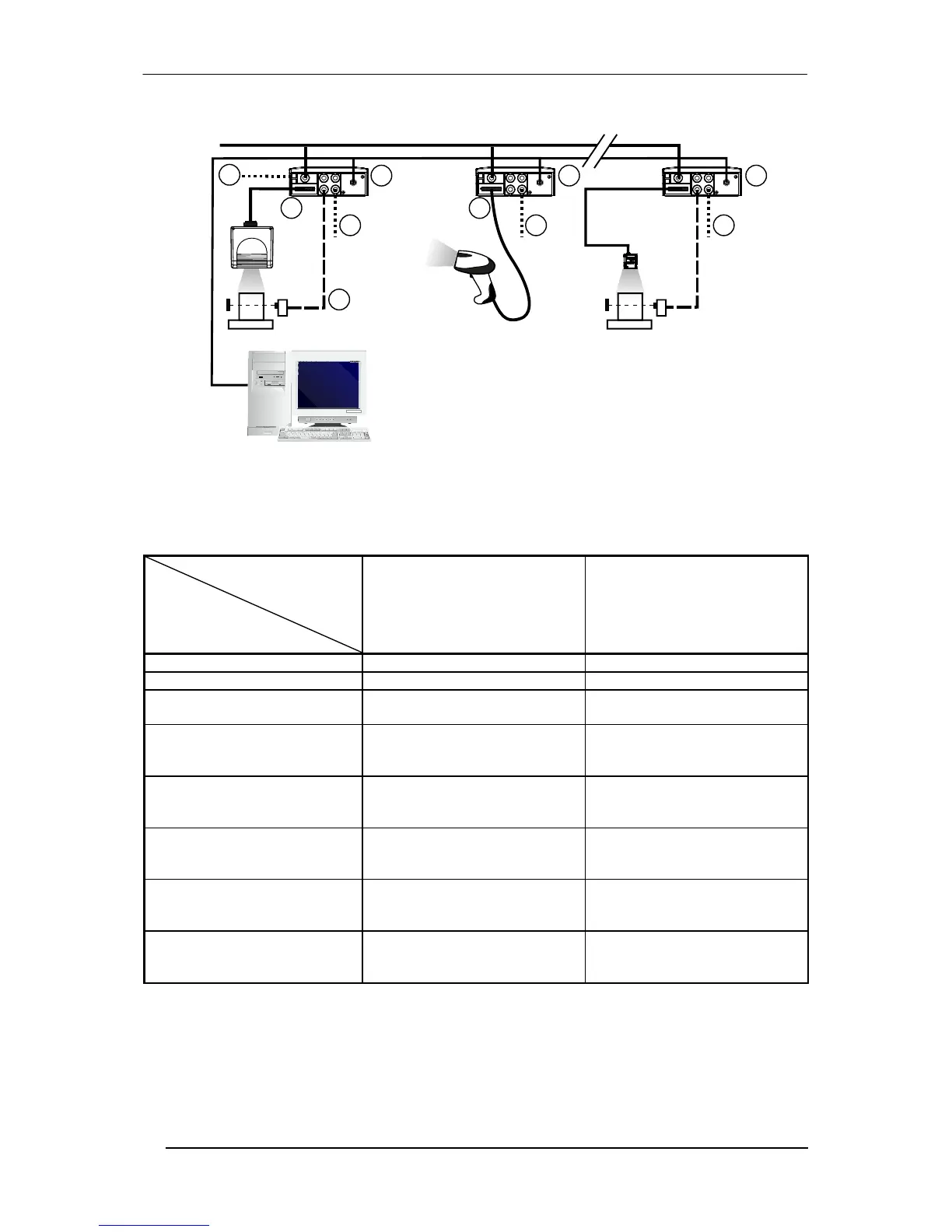

Ethernet TCP/IP Gateway
Layout
CBX800
Parameters
sw package 003 and later
Ethernet TCP/IP
Gateway
(interface board = BM2x0)
Note
Net Type Rotary Switch
7
Topology Role
Other
System Layout / Host Port
Type
Ethernet TCP/IP
Communication Settings /
Gateway / Line Parameters/
(all parameters)
Aligned to the LAN
configuration
Communication Settings /
Gateway / TCP/IP Services /
User Socket #x / Status
<checked>
Communication Settings / Data
Source Serial Port / Data
Destination: Gateway
<checked>
Communication Settings / Data
Source Serial Port / Expected
Termination String
Aligned to the Data Source
device configuration
if Communication Settings /Data
Source Serial Port / Send Data On
= Termination String
Communication Settings / Data
Source Serial Port / Line
Parameters/ (all parameters)
Aligned to the Data Source
device configuration
Ethernet TCP/IP Nodes
Ethernet TCP/IP (Host)
 CBX800 Source Interface
 CBX800 Host Interface>BM2x0 Ethernet TCP/IP Module
 CBX500 Main Interface>BM2x0 Ethernet TCP/IP Module
 External Trigger (for On-Line Mode)
 Host Aux for CBX800 Configuration
 Source Aux for Source Reader Configuration
 Reader Auxiliary Interface for Reader Configuration
1 1
CBX800 CBX800
CBX500
2 2
Power
3
4
5
Matrix 210™
DS6300
Hand-Held
Reader
7 5
6

Datalogic CBX800 Specifications

General

Product color	Black, Blue, Grey
LED indicators	Yes
Housing material	-
Protection features	Shock resistant, Vibration proof
International Protection (IP) code	IP65
Input voltage	10/30 V
Power source type	DC
Power consumption (typical)	2.5 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	0 - 90 %
Type	Barcode module bar barcode readers
Scanner type	1D/2D
Connectivity technology	Wired
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	137 mm
Width	128 mm
Height	62 mm
Weight	360 g
