CBX800 INSTALLATION MANUAL
31

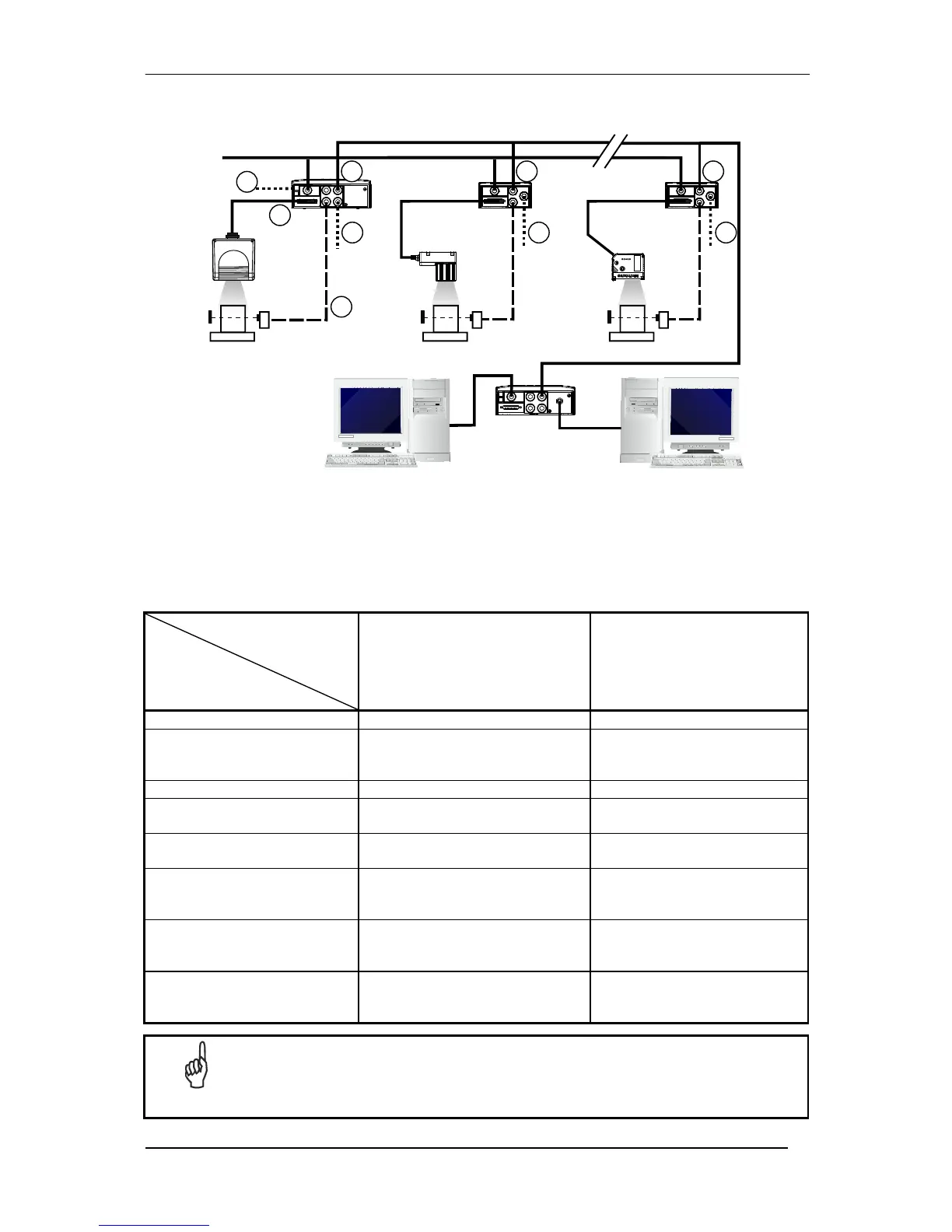

ID-NET™ Gateway
Layout
CBX800
Parameters
sw package 003 and later
ID-Net Gateway
Note
Net Type Rotary Switch
9
Address Rotary Switches
X100 = 0..9 (ID-Net Baud rate)
X10 = 0..3
X1 = 0..9
(X10 + X1) Address Range =
1..31
Topology Role
ID-NET Slave (Multidata)
System Layout / Network
Baud Rate (bps)
Aligned to the ID-Net Master
baud rate
See par. Baudrate Selection
System Layout / Host Port
Type
Serial
Communication Settings /
Data Source Serial Port / Data
Destination: ID-NET
<checked>
Communication Settings /
Data Source Serial Port /
Expected Termination String
Aligned to the Data Source
device configuration
if Communication Settings /Data
Source Serial Port / Send Data On
= Termination String
Communication Settings /
Data Source Serial Port / Line
Parameters/ (all parameters)
Aligned to the Data Source
device configuration
NOTE
For 6/8K family scanners having software version 6.80 or later, an alternative fixed speed
(57600 baud) ID-NET™ layout can be made without the use of CBX800. See the ID-NET™
Application Note on CD-ROM for details.
For maximum ID-NET™ network performance use CBX800.
ID-NET™ Slave Nodes
CBX800 Source Interface
CBX800 Full Speed ID-NET™ Interface
Reader ID-NET™ Interface
External Trigger (for On-Line Mode)
Host Aux for CBX800 Configuration
Source Aux for Source Reader Configuration
Reader Auxiliary Interface for Reader Configuration
Ethernet TCP/IP (WebSentinel)
1
CBX800 CBX100
CBX100
2 3
Power
3
4
5
6
DS4800
DS6300
7
Matrix 410™
7
Serial (Host)
Host 2
Host 1
ID-NET™
SC4000
ID-NET™
Master
