CBX800 INSTALLATION MANUAL
32
MUX32 Gateway
Layout
CBX800
Parameters
sw package 003 and later
MUX32 Gateway Note
Net Type Rotary Switch
0
Topology Role
Other
System Layout / Host Port
Type
Serial
System Layout / Host Port
Serial Protocol
MUX 32 slave
Communication Settings / Host
Serial Port / Line Parameters /
Baud Rate
aligned to MUX32 network
baud rate
Communication Settings / Host
Serial Port / Line Parameters /
MUX32 Protocol Address
enabled on the MUX32 network
Communication Settings / Data
Source Serial Port / Data
Destination: Host Serial Port
<checked>
Communication Settings / Data
Source Serial Port / Expected
Termination String
Aligned to the Data Source
device configuration
if Communication Settings /Data
Source Serial Port / Send Data On
= Termination String
Communication Settings / Data
Source Serial Port / Line
Parameters/ (all parameters)
Aligned to the Data Source
device configuration

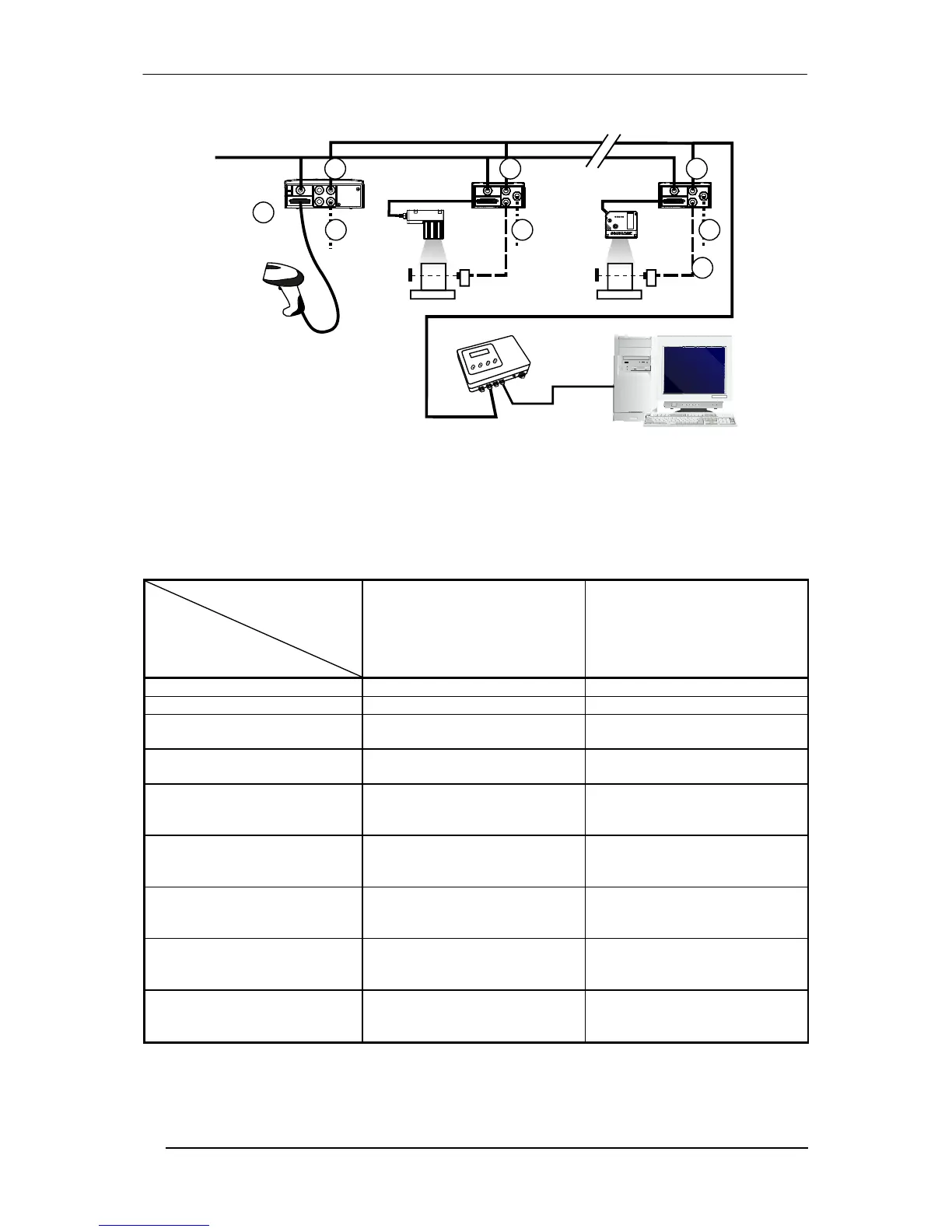

MUX32 Slave Nodes
1
CBX800 CBX100
CBX100
2 3
Power
3
4
5
DS4800
6
Matrix 410™
6
Serial (Host)
MUX32
MX4000
Hand-
Held
Reader
 CBX800 Source Interface
 CBX800 Host MUX32 Interface
 Reader MUX32 Interface
 External Trigger (for On-Line Mode)
 Host Aux for CBX800 Configuration
 Reader Auxiliary Interface for Reader Configuration

Datalogic CBX800 Specifications

General

Product color	Black, Blue, Grey
LED indicators	Yes
Housing material	-
Protection features	Shock resistant, Vibration proof
International Protection (IP) code	IP65
Input voltage	10/30 V
Power source type	DC
Power consumption (typical)	2.5 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	0 - 90 %
Type	Barcode module bar barcode readers
Scanner type	1D/2D
Connectivity technology	Wired
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	137 mm
Width	128 mm
Height	62 mm
Weight	360 g
