STEP 2 – MOUNTING AND POSITIONING THE SYSTEM
1. To mount the Matrix-2000™, use the mounting bracket to obtain the most suitable
position for the reader as shown in the figures below.

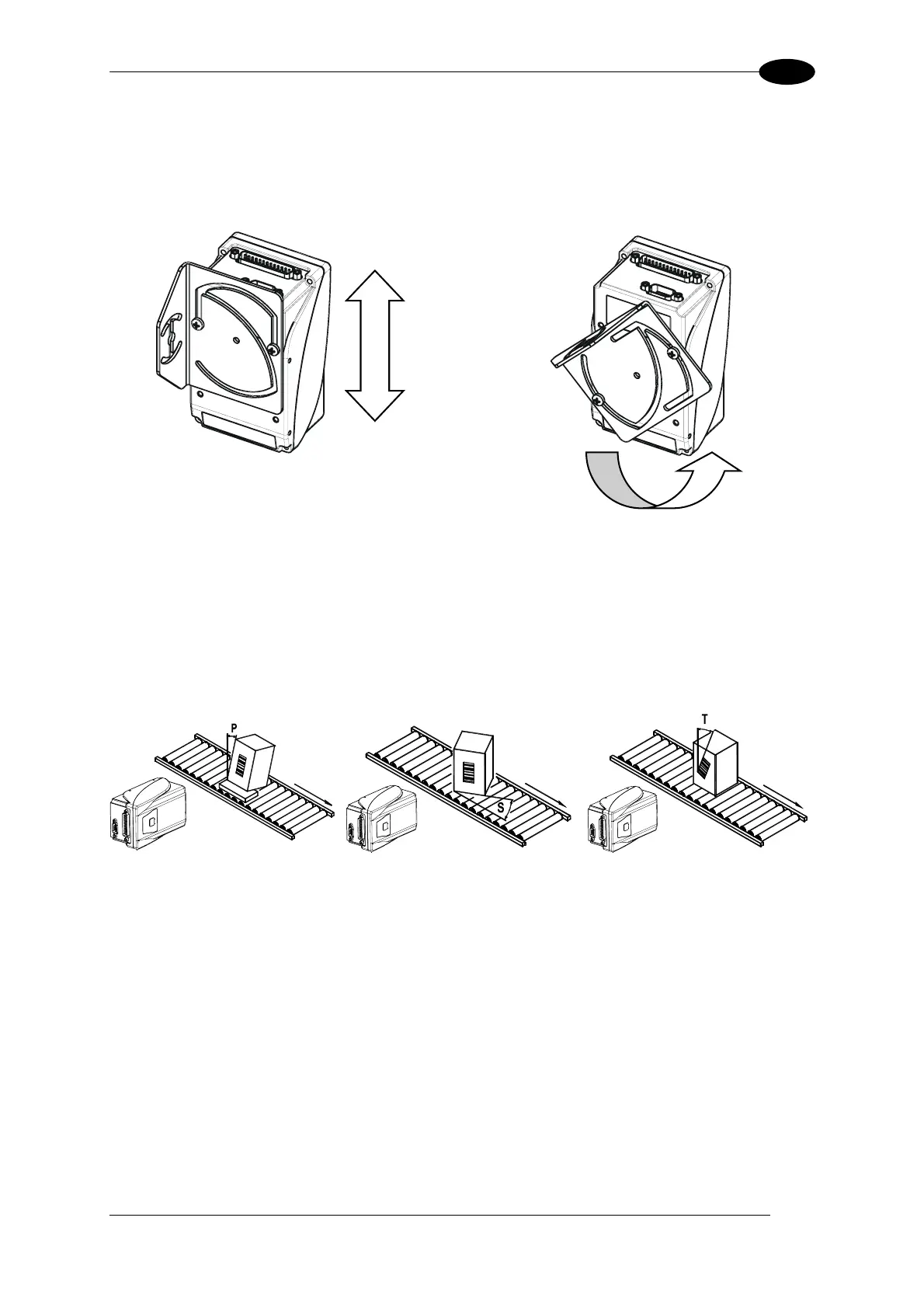

Figure 5 - Positioning with Mounting Bracket
2. When mounting the Matrix-2000™ take into consideration these three ideal label position
angles: Pitch or Skew 10° to 20° and Tilt 0°, although the reader can read a code at any Tilt
angle.
Minimize Assure at least 10° Minimize
Figure 6 – Pitch, Skew and Tilt Angles
3. Refer to the Reading Features in chp. 7 to determine the distance your reader should be
positioned at.
