3.2 MECHANICAL DIMENSIONS
Matrix-2000™ can be installed to operate in different positions. The eight screw holes (M4 x
5) on the body of the reader are for mechanical fixture (Figure 34).

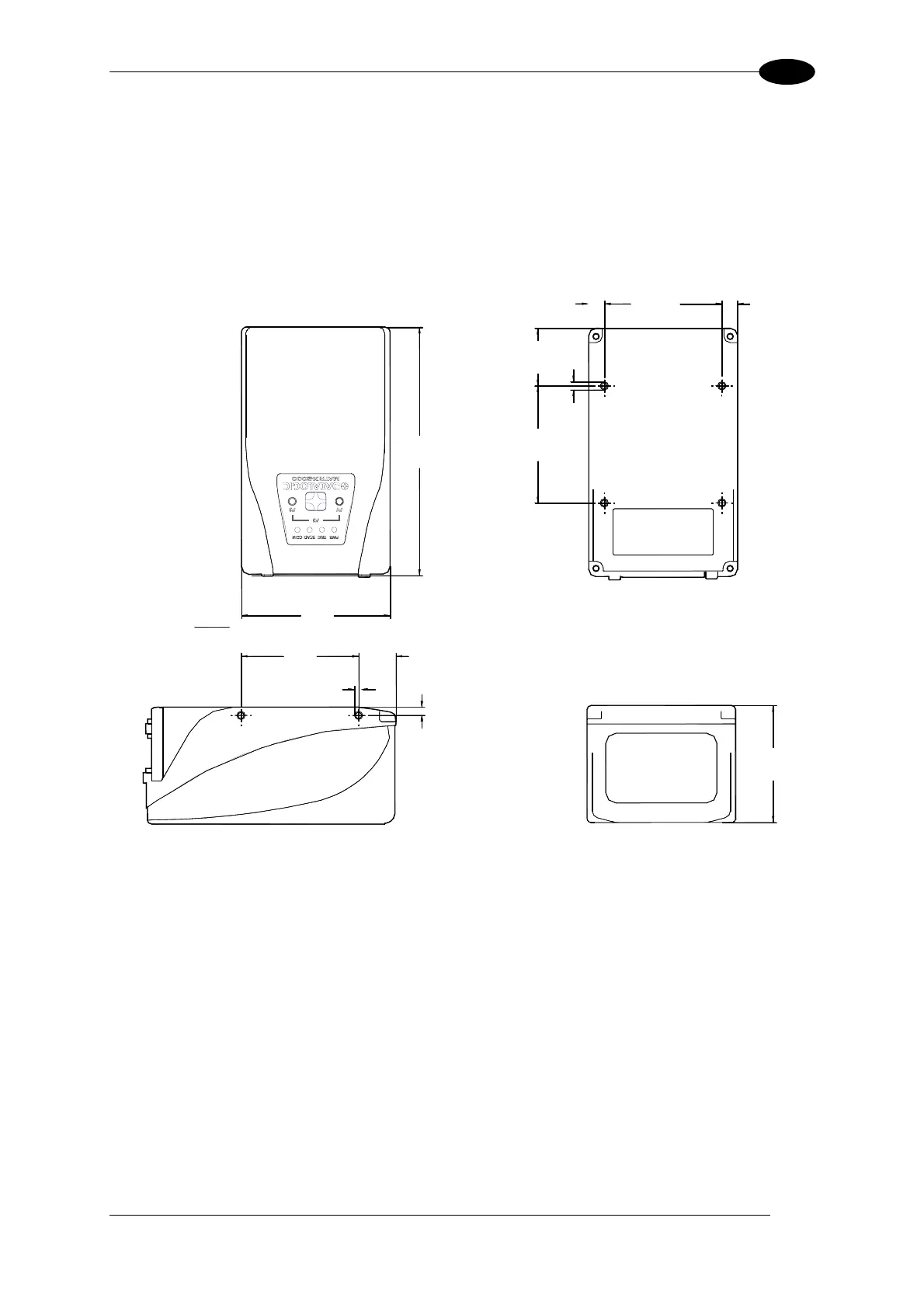

The diagram below gives the overall dimensions of the reader and may be used for its
installation.
Refer to paragraphs 3.3 and 7.1 for correct positioning.
mm
[inch]
M4 x 5 n°4
18.1
[0.71]
4
[0.16]
73
[2.87]
57
[2.24]
= =
28.1
[1.11]
57
[2.24]
121
[4.76]
57
[2.24]
M4 x 5 n°4
57
[2.24]
Figure 34 - Overall Dimensions
