MATRIX-2000™ REFERENCE MANUAL
5
MATRI
X
GND_ISO
RTS
CTS
RX
TX
USER INTERFACE
Reference Ground
Handshaking
Signals
TXD
RXD
SHIELD
7
4
5
3
2
1
Earth Ground Earth Ground
Chassis

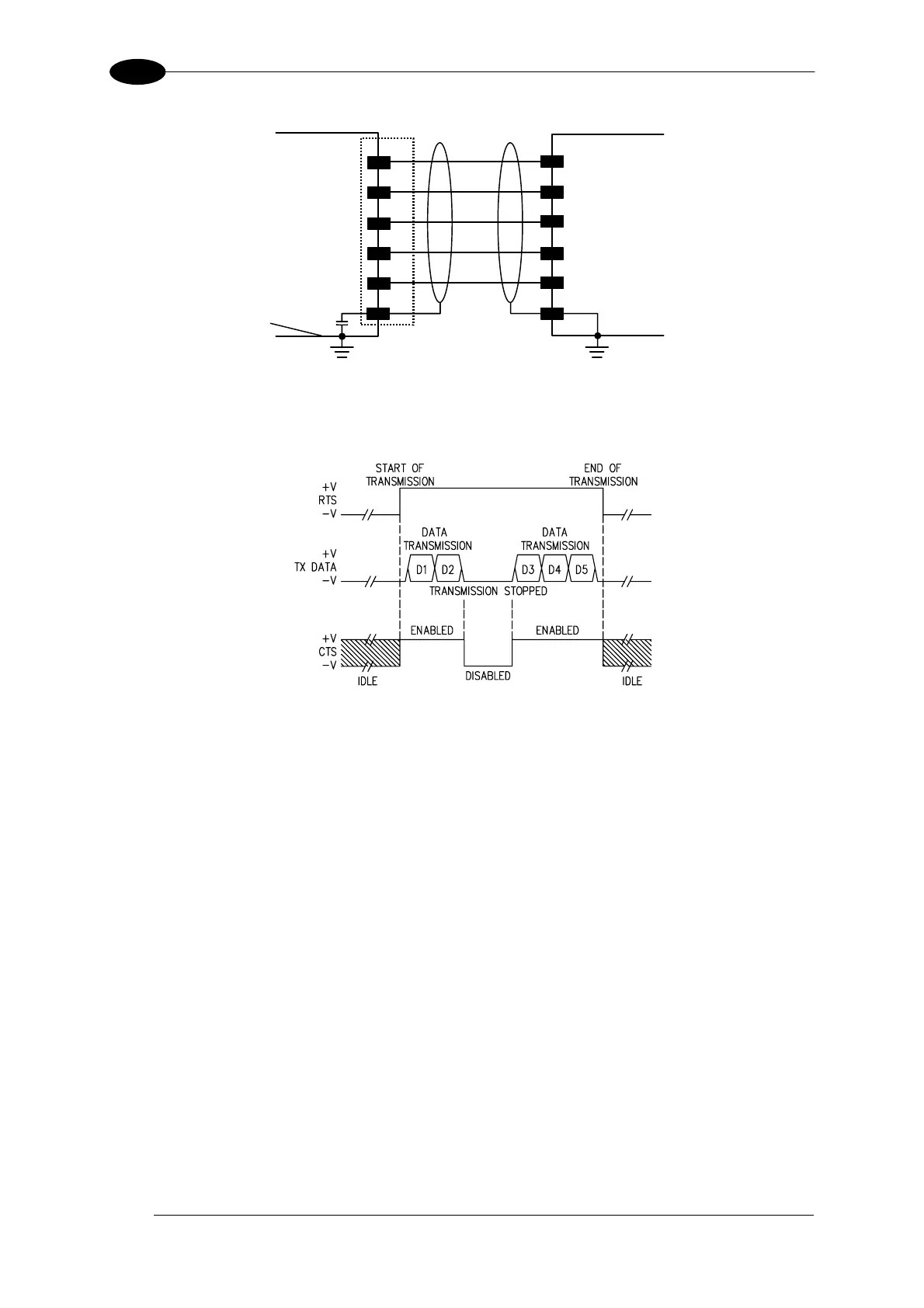

Figure 65 - RS232 Main Interface Connections
The RTS and CTS signals control data transmission and synchronize the connected devices.
Figure 66 - RS232 Control Signals
If the RTS/CTS handshaking protocol is enabled, Matrix-2000™ activates the RTS output to
indicate a message is to be transmitted. The receiving unit activates the CTS input to enable
the transmission.
46
