Datalogic DS6400

READING FEATURES
107
9
DS6400-100-0XX - Resolution: 0.30 mm/12 mils

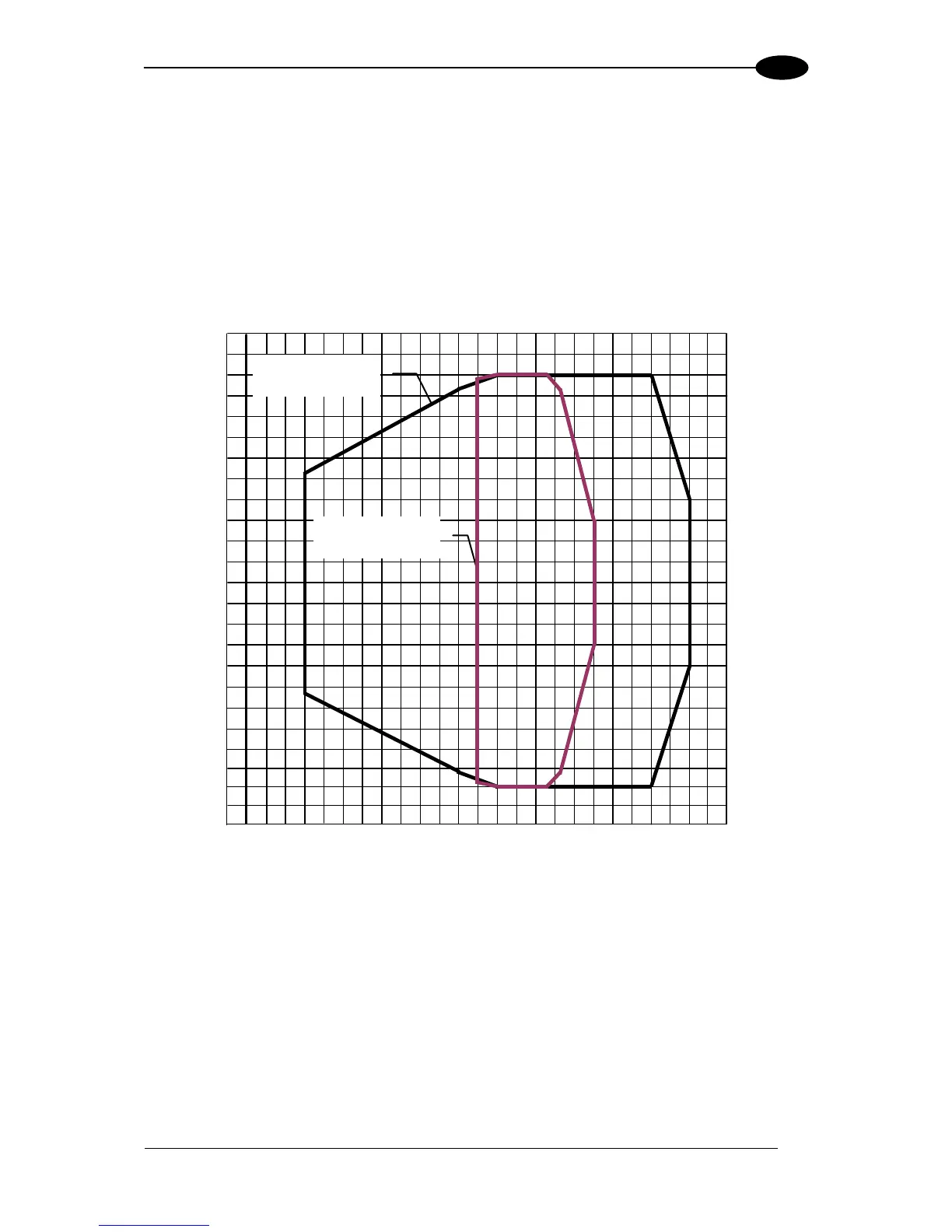

The diagram shows a global reading area, which includes all possible focus positions, and
the reading area obtained for the DS6400-100-0XX operating with focus position = 110 cm
and barcode density of 0.30 mm (12 mils).
It is possible to obtain the minimum and maximum distance values by referring to the radial
distance curves displayed in Figure 120.
8
4
12
(in)
0
16
28
(in)
20
24
32
36
0
40
50
60
70
80
90
100
110
(cm)
50
40
30
20
0
(cm)
10
-10
0
-20
-30
-40
16
20
-16
-20
-12
-8
-4
120
130
44
40
48
52
-50
-24
60
24
140
150
60
56
Global Reading
Area
-60
Focus
Position = 110 cm
160
64
Figure 119 – Standard Model 0.30 mm / 12 mils Reading Diagram
Note: (0,0) is the center of the laser beam output window.
CONDITIONS
Code = Interleaved 2/5 or Code 39
PCS = 0.90
Pitch angle = 0°
Skew angle = 10° - 20°
Tilt angle = 0°
