CUSTOM CABLE ELECTRICAL CONNECTIONS
53
4
DS6400
USER INTERFACE
Vext
100 Vdc max
A/B
B/A
Figure 69 – Output 3 Interface
The command signals are filtered and generate a delay of about 50 µs for Output 1 and 2
and 1 ms for Output 3.
4.6 USER INTERFACE

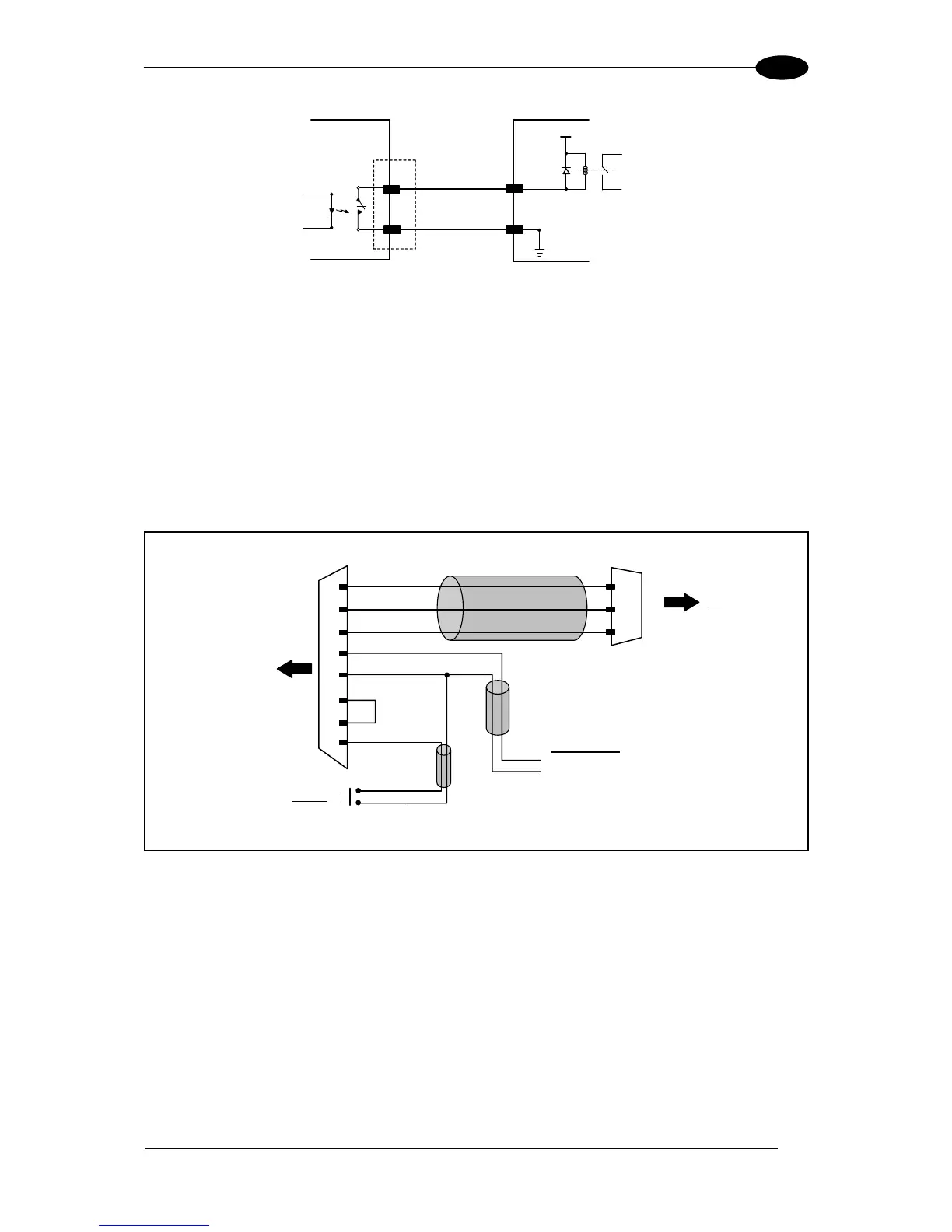

How To Build A Simple Interface Test Cable:
The following wiring diagram shows a simple test cable including power, external
(push-button) trigger and PC RS232 COM port connections.
25-pin D-sub female
23
20
GND
RXAUX
TXAUX
21
DS6400
25
13
GND
VS
9-pin D-sub female
GND
TX
RX
PC
2
3
5
18
9
EXT TRIG A
VS
Power Supply
VS (15 – 30 VDC)
Power GND
Trigger
EXT TRIG B
19
Test Cable for DS6400
