The Tilt angle is represented by the value T in Figure 21.

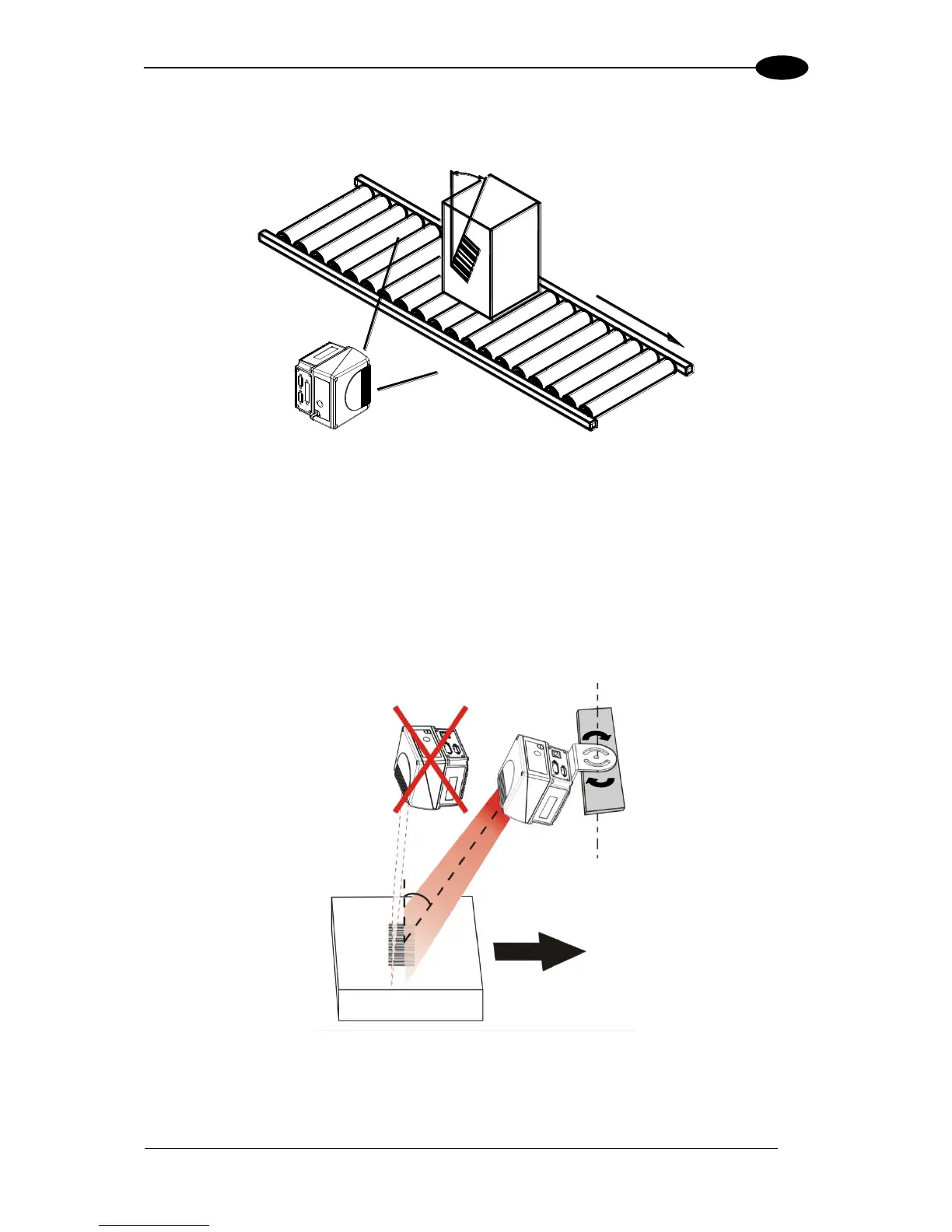

Figure 21 - "Tilt" Angle
2.3.1 16° Skew Positioning
The DS6400 scanner is mounted on the ST-237 106° mounting bracket (see Figure 12)
which guarantees a built-in Skew angle (S in the figure below) of 16° with respect to the
frame plane (typically the Skew angle should be between 10° - 20°). This avoids the direct
reflection of the laser light emitted by the scanner. Furthermore, the bracket guides allow
adjusting the Tilt angle (T in the figure below, which is typically 0°) for the best scanner
orientation:
Figure 22 – 16° Skew Installation
