Datalogic DS6400

CBX ELECTRICAL CONNECTIONS
35
3

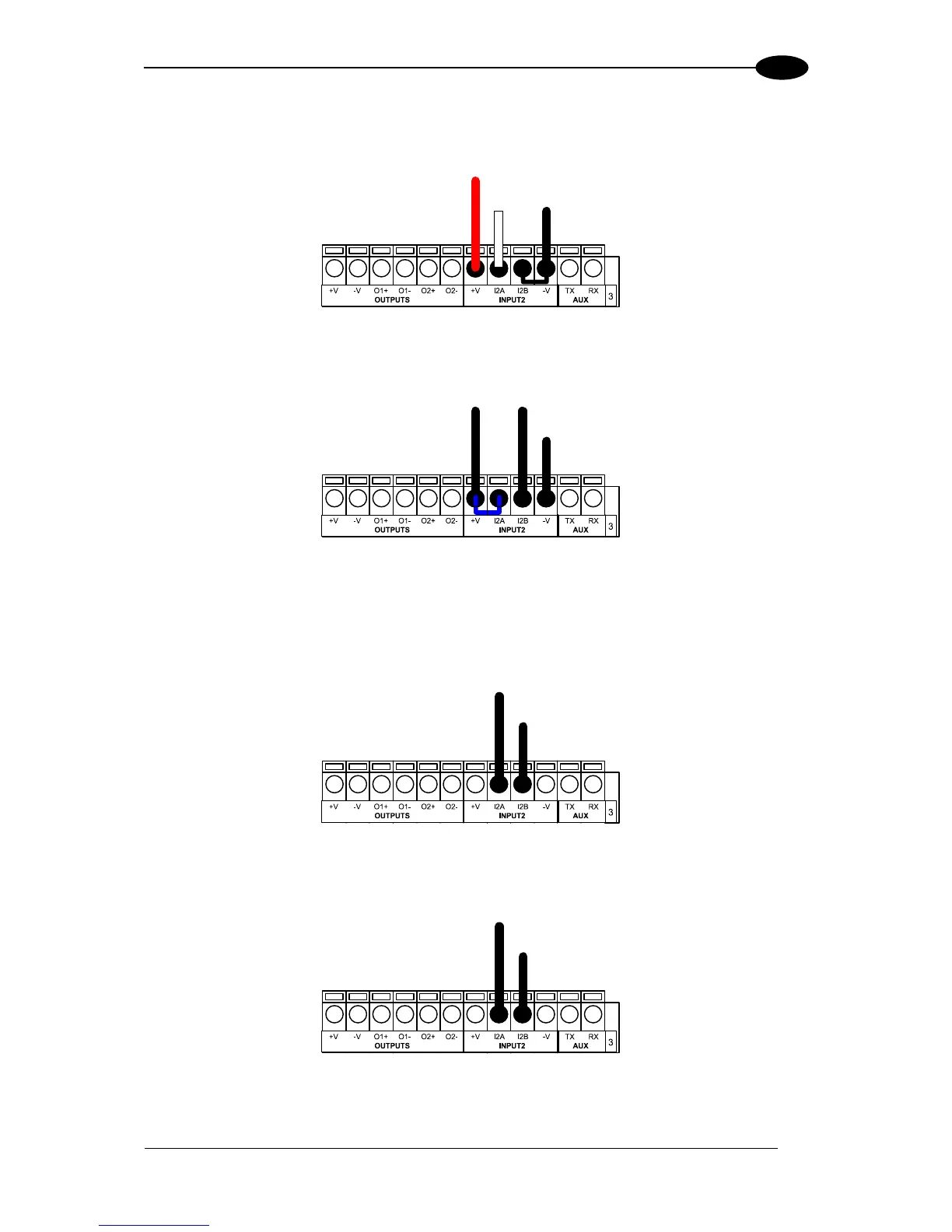

INPUT 2 (ENCODER) CONNECTIONS USING DS6400 POWER
(red)
(white)
OEK-1 Encoder (PNP)
(black)
Figure 37 - OEK-1 Encoder PNP Using DS6400 Power
Power to Input
Input Device Signal
Input Device
Reference
Input Device (Encoder)
Figure 38 - Encoder NPN Using DS6400 Power
INPUT 2 (ENCODER) CONNECTIONS USING EXTERNAL POWER
External Device
Ground Reference
Input
Signal
Figure 39 - PNP Encoder Using External Power (i.e. PLC signal)
External Device
Power Reference
Input
Signal
Figure 40 - NPN Encoder Using External Power (i.e. PLC signal)
