To interface DS6400 scanners to other Host types (Fieldbus and non-
Fieldbus), use the CBX800 Gateway with Host Interface Modules. The
Master scanner in this case is a standard Master/Slave Serial model which
requires the BT-6000 terminator.
* P.S. (Presence Sensor) connected to Input 1 (External Trigger/PS) input.
** CBX800 jumper set to accept scanner power.
*** Encoder connected to Input 2 (Encoder) input.

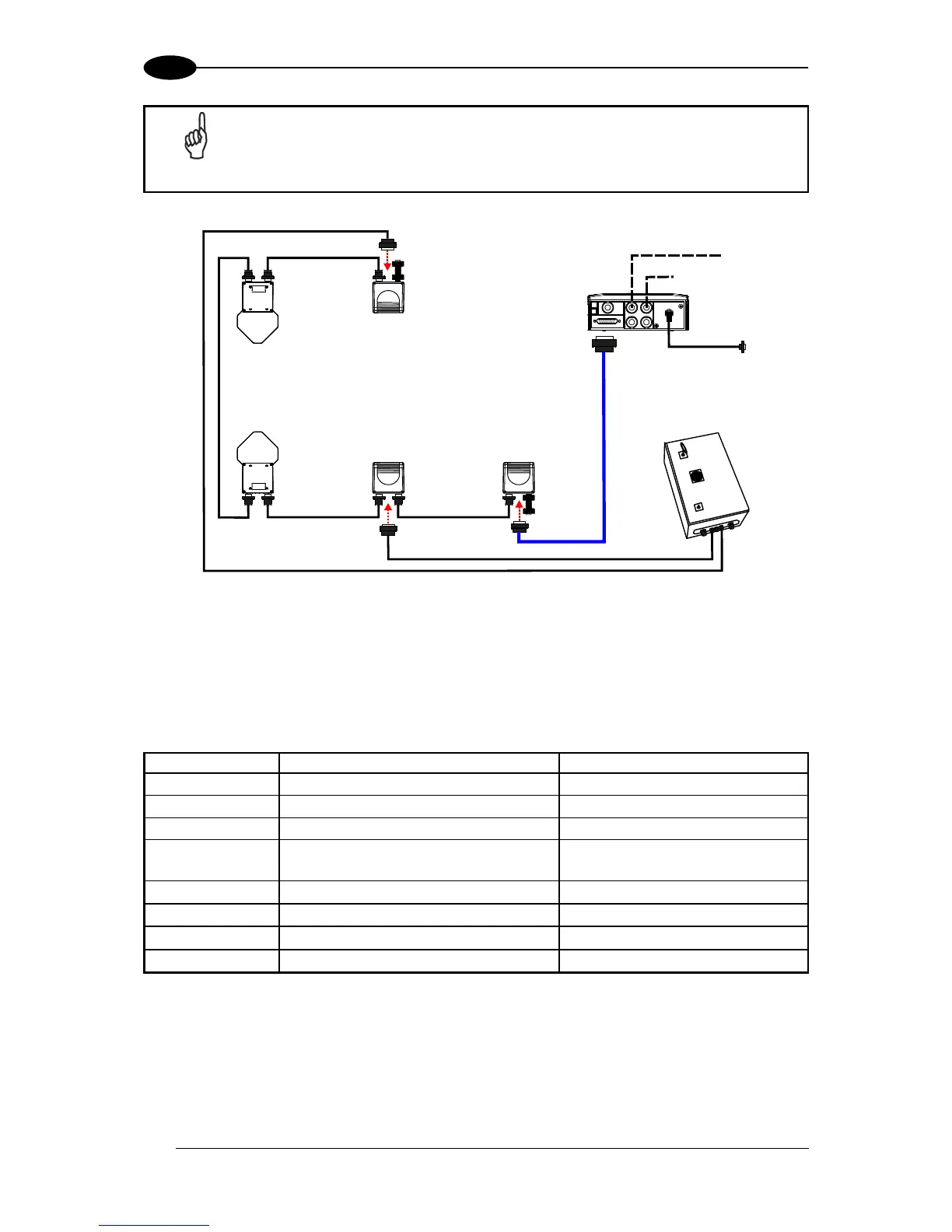

Figure 88 – CBX800 Gateway Fieldbus Synchronized Network
The following Host Interface Module accessories are available for the CBX800 Gateway:
Ethernet TCP/IP Module STD/IP65
Ethernet/IP Module STD/IP65/IP54
93ACC1812, 93ACC1813,
93ACC1840
CBX800**
with Host
Interface
Module
