After defining the parameter values the following window appears allowing to complete the
reader configuration as follows:
- Saving the configuration to disk;
- Switching to Advanced mode;
- Sending the configuration to the scanner.

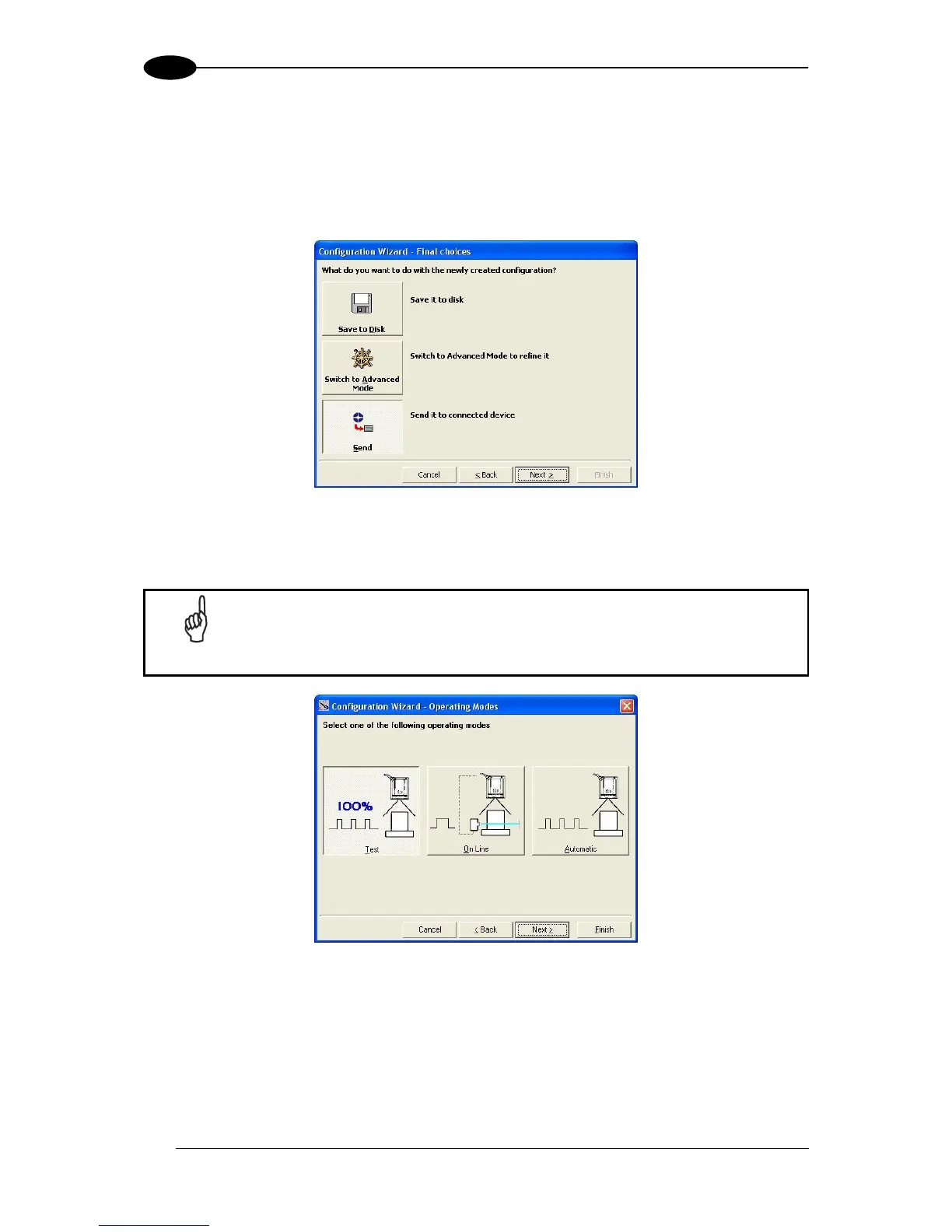

Figure 90 - Genius™ Wizard Closing Window
Test Operating Mode
Figure 91 - Test Mode Selection
This operating mode causes the reader to be continuously activated allowing verification of
its reading features and its reading position with respect to the barcode. For this reason, it is
particularly advised during the installation phase of the reader.
After 100 scans, the values relative to an internal counter and the decoded code are
displayed and transmitted on the serial interface. The counter reports the percentage of good
reads of the label.
