Connecting the Base Station
Quick Reference Guide 7
tal, stand or wall mount. The cables can be looped around to
the front of the Base Station, or fed directly out the back of
the Base Station, as shown in Figure 5.

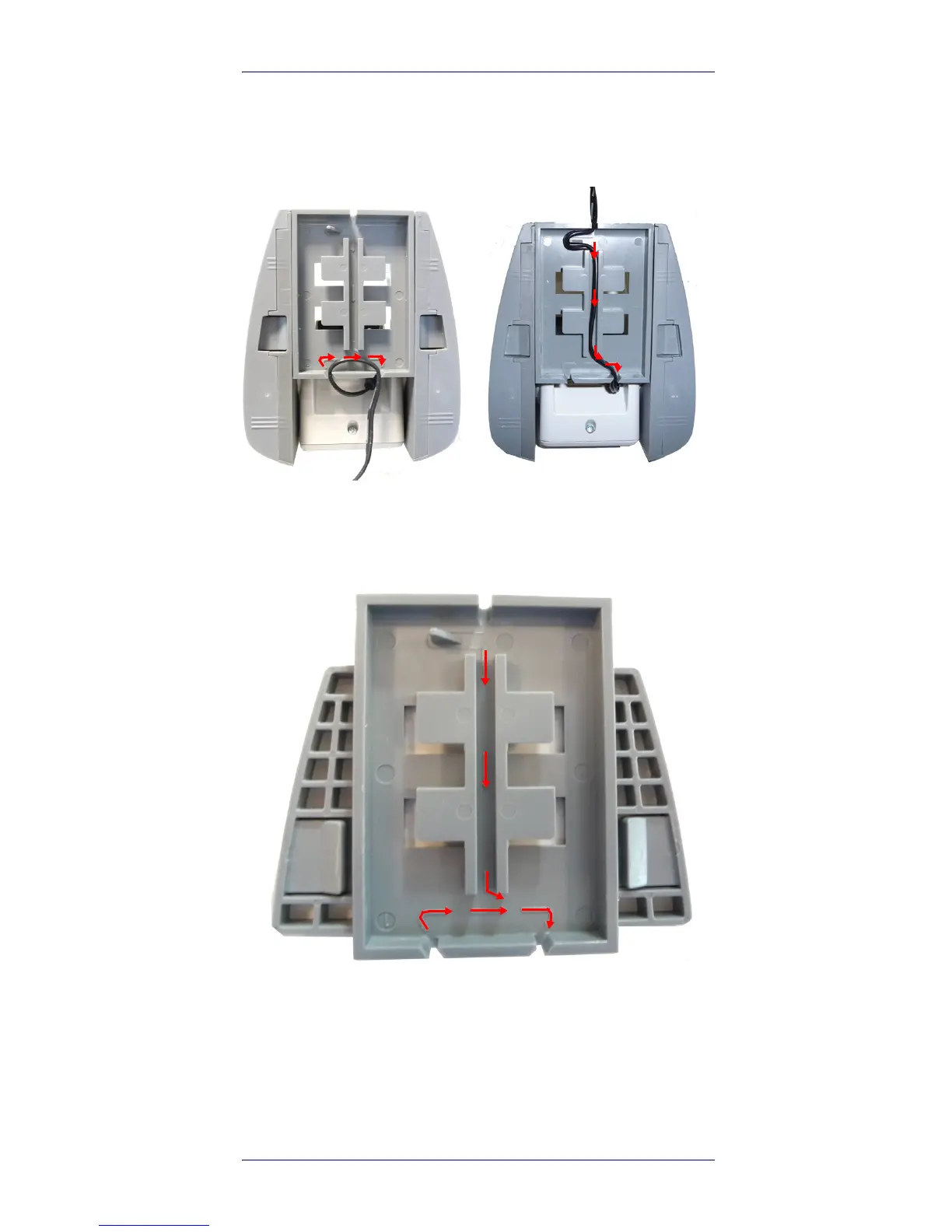

Figure 5. Options for routing the DC cord
Please refer to the arrows depicted on the bottom of the base
when placing the cables, detailed in Figure 6.
Figure 6. Arrows showing routing
