Connecting the Base Station
8Gryphon™ GBT4400
Host Connection — Verify before connection that the reader’s
cable type is compatible with your host equipment.
Most connections plug directly into the host device as shown
in Figure 7. Keyboard Wedge interface cables have a ‘Y’ con-
nection where its female end mates with the male end of the
cable from the keyboard and the remaining end at the key-
board port on the terminal/PC.

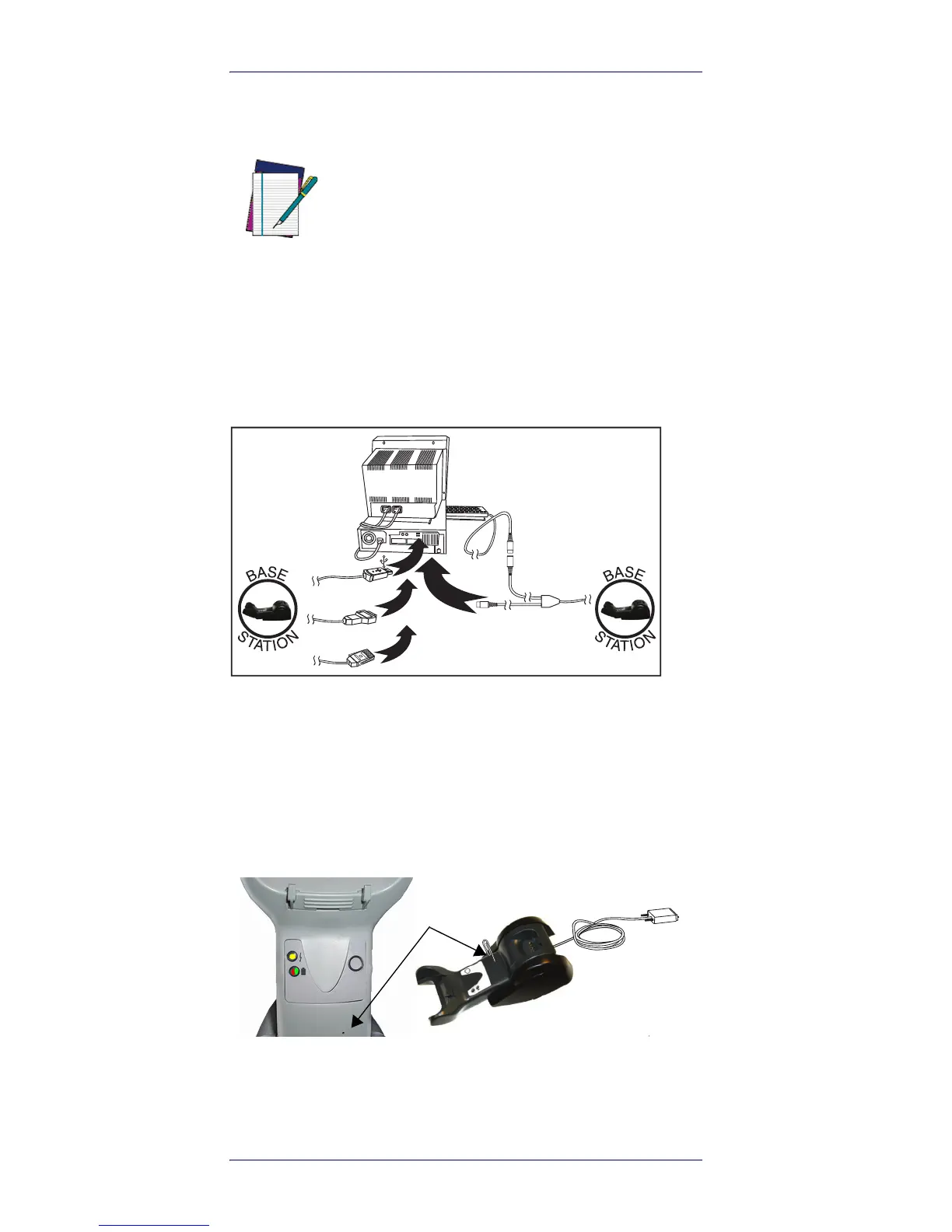

Figure 7. Connecting to the Host
Power Connection —
Plug the AC Adapter into an approved AC
wall socket with the cable facing downwards (as shown in
Figure 4) to prevent undue strain on the socket.
Disconnecting the Cable — To detach the cable, insert a paper
clip or similar object into the hole on the base, as shown.
Figure 8. Disconnecting the Cable
NOTE
The Gryphon I GBT4400 can be set up to require
a PIN code when connecting to the host. If you
are adding new equipment to a system that
uses a custom security PIN, please see the PRG
for information before proceeding.
U
S
B
I
B
M
K
e
y
b
o
a
r
d
W
e
d
g
e
W
a
n
d
or...
or...
or...
Insert
Paper Clip

Datalogic Gryphon GBT4400 Specifications

General

Connectivity	Bluetooth
IP Rating	IP52
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-20 to 70 °C / -4 to 158 °F
Dimensions	18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Scanner Type	2D Imager
Battery	Lithium-Ion
Drop Resistance	1.8 m (6 ft) to concrete
Light Source	Red LED
Image Sensor	CMOS
Decode Capabilities	1D, 2D, Postal Codes, Stacked Codes
Scan Rate	60 frames/sec
Interface	USB, RS-232, Keyboard Wedge
Power Supply	5 VDC +/- 10%
Humidity	5 to 95% non-condensing
Drop Specification	1.8 m (6 ft) to concrete
