Datalogic Gryphon I GBT4400 Quick Reference Guide

Connecting the Base Station
4 Gryphon™ I GBT4400

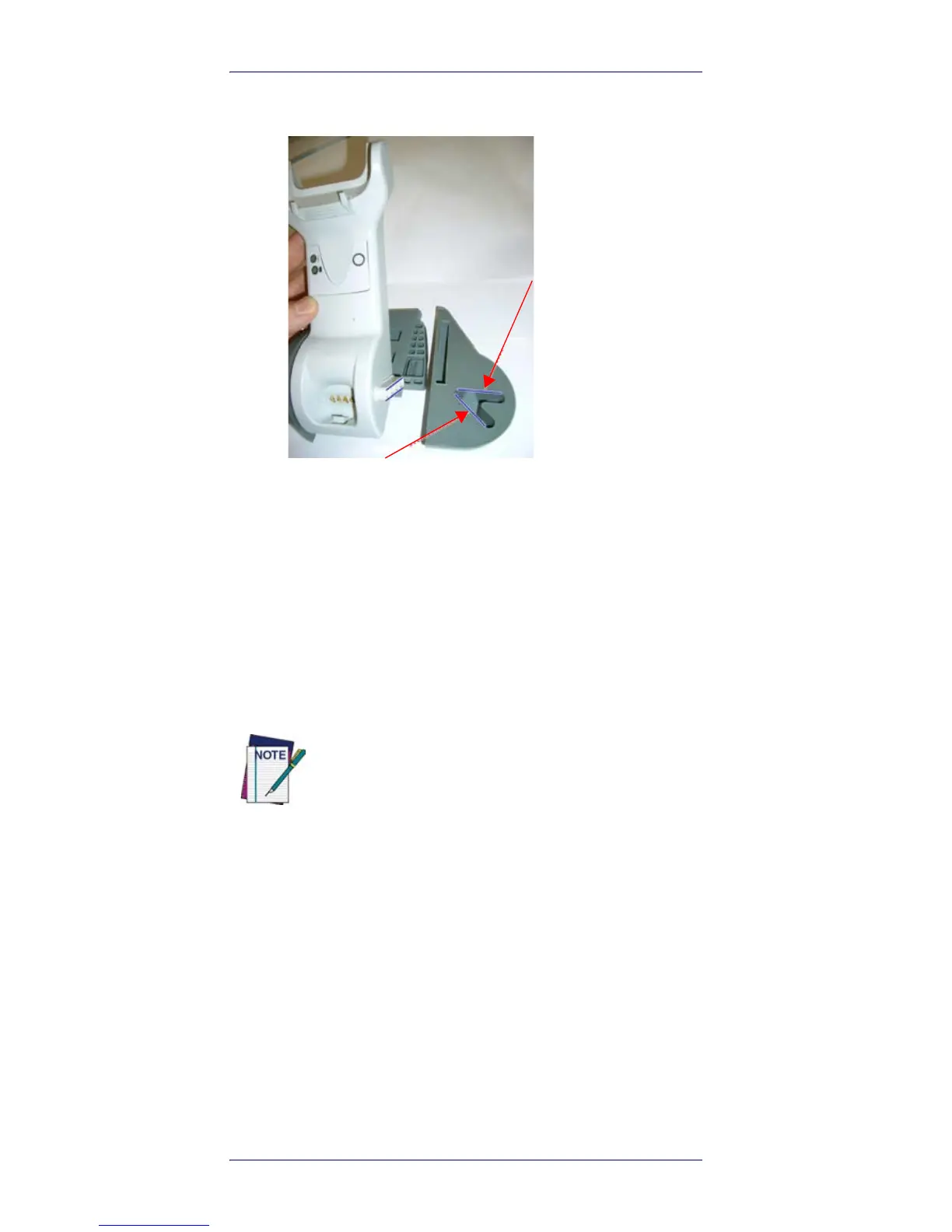

3. The stand can now be repositioned in either horizon-
tal or standing position.
Connecting the Base Station
Figure 1 on page 5 shows how to connect the Base Station to a
terminal, PC or other host device. Turn off the host before
connection and consult the manual for that equipment (if
necessary) before proceeding. Connect the interface cable be-
fore applying power to the Base Station.
Base Station Connection and Routing: Fully insert the Power Ca-
ble and Interface (I/F) Cable connectors into their respective
ports in the underside of the Base Station (see
Figure 1 ). Then
connect to an AC Adapter, and plug the AC power cord into
the (wall) outlet.
The Gryphon GBT44XX can also be Powered by the Terminal.
When powered by the Terminal, the battery charger is
automatically set as Slow charge.
For some specific interfaces or hosts or lengths of cable, the
use of an external power supply may be recommended for
full recharging capability (see
Technical Specifications
on page 34
for more details).
Horizontal
Standing

Datalogic Gryphon I GBT4400 Specifications

General

Wavelength	650 nm
Scanner type	2D
Yaw reading angle	-40 - 40 °
Tilt reading angle	0 - 360 °
Light levels (direct sunlight)	0 - 100000 lx
Input voltage	4.5 - 14.0 V
Battery capacity	2100 mAh
Number of reads per charge	60000
Bluetooth	Yes
Dimensions (WxDxH)	71 x 100 x 181 mm
Certification	China RoHS, EU RoHS, IEC 60825 Class 2
Product color	Black
LED indicators	Charging, Power
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Weight	245 g
