Using the Gryphon™ I GBT4400
14 Gryphon™ I GBT4400
Using the Gryphon™ I GBT4400
The Gryphon™ I GBT4400 normally functions by capturing
and decoding codes. The reader is equipped with an internal
motion-sensing function which activates the aiming system on
device motion. The intelligent aiming system indicates the
field of view which should be positioned over the bar code:
Aiming System

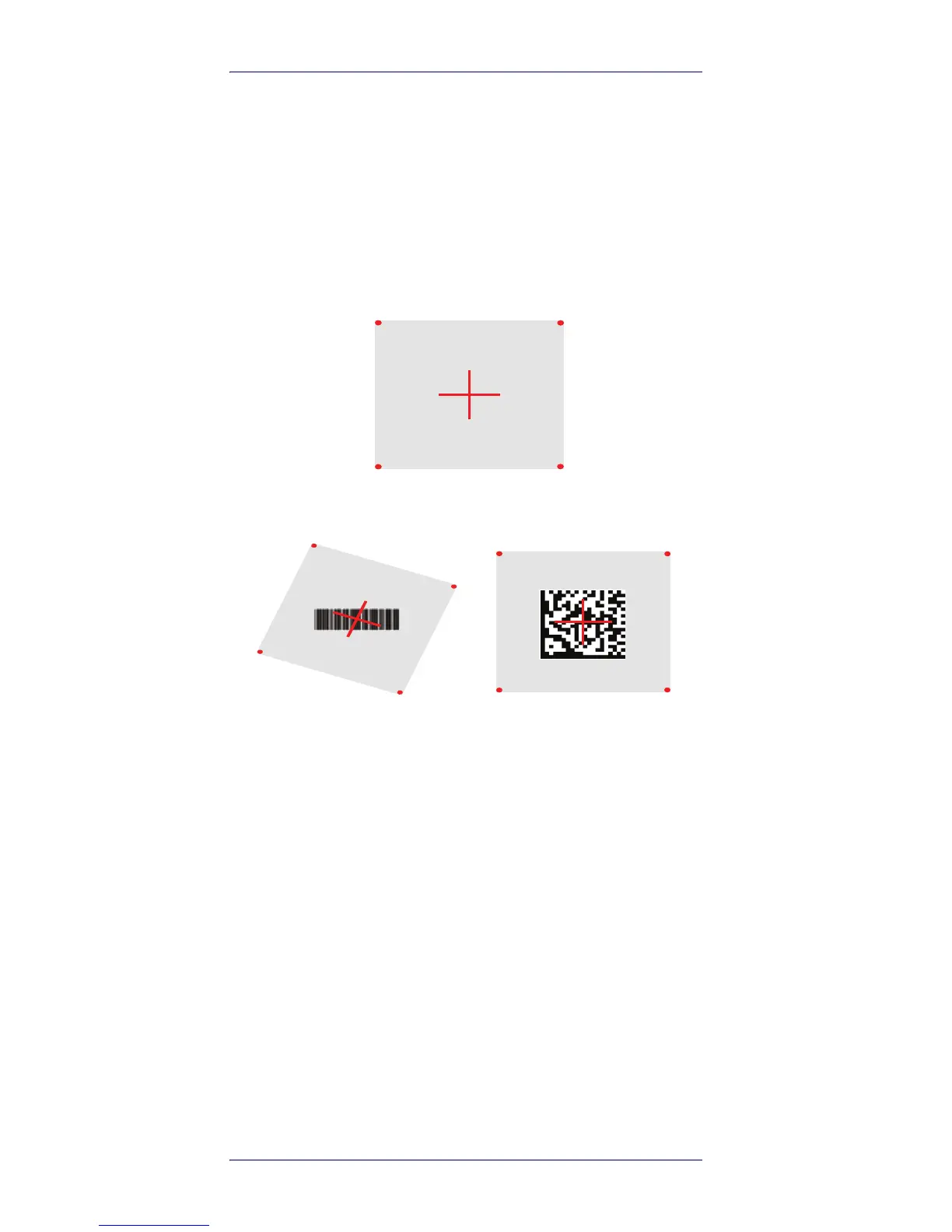

Relative Size and Location of Aiming System Pattern
A red beam illuminates the label. The field of view indicated
by the aiming system will be smaller when the reader is closer
to the bar code and larger when it is farther from the code.
Symbologies with smaller bars or elements (mil size) should be
read closer to the unit. Symbologies with larger bars or ele-
ments (mil size) should be read farther from the unit.
If the aiming system is centered and the entire bar code is
within the aiming field, you will get a good read. Successful
reading is signaled by an audible tone plus a good-read green
spot LED indicator.
Reference the Gryphon I GBT4400 Product Reference Guide
(PRG) or Datalogic Aladdin configuration software (both
available on the Datalogic website) for more information
about this feature and other programmable settings.
Linear bar code
2D Matrix symbol
