Datalogic Gryphon I GBT4400 Quick Reference Guide

Linking the Reader
Quick Reference Guide 15
Linking the Reader
Link Datalogic RF Devices to Base
For RF devices, before configuring the interface it is necessary
to link the handheld with the base.
To link the handheld and the base, either press the trigger to
wake it, or simply mount into the base to wake up for opera-
tion. If the reader was previously linked to another base, you
must first scan the
Unlink bar code before re-linking to the new
base.
Link Scanner to Bluetooth Adapter
1. Install any drivers provided with the Bluetooth
adapter.
2. Scan the Enable RF Link to Server label below to make the
scanner visible to the host computer.
3. Use the host computer’s Bluetooth manager to “Dis-
cover new devices” and select "Datalogic Scanner." If
you receive an error message, it may be necessary to
disable security on the device.
4. Use an RS-232 terminal program to see incoming
data on the port designated by the computer's Blue-
tooth manager.
The Gryphon I GBT4400 can be set up to require a PIN code
when connecting. If you want to set up a PIN, or when add-
ing new equipment to a system that uses a custom security
PIN, please see the PRG for information.

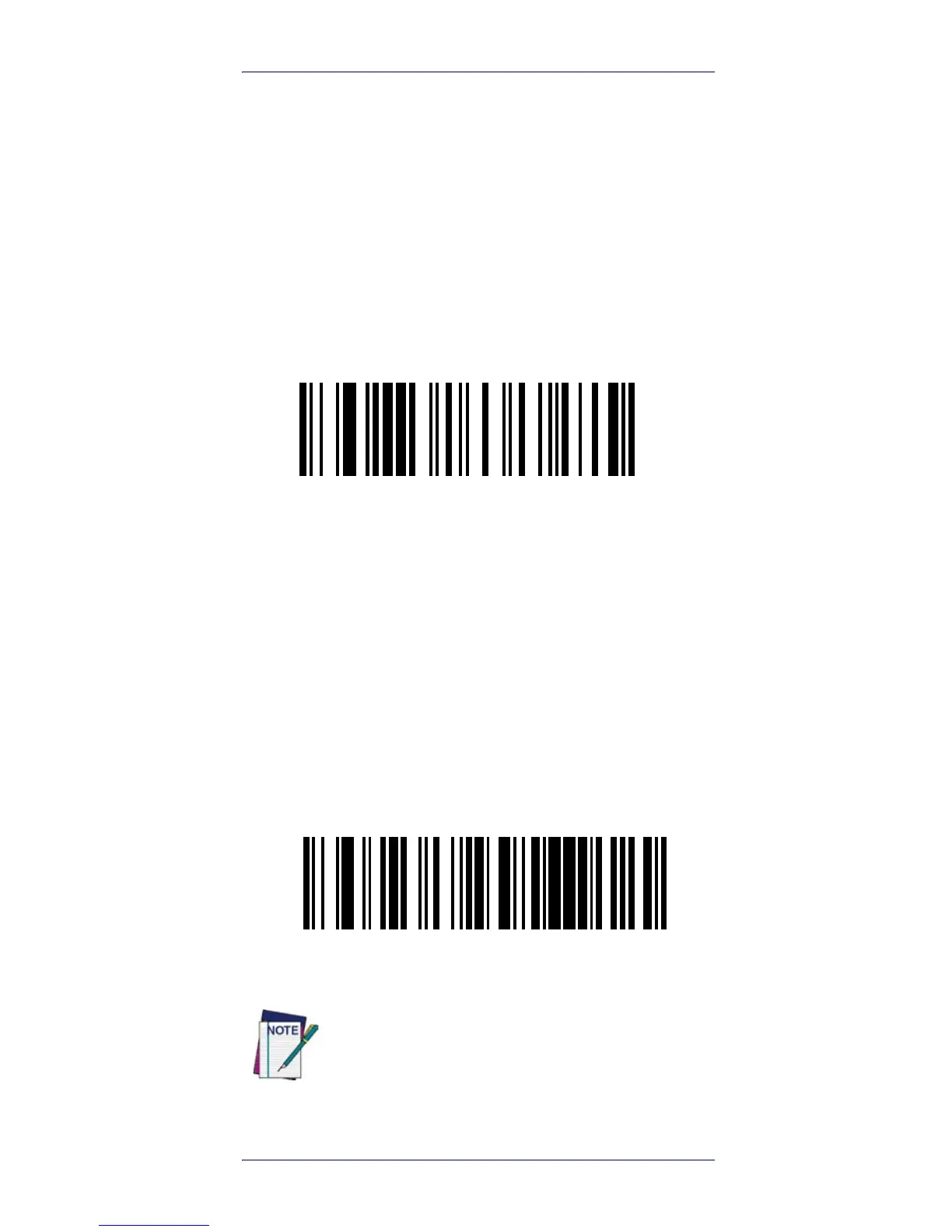

Unlink
Enable RF Link to Server

Datalogic Gryphon I GBT4400 Specifications

General

Wavelength	650 nm
Scanner type	2D
Yaw reading angle	-40 - 40 °
Tilt reading angle	0 - 360 °
Light levels (direct sunlight)	0 - 100000 lx
Input voltage	4.5 - 14.0 V
Battery capacity	2100 mAh
Number of reads per charge	60000
Bluetooth	Yes
Dimensions (WxDxH)	71 x 100 x 181 mm
Certification	China RoHS, EU RoHS, IEC 60825 Class 2
Product color	Black
LED indicators	Charging, Power
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Weight	245 g
