Datalogic Gryphon I GBT4400 Quick Reference Guide

Connecting the Base Station
Quick Reference Guide 7
Power Connection: Plug the AC Adapter into an approved AC
wall socket with the cable facing downwards (as shown in
Fig-
ure 1
) to prevent undue strain on the socket.
Disconnecting the Cable: To detach the cable, insert a paper clip
or similar object into the hole on the base, as shown.

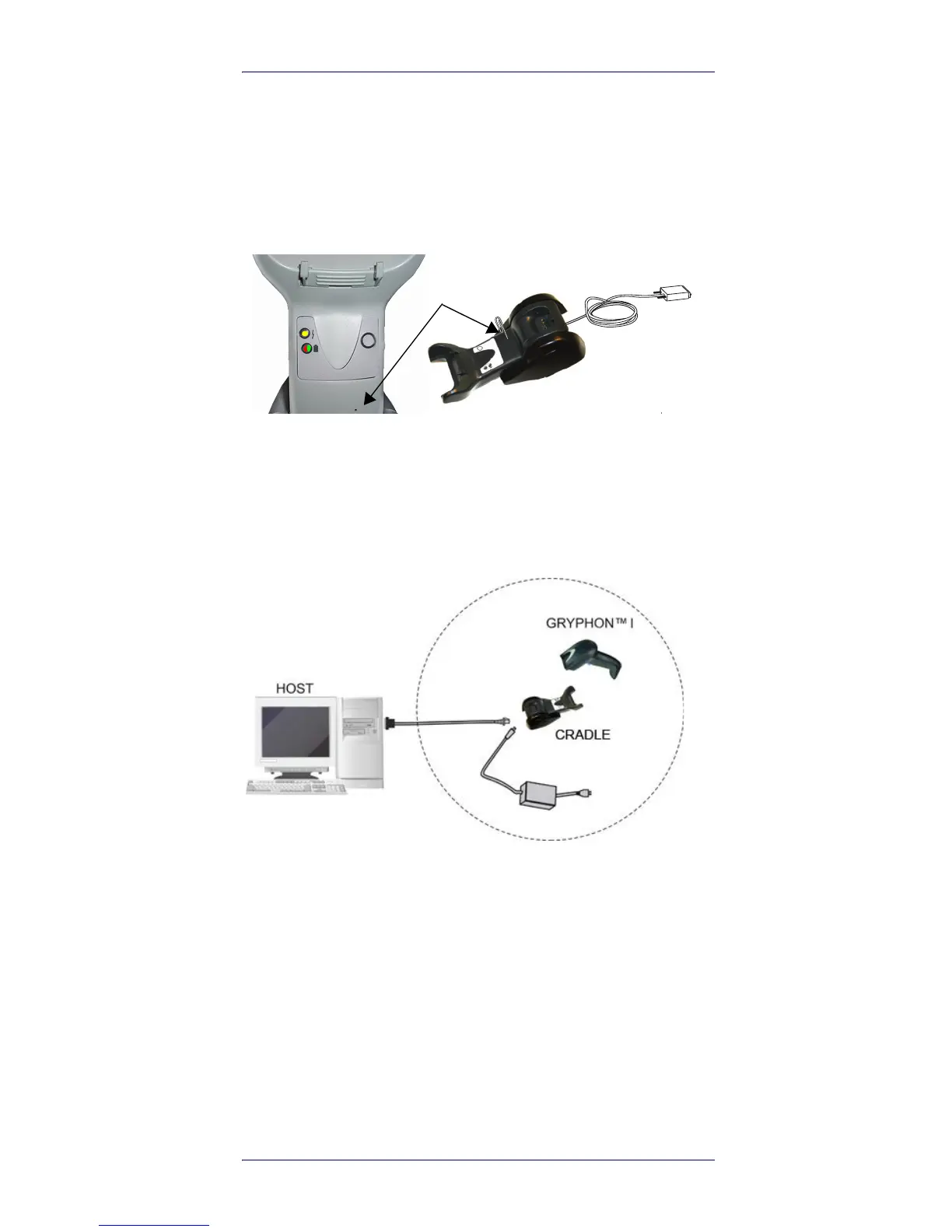

Figure 5. Disconnecting the Cable
System and Network Layout
Typical Setup with Cradle and Host
Figure 6. Reader Layout
Insert
Paper Clip

Datalogic Gryphon I GBT4400 Specifications

General

Wavelength	650 nm
Scanner type	2D
Yaw reading angle	-40 - 40 °
Tilt reading angle	0 - 360 °
Light levels (direct sunlight)	0 - 100000 lx
Input voltage	4.5 - 14.0 V
Battery capacity	2100 mAh
Number of reads per charge	60000
Bluetooth	Yes
Dimensions (WxDxH)	71 x 100 x 181 mm
Certification	China RoHS, EU RoHS, IEC 60825 Class 2
Product color	Black
LED indicators	Charging, Power
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Weight	245 g
