Datalogic Gryphon I GBT4400 Quick Reference Guide

Connecting the Base Station
Quick Reference Guide 5

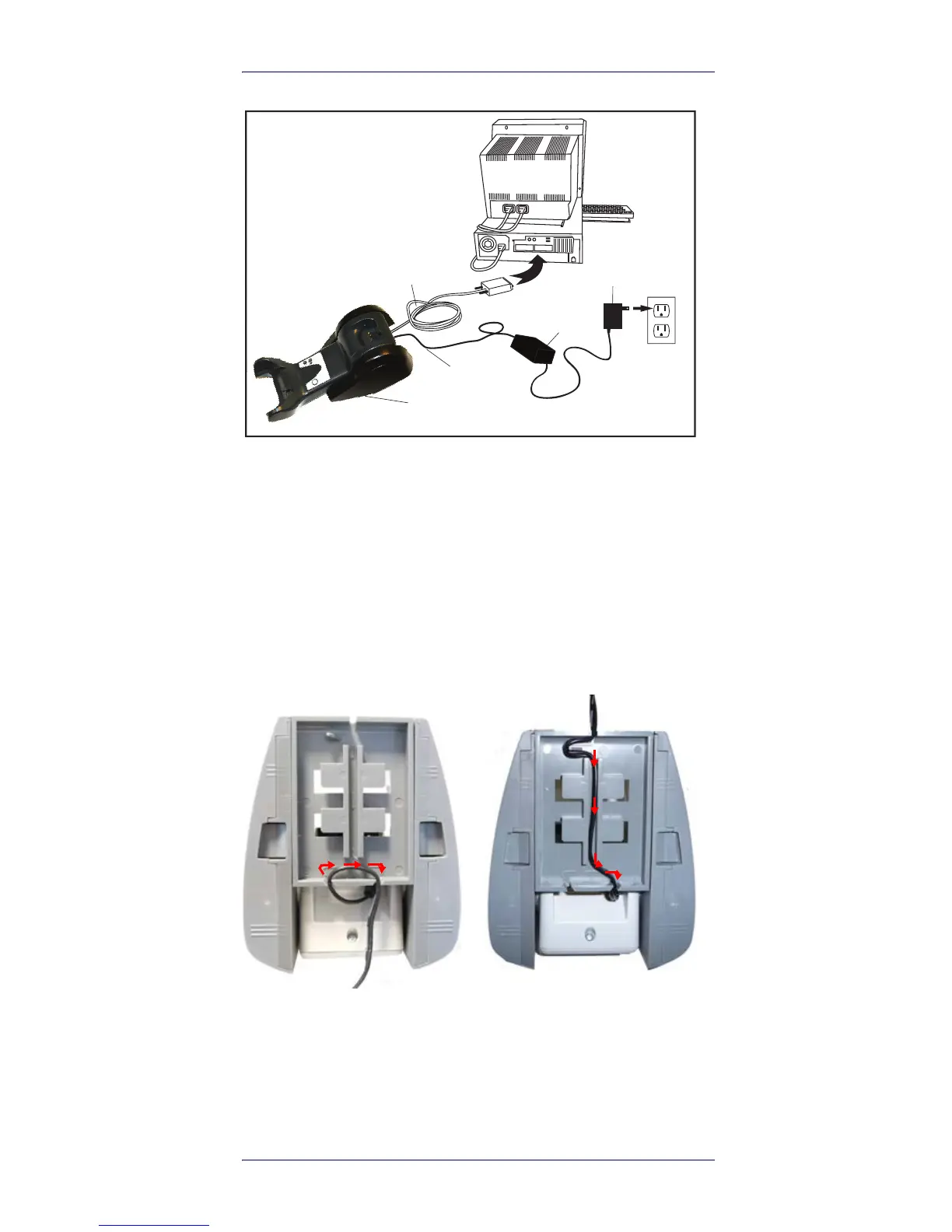

Figure 1. Connecting the Base Station
Securing the DC Power Cord (Optional)
The DC power cord for the adapter can be secured to the bot-
tom of the base in order to maximize the mechanical retention
of the cable itself. The routing of the power cord can be
changed to accommodate base station positioning: horizontal,
stand or wall mount. The cables can be looped around to the
front of the Base Station, or fed directly out the back of the
Base Station, as shown in
Figure 2 .
Figure 2. Options for routing the DC cord
Please refer to the arrows depicted on the bottom of the base
when placing the cables, detailed in
Figure 3 .
Base
Station
I/F Cable
AC/DC
Adapter
DC Power
Cord
Wall plug
Connector

Datalogic Gryphon I GBT4400 Specifications

General

Wavelength	650 nm
Scanner type	2D
Yaw reading angle	-40 - 40 °
Tilt reading angle	0 - 360 °
Light levels (direct sunlight)	0 - 100000 lx
Input voltage	4.5 - 14.0 V
Battery capacity	2100 mAh
Number of reads per charge	60000
Bluetooth	Yes
Dimensions (WxDxH)	71 x 100 x 181 mm
Certification	China RoHS, EU RoHS, IEC 60825 Class 2
Product color	Black
LED indicators	Charging, Power
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Weight	245 g
