Datalogic Magellan 2300HS Product Reference Guide

Installation: Model 2300HS
Product Reference Guide 2-7

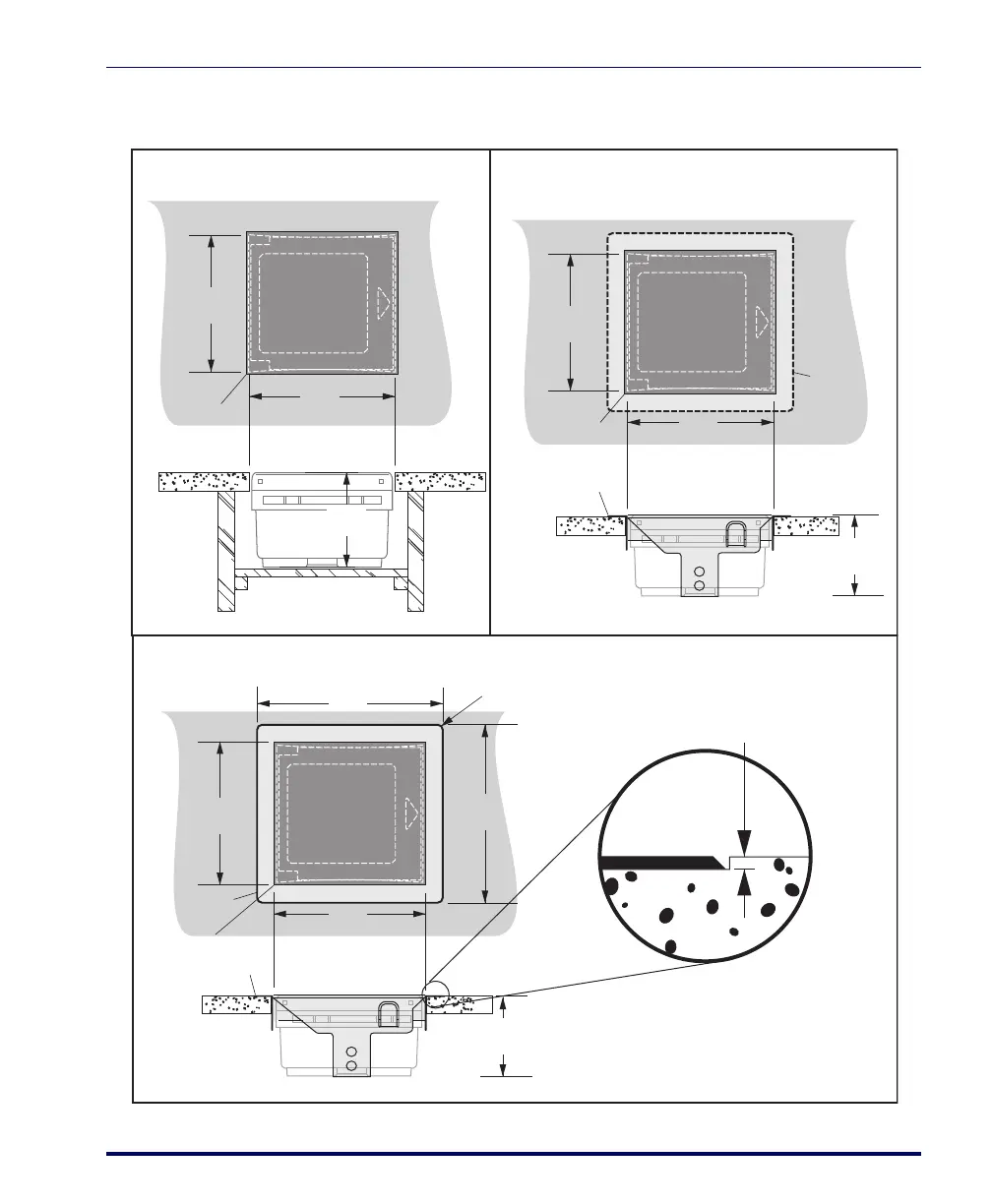

Figure 2-3. Countertop Modification Options
6.07"
(154.2mm)
6.07"
(154.2mm)
3.42"
(86.9mm)
Shelf Depth
a. Shelf installation b. Adapter w/flange above counter
c. Adapter w/flange recessed to be flush with counter
6.26"
(159mm)
3.47"
(88.1mm)
Rim rests on top of counter
6.26"
(159mm)
Rim is flush with counter
Cut hole
6.26"
(159mm)
3.52"
(89.4mm)
6.26"
(159mm)
7.91"
(201mm)
Routing is 0.050" (1.27mm) deep
Radius 0.21" (5.3mm) x4
Cut hole
Rim of
adapter
Cut hole
Routed ledge
for rim
7.40"
(188mm)

Datalogic Magellan 2300HS Specifications

General

Scanner type	1D
Decoding standards	GS1 DataBar
Input voltage	90 - 265 V
Power requirements	47-63 Hz
Power consumption (standby)	2.5 W
Dimensions (WxDxH)	152 x 152 x 86 mm
Certification	RoHS
Product color	Gray
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	1100 g
