Datalogic Magellan 2300HS Product Reference Guide

Site Preparation and Installation
2-8 Magellan
TM
2200VS and 2300HS

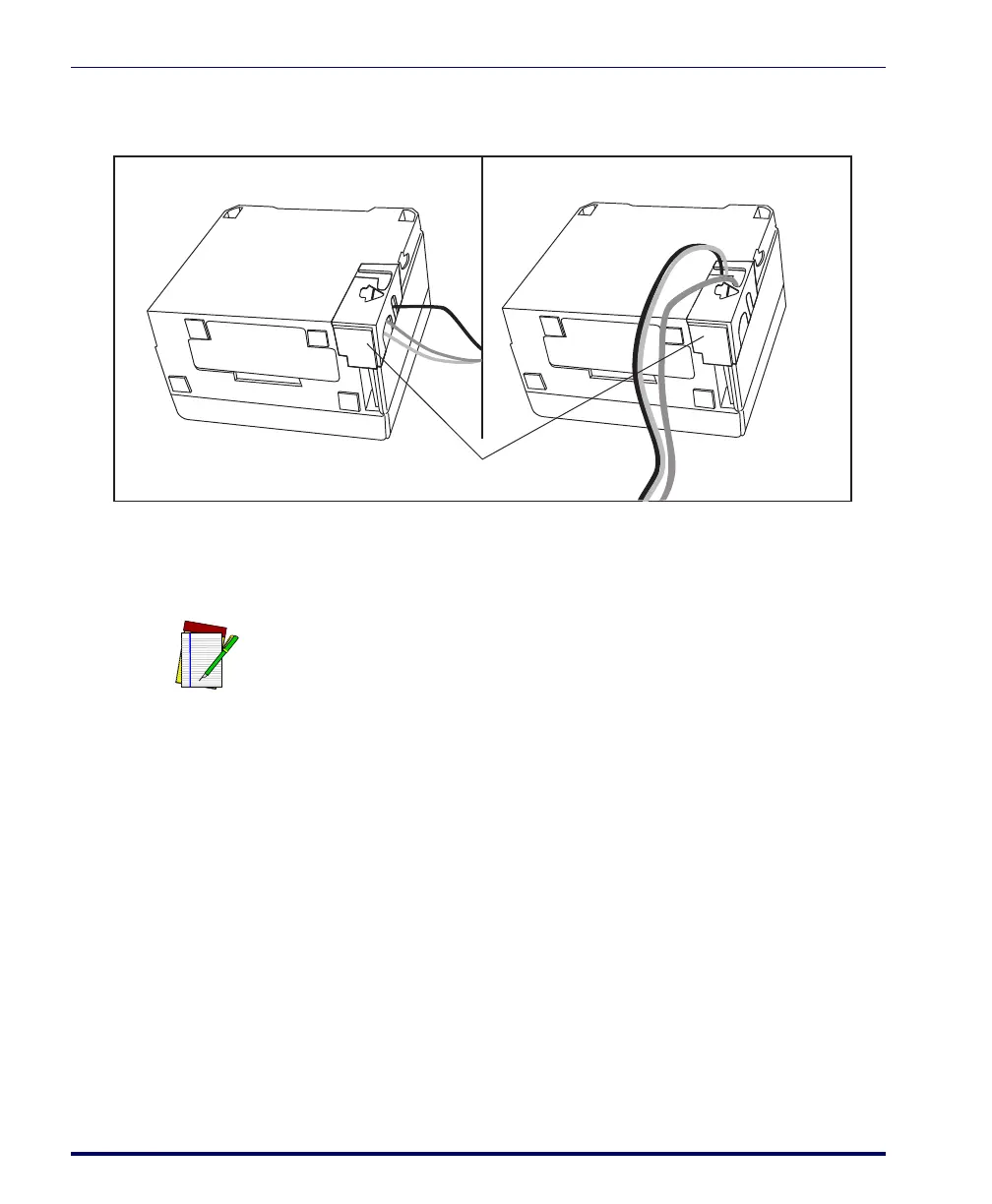

Figure 2-4. Magellan
®
2300HS Cable Routing Options
9. Verify operation by scanning a few known-good bar code labels. The
scanner should now be communicating the bar code data to the
POS terminal.
This completes the installation instructions for this model.
Connector Cover
NOTE
Reference Chapter 4, Problem Isolation if the scanner does not
perform as expected.

Datalogic Magellan 2300HS Specifications

General

Scanner type	1D
Decoding standards	GS1 DataBar
Input voltage	90 - 265 V
Power requirements	47-63 Hz
Power consumption (standby)	2.5 W
Dimensions (WxDxH)	152 x 152 x 86 mm
Certification	RoHS
Product color	Gray
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	1100 g
