Datalogic Matrix 210

PROGRAMMING STRINGS
17
3
HOST DEVICE
<ESC> ( <B0
H
> ADDR <ESC> [ C ) <ESC>
(Enter Host Mode)
<ESC> H <CR><LF>
<ESC> ( <B0
H
> ADDR <ESC> [ B ) <ESC>
(Enter Programming Mode)
<ESC> Q <CR><LF>
.
.
<ESC> ( <B0
H
> ADDR <ESC> I A ! ) <ESC> or
<ESC> ( <B0
H
> ADDR <ESC> I A <space> ) <ESC>
(Exit Programming Mode)
<ESC> K <CR><LF> or
<ESC> W 1 <CR><LF>
<ESC> X <CR><LF>
<ESC> ( <B0
H
> ADDR <ESC> [ A ) <ESC>
(Exit Host Mode)

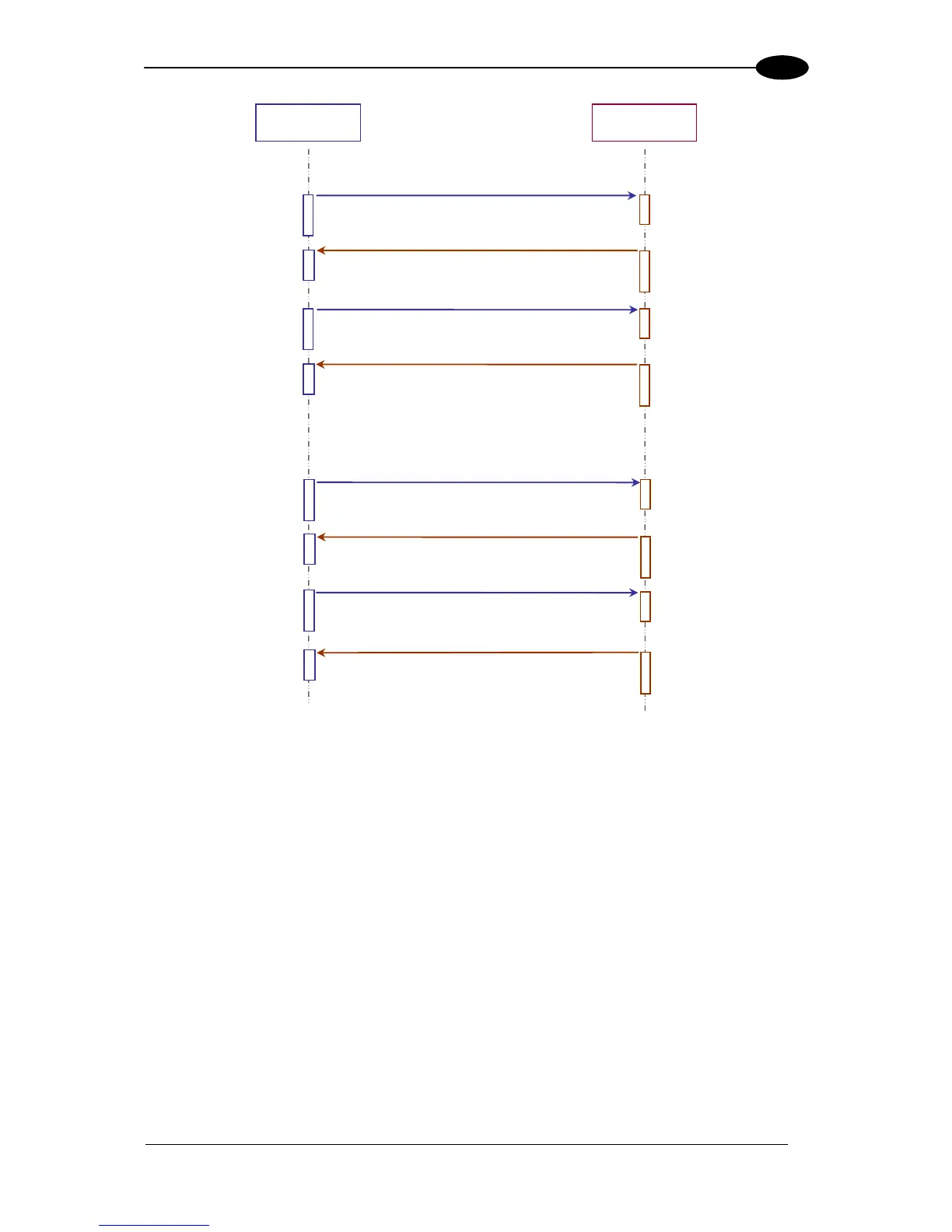

Figure 4 – Connection to Slave #N and Disconnection from Slave #N Device
