HOST MODE PROGRAMMING
18
3
HOST DEVICE
<ESC> ( <B0
H
> ADDR
<ESC> CHR1 CHR2 DATA ) <ESC>
(Set parameter 1)
.
.
<ESC> ( <B0
H
> ADDR <ESC> I A # ) <ESC>
(End of Programming Sequence)
<ESC> K <CR><LF> or
<ESC> W 1 <CR><LF>
<ESC> ( <B0
H
> ADDR <ESC> I A # ) <ESC>
(End of Programming Sequence)
<ESC> K <CR><LF> or
<ESC W 1 <CR><LF>
.
.
<ESC> ( <B0
H
> ADDR
<ESC> CHR1 CHR2 DATA ) <ESC>
(Set parameter 2)

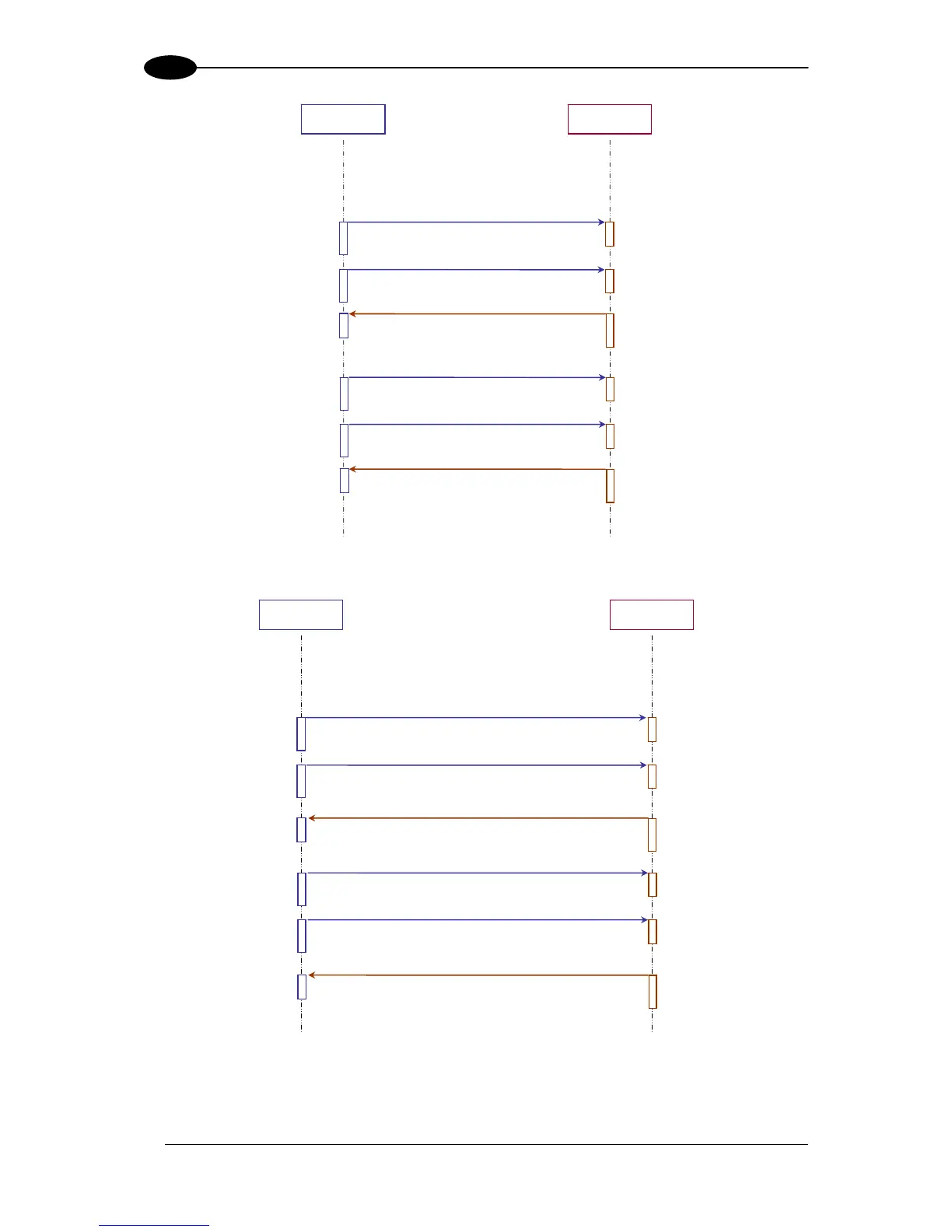

Figure 5 – Slave #N Two-Parameter Programming Session
HOST DEVICE
<ESC> ( <B0
H
> ADDR
<ESC> CHR1 CHR2) <ESC>
(Get parameter 1)
.
.
<ESC> ( <B0
H
> ADDR <ESC> I D # ) <ESC>
(End of Get Sequence)
<ESC> ( <B0
H
> ADDR
<ESC> CHR1 CHR2 DATA <ESC> I A #) <ESC> or
<ESC> W 1 <CR><LF>
<ESC> ( <B0
H
> ADDR <ESC> I D # ) <ESC>
(End of Get Sequence)
<ESC> ( <B0
H
> ADDR
<ESC> CHR1 CHR2 DATA <ESC> I A #) <ESC> or
<ESC W 1 <CR><LF>
.
.
<ESC> ( <B0
H
> ADDR
<ESC> CHR1 CHR2) <ESC>
(Get parameter 2)
Figure 6 – Slave #N Two-Parameter Get Session
