ETHERNET CONNECTION
Use the 3-slot dock full to build a reading system for the collection, decoding and trans-
mission of barcoded data.

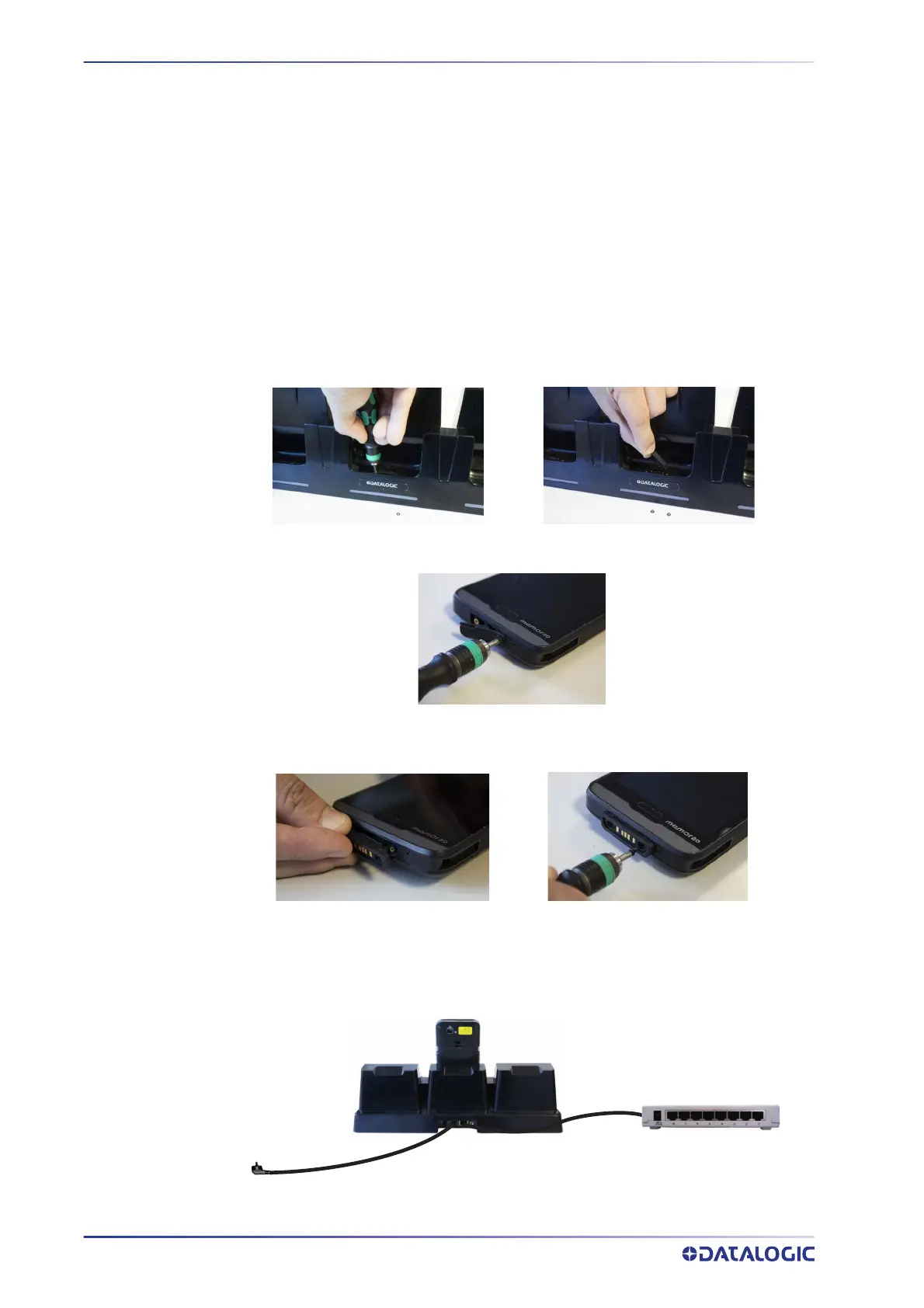

Ethernet Dock Connection
1. Connect the 3-slot dock full to the power supply (available as an accessory, p/n
94ACC0250).
2. Plug a CAT-5 ethernet cable into the ethernet port on the back of the dock.
3. Plug the ethernet cable into the ethernet hub or a port on the host device.
4. Remove the cap from the pogo pins on the dock.
5. Remove the USB rubber cap from the Memor 20
6. Insert the USB/ethernet plug included in the Memor 20’s box and fasten it with
the two provided screws.
7. Turn on the Memor 20.
8. Insert the Memor 20 into the dock.
Memor 20
Ethernet Hub
Power Supply
(P/N 94ACC0250)
3-Slot
Dock Full
CAT-5
Ethernet
Cable
