Datalogic QuickScan QD2131 Quick Reference Guide

Setting Up the Reader
2 QuickScan™ QD2131
Setting Up the Reader
Follow the steps below to connect and get your reader up and
communicating with its host.
1. Connect the Cable to the reader and the Host (see
"Connect/Disconnect Cable to Reader" on page 2 and
"Connect Host Interface" on page 3).
2. Configure the Interface (see "Configuring the Interface"
on page 6).
3. Configure the Reader starting on "Programming" on
page 5 (optional, depends on settings needed).
Connect/Disconnect Cable to Reader

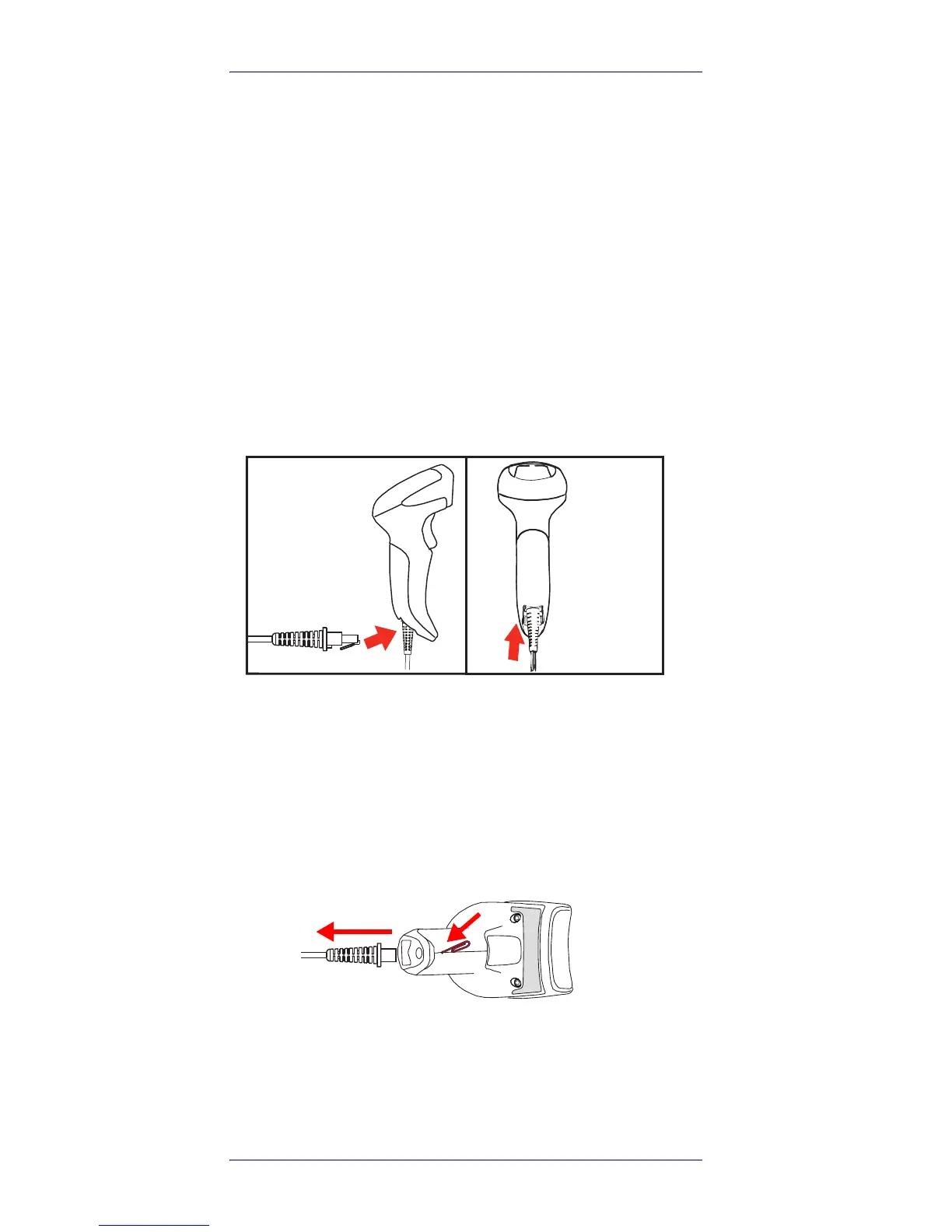

Figure 1. Connecting to the Reader
Host Connection —
The QuickScan imager plugs directly into
the host device as shown in Figure 3. The power can also be
supplied through an external power supply via the Interface
Cable supplied with a power jack.
To disconnect, insert a paper clip into the hole in the front of
the scanner, as shown:
Figure 2. Disconnecting the cable
Side View
Rear
View

Datalogic QuickScan QD2131 Specifications

General

Type	Handheld bar code reader
Wavelength	650 nm
Sensor type	-
Scanner type	1D
Read rate (max)	400 reads/s
Yaw reading angle	-70 - 70 °
Tilt reading angle	-45 - 45 °
Pitch reading angle	-65 - 65 °
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional
2D (matrix & stacked) barcodes supported	Not supported
Product color	Black
International Protection (IP) code	IP41
Input voltage	4.75 - 14 V
Power consumption	140 mA
Power source type	Battery
Standard interfaces	USB
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	91 mm
Width	163 mm
Height	41 mm
Weight	150 g
