Datalogic QuickScan QD2131 Quick Reference Guide

Reading Parameters
Quick Reference Guide 15
Numlock
This option specifies the setting of the Numbers Lock (Num-
lock) key while in keyboard wedge interface. This only applies
to alternate key encoding interfaces. It does not apply to USB
keyboard.
Reading Parameters
Move the reader toward the target and center the aiming pat-
tern and illumination system to capture and decode the
image. See "Using the Quickscan™ QD2131 Reader" on page 4
for more information.
The aiming system will briefly switch off after the acquisition
time, and if no code is decoded will switch on again before the
next acquisition. The illuminator will remain on until the sym-
bol is decoded.
As you read code symbols, adjust the distance at which you
are holding the reader.

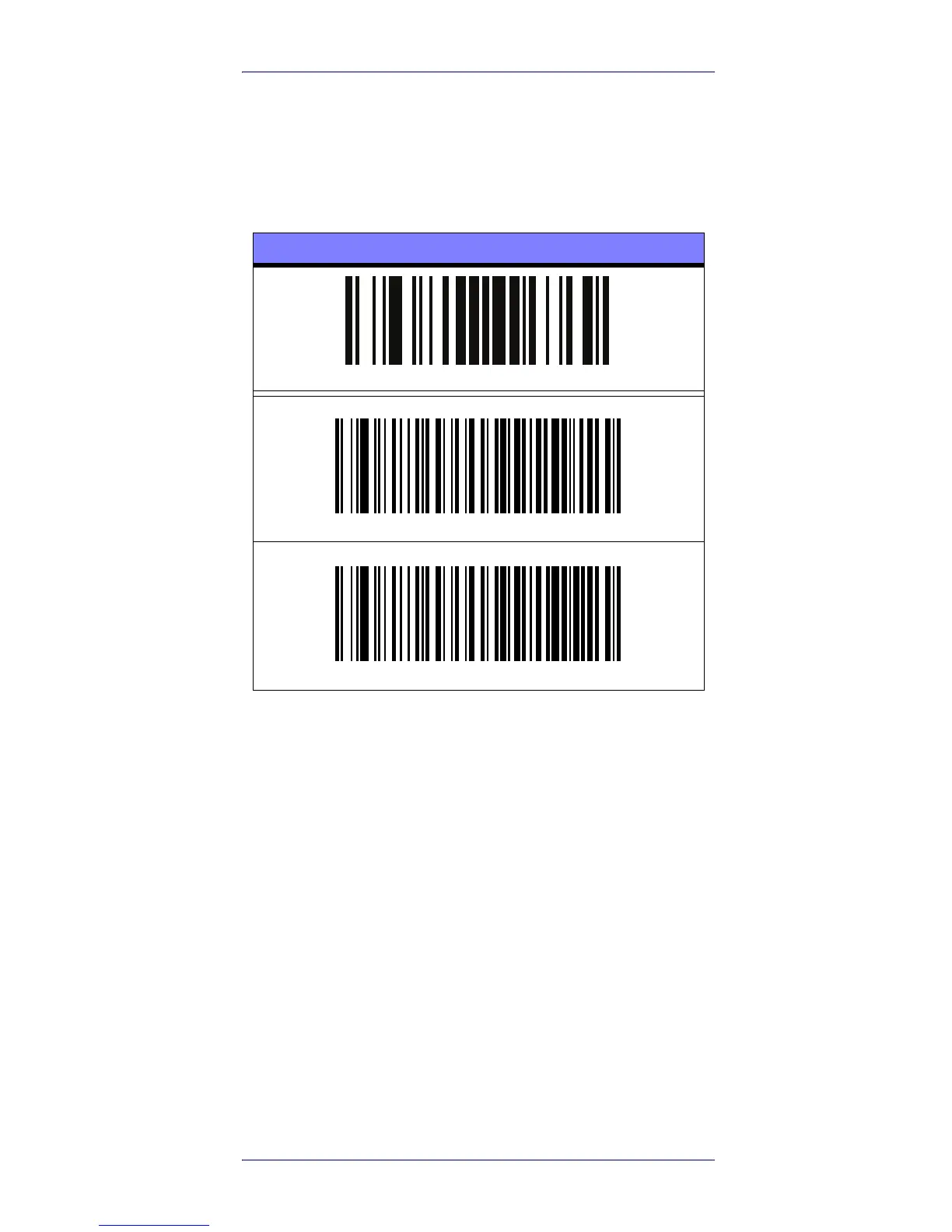

NUMLOCK
ENTER/EXIT PROGRAMMING MODE
Numlock = Numlock key unchanged
Numlock = Numlock key toggled

Datalogic QuickScan QD2131 Specifications

General

Type	Handheld bar code reader
Wavelength	650 nm
Sensor type	-
Scanner type	1D
Read rate (max)	400 reads/s
Yaw reading angle	-70 - 70 °
Tilt reading angle	-45 - 45 °
Pitch reading angle	-65 - 65 °
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional
2D (matrix & stacked) barcodes supported	Not supported
Product color	Black
International Protection (IP) code	IP41
Input voltage	4.75 - 14 V
Power consumption	140 mA
Power source type	Battery
Standard interfaces	USB
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	91 mm
Width	163 mm
Height	41 mm
Weight	150 g
