2.2.3 Emitter and Receiver Orientation
The two units shall be assembled parallel each other, with the beams arranged at right angles with the emission
and receiving surface, and with the connectors pointing to the same direction.

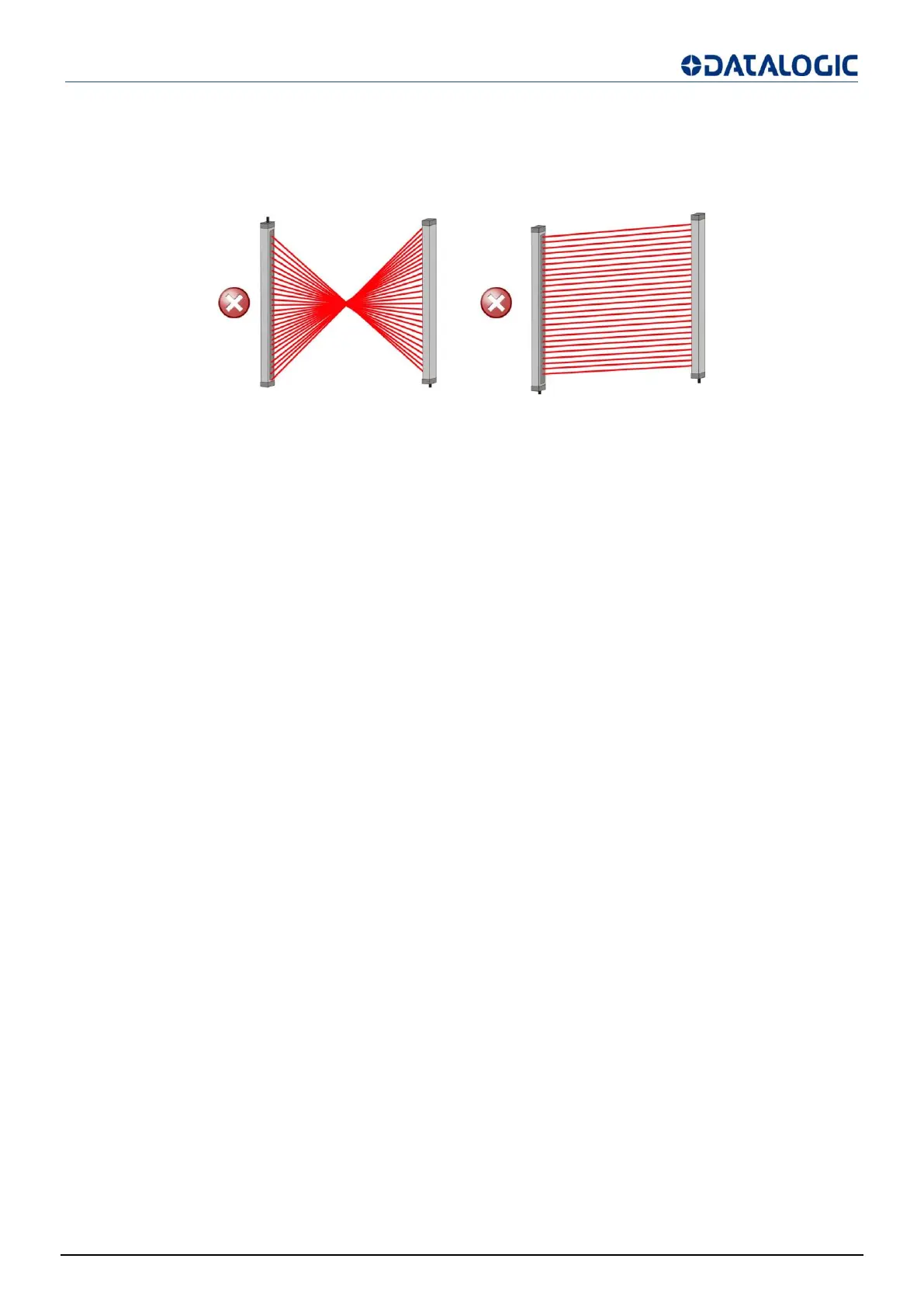

The configurations shown in the figure must be avoided:
Fig 18 - Wrong light curtain TX-RX orientations
